Pinout Values and Diagnostic Parameters

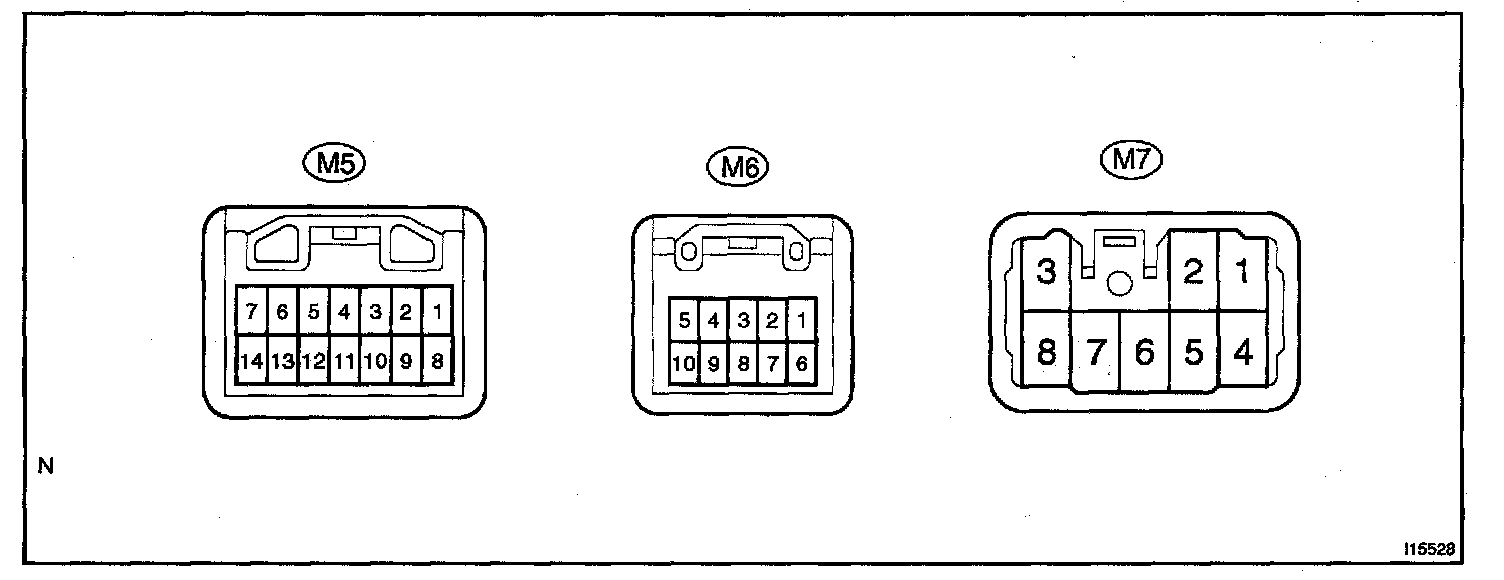

Terminals Of ECU - Connector View:

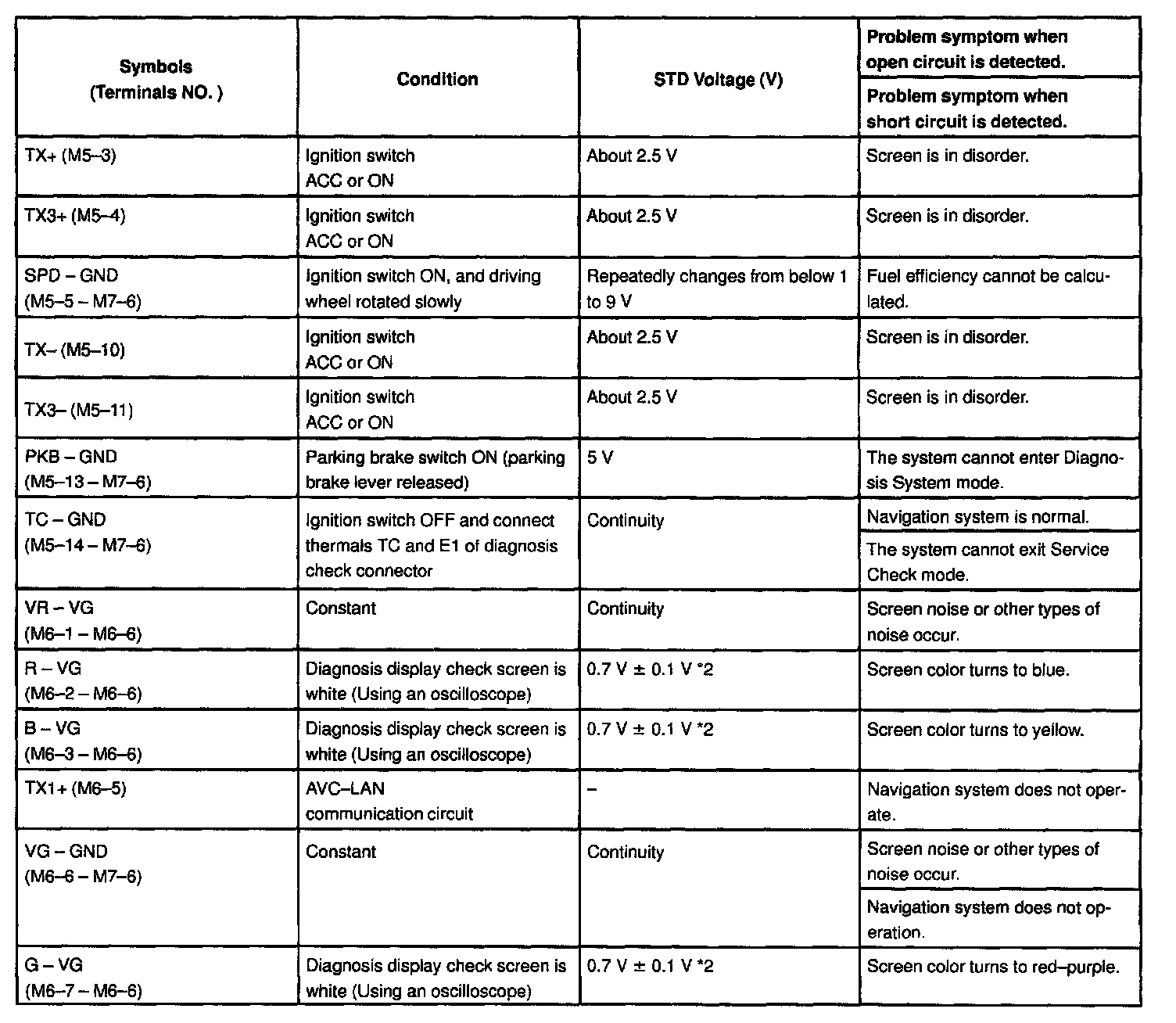

Terminals Of ECU - Pinouts (Part 1):

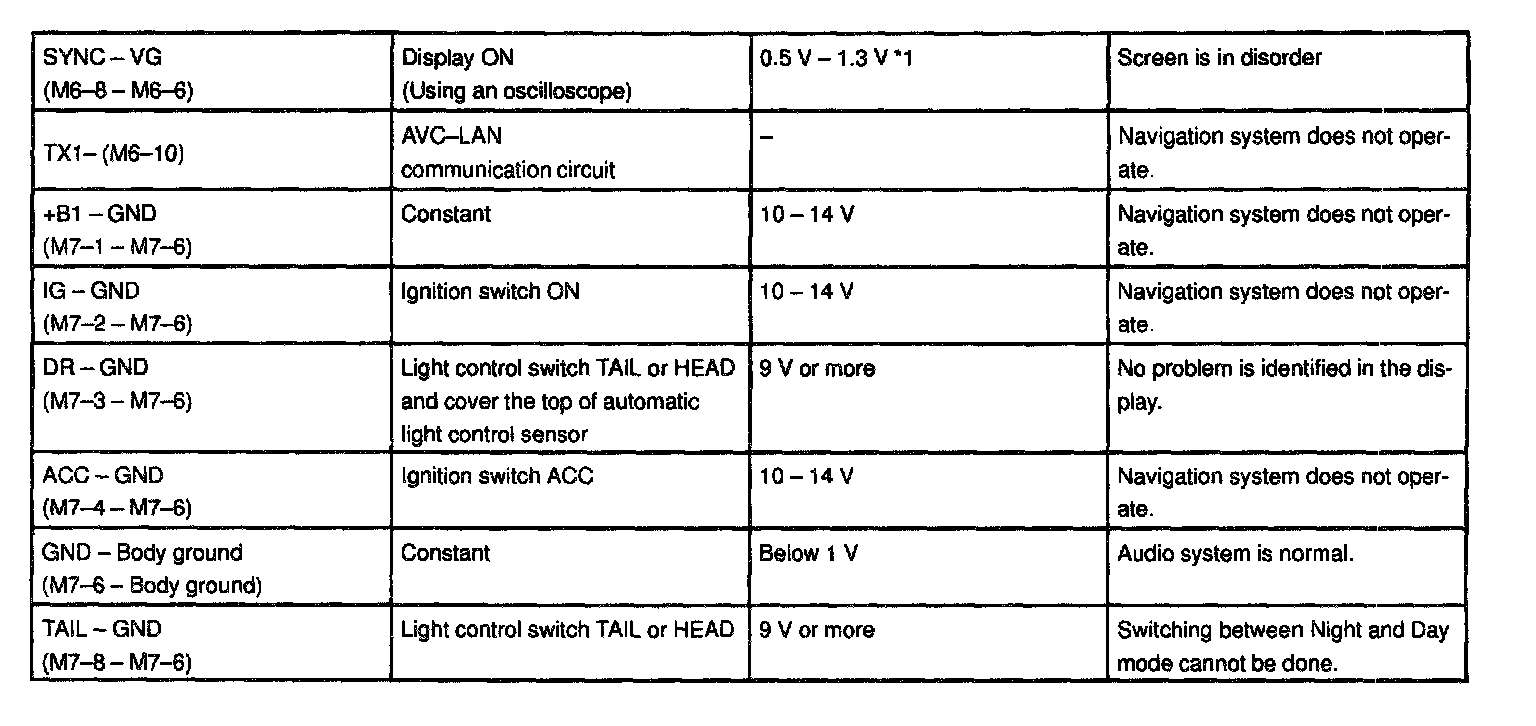

Terminals Of ECU - Pinouts (Part 2):

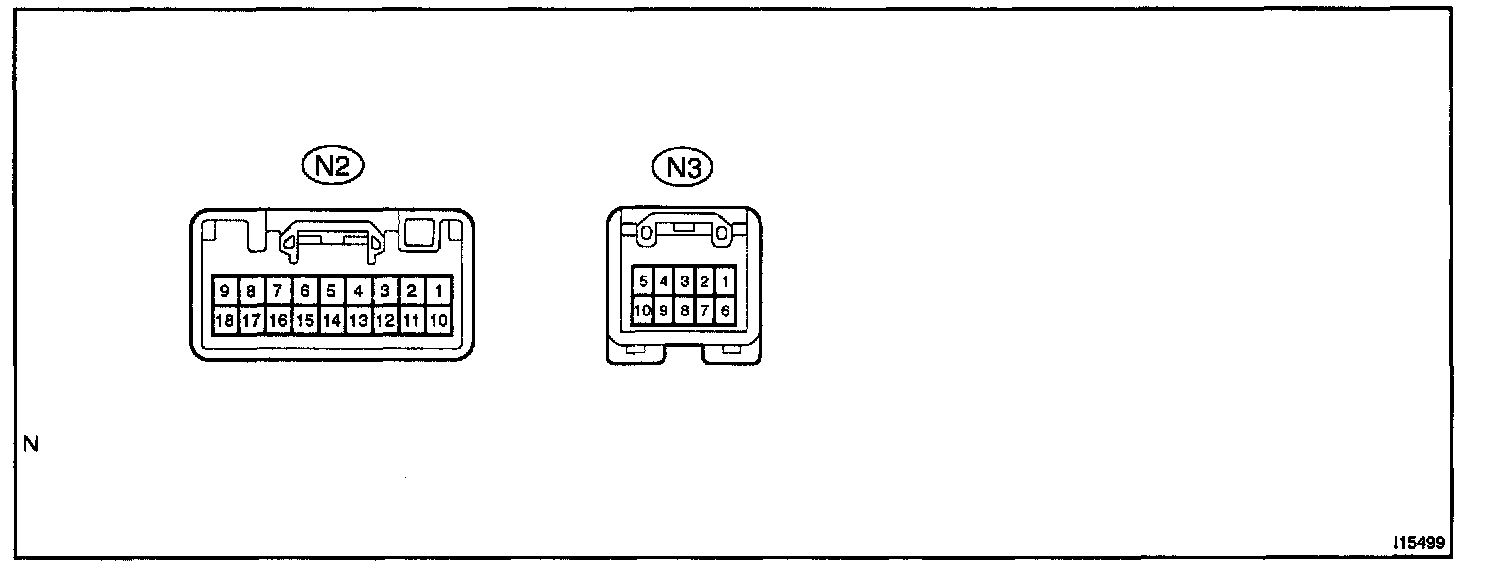

Navigation ECU - Connector View:

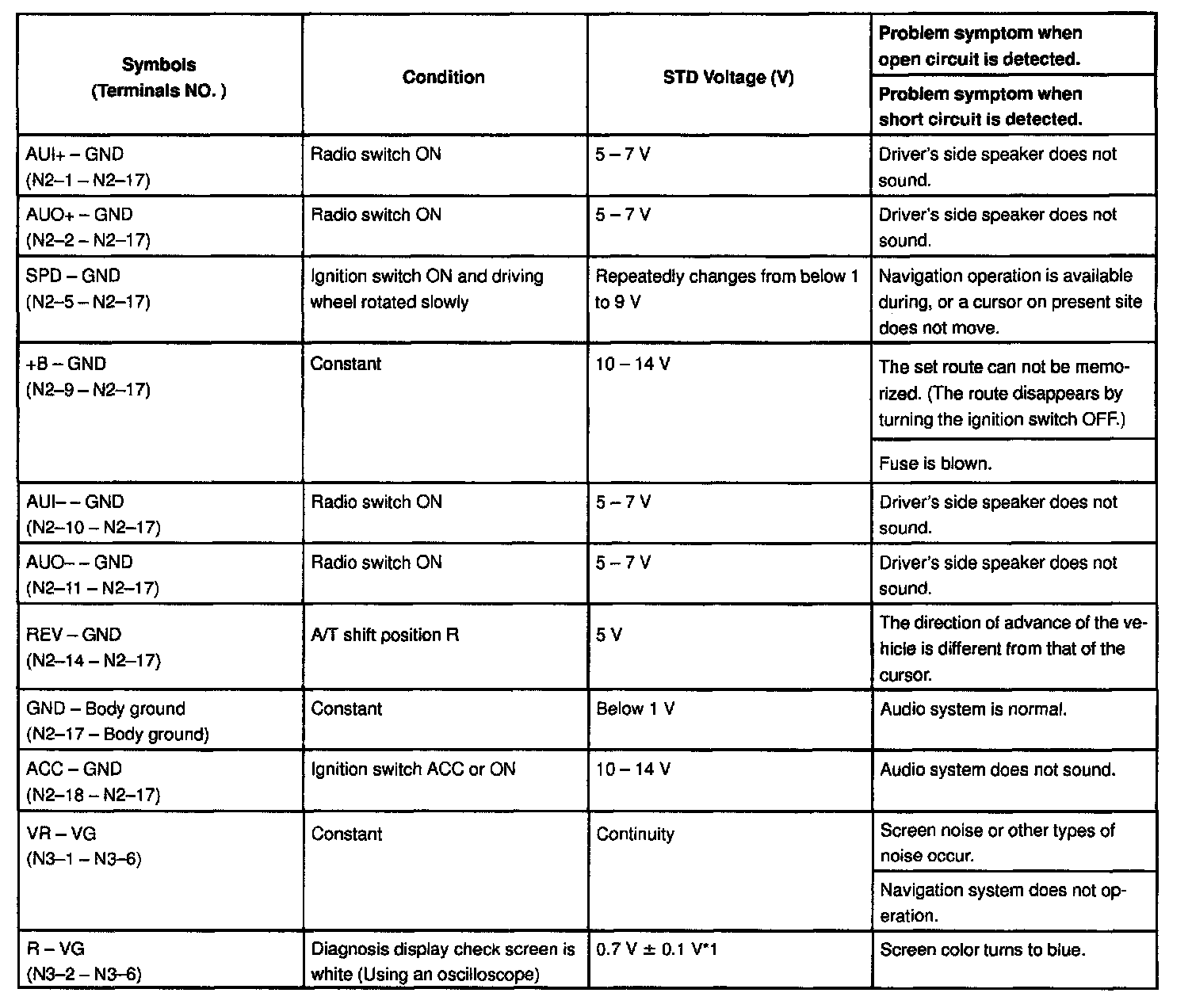

Navigation ECU - Pinouts (Part 1):

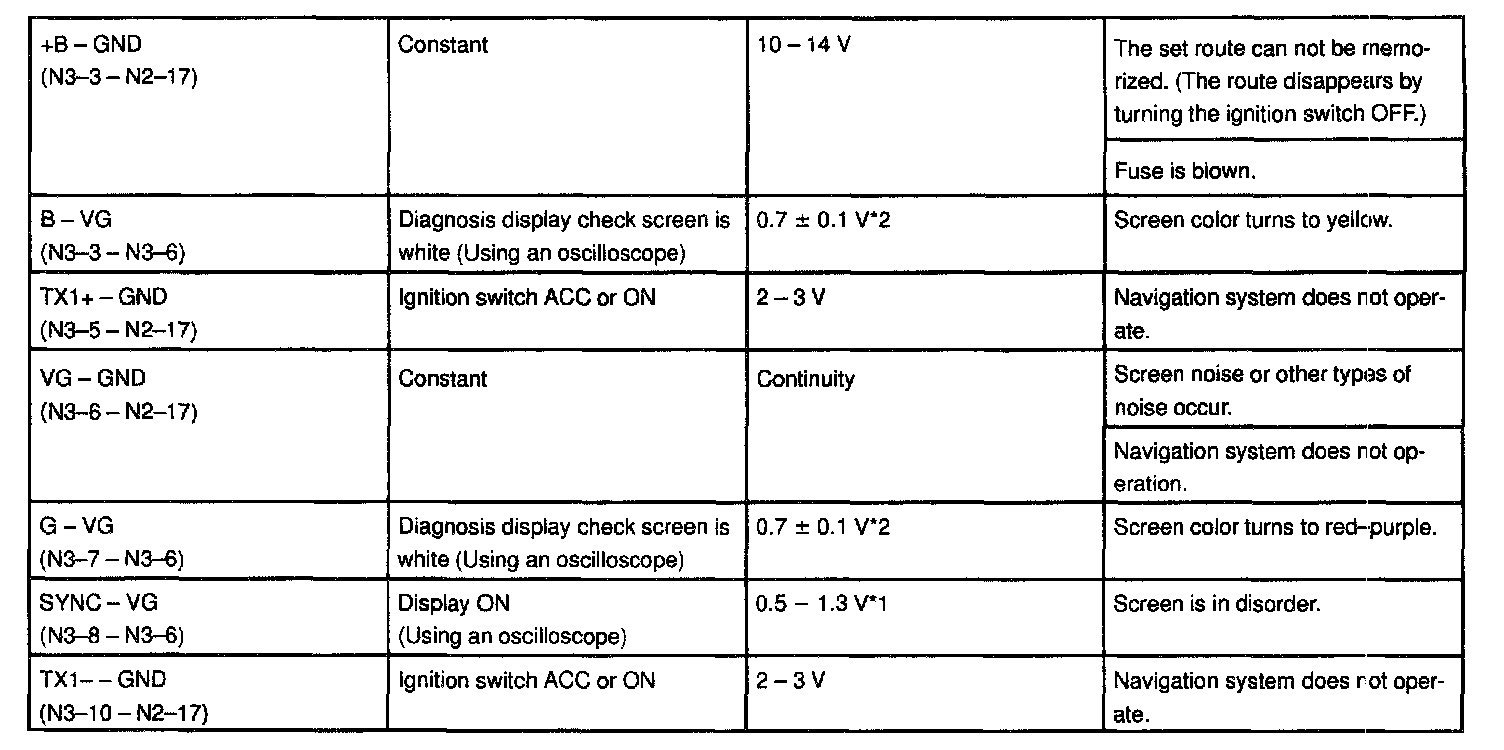

Navigation ECU - Pinouts (Part 2):

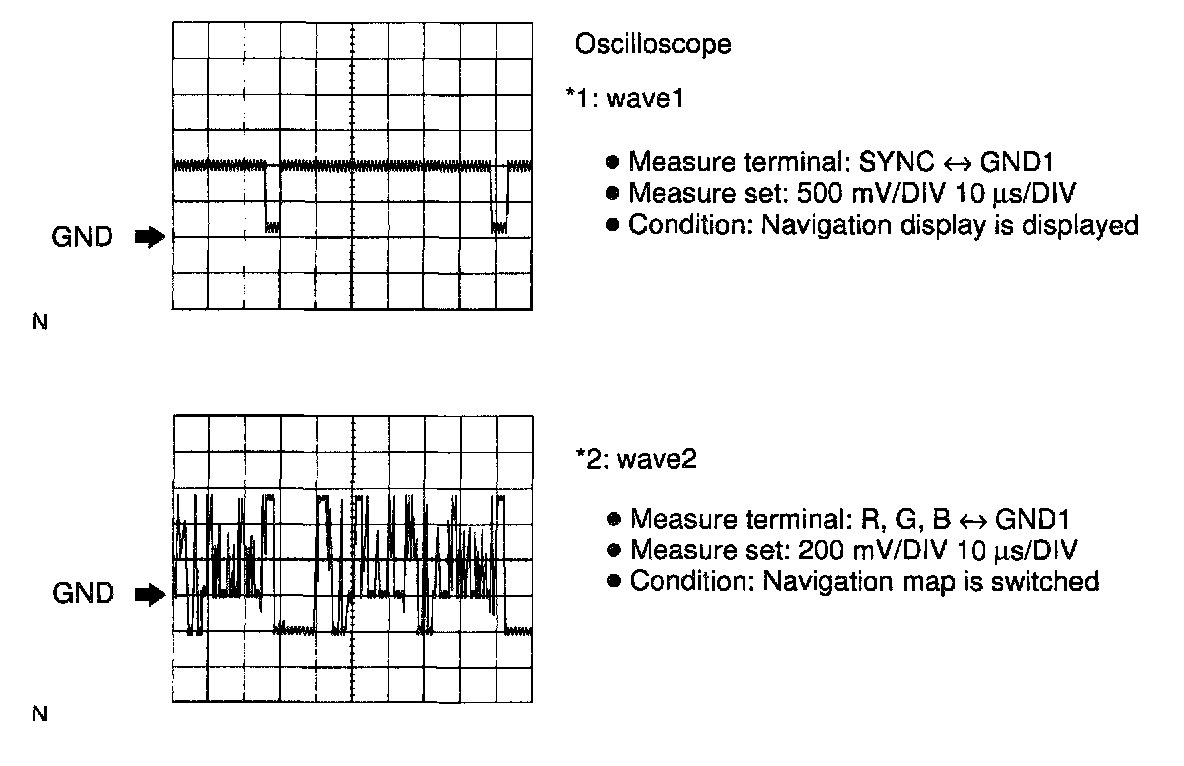

Navigation ECU - Oscilloscope:
