Hybrid Battery Control System

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The battery ECU inputs signals from a current sensor in the system main relay and controls the output current.

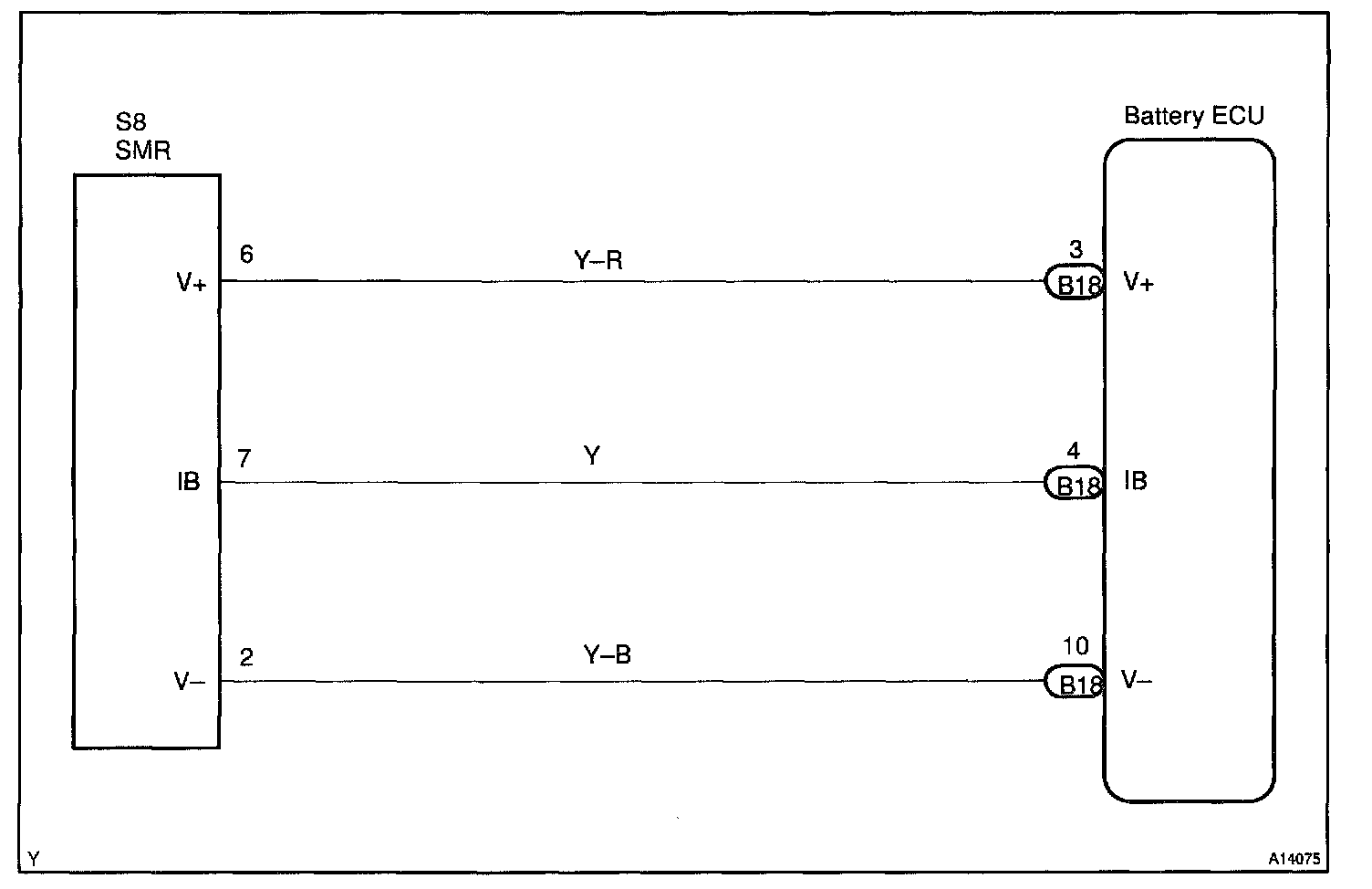

Wiring Diagram:

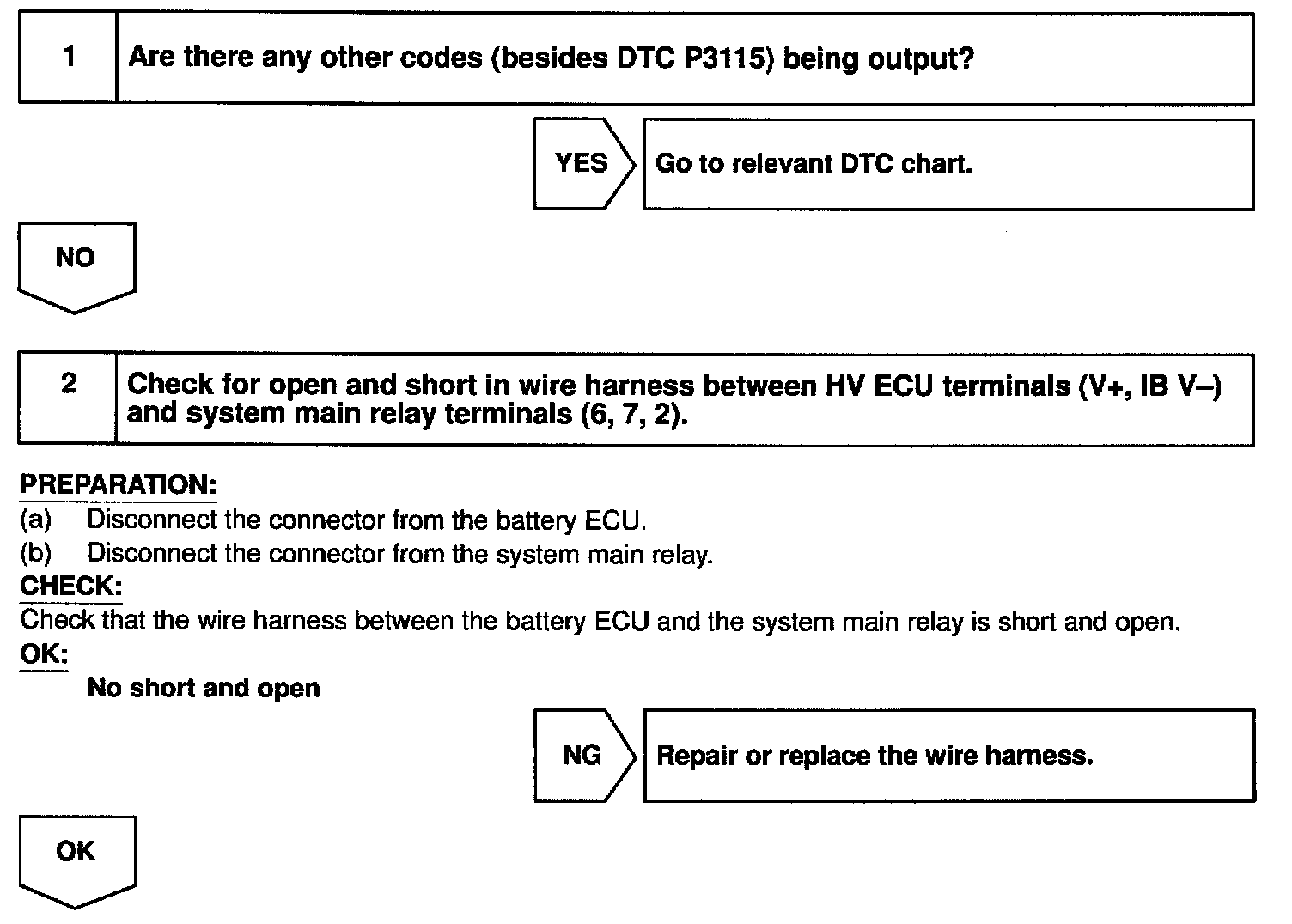

Steps 1 - 2:

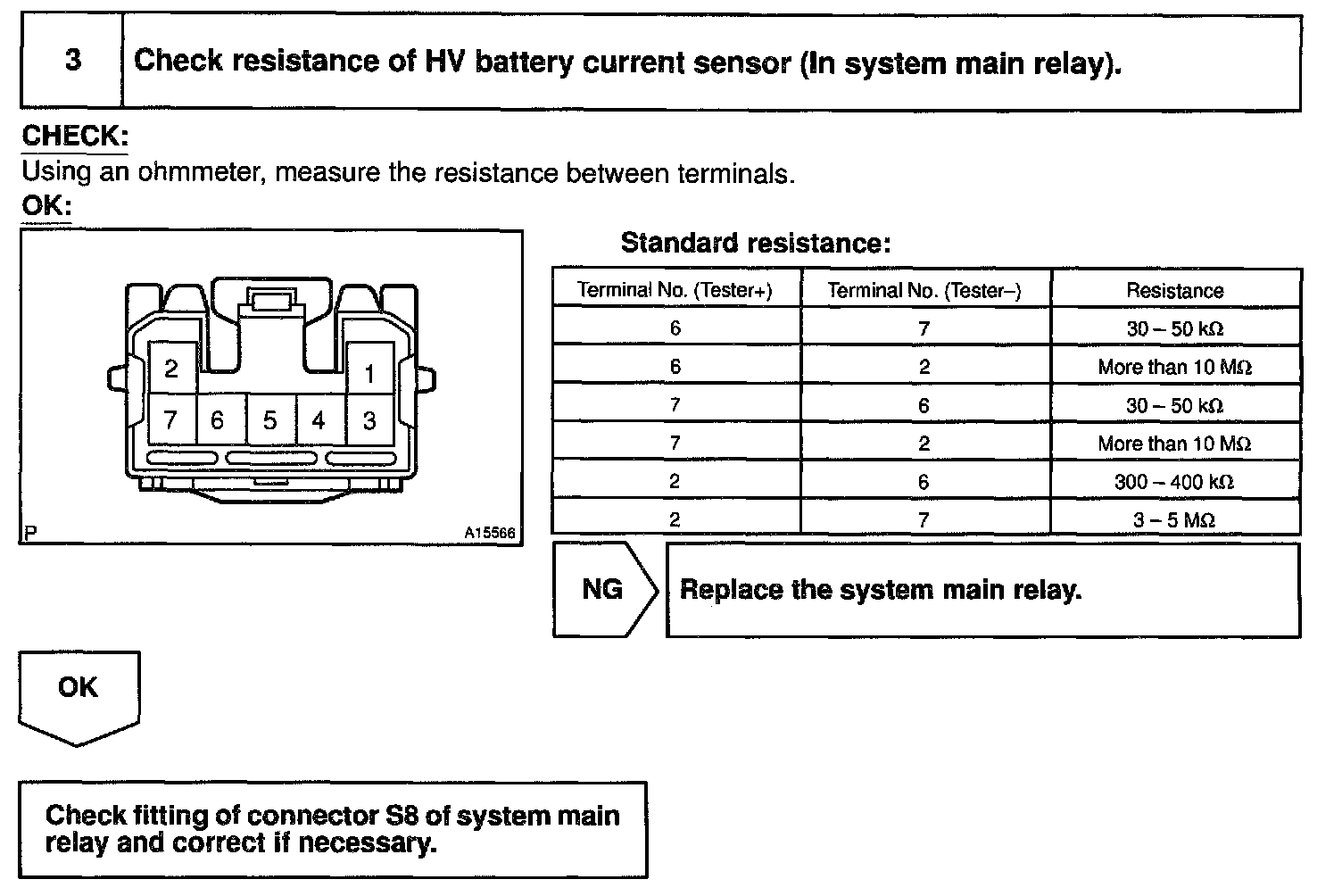

Step 3:

INSPECTION PROCEDURE
