Engine Control System

CIRCUIT DESCRIPTION

Detecting Condition:

The HV ECU and the brake ECU monitor the same STP signal. If any difference is identified between both received signals, the HV ECU outputs an error.

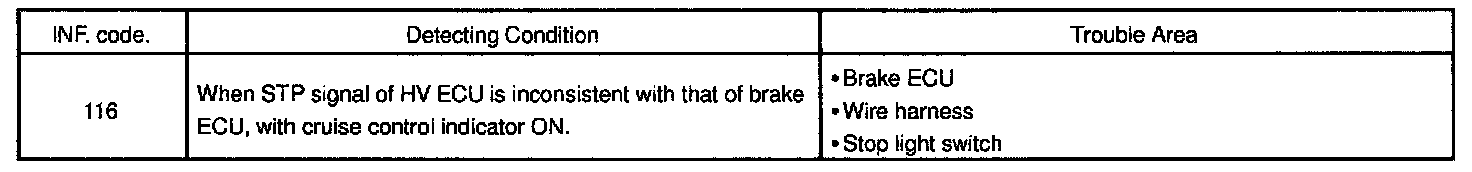

DTC P1566 - Information code 116

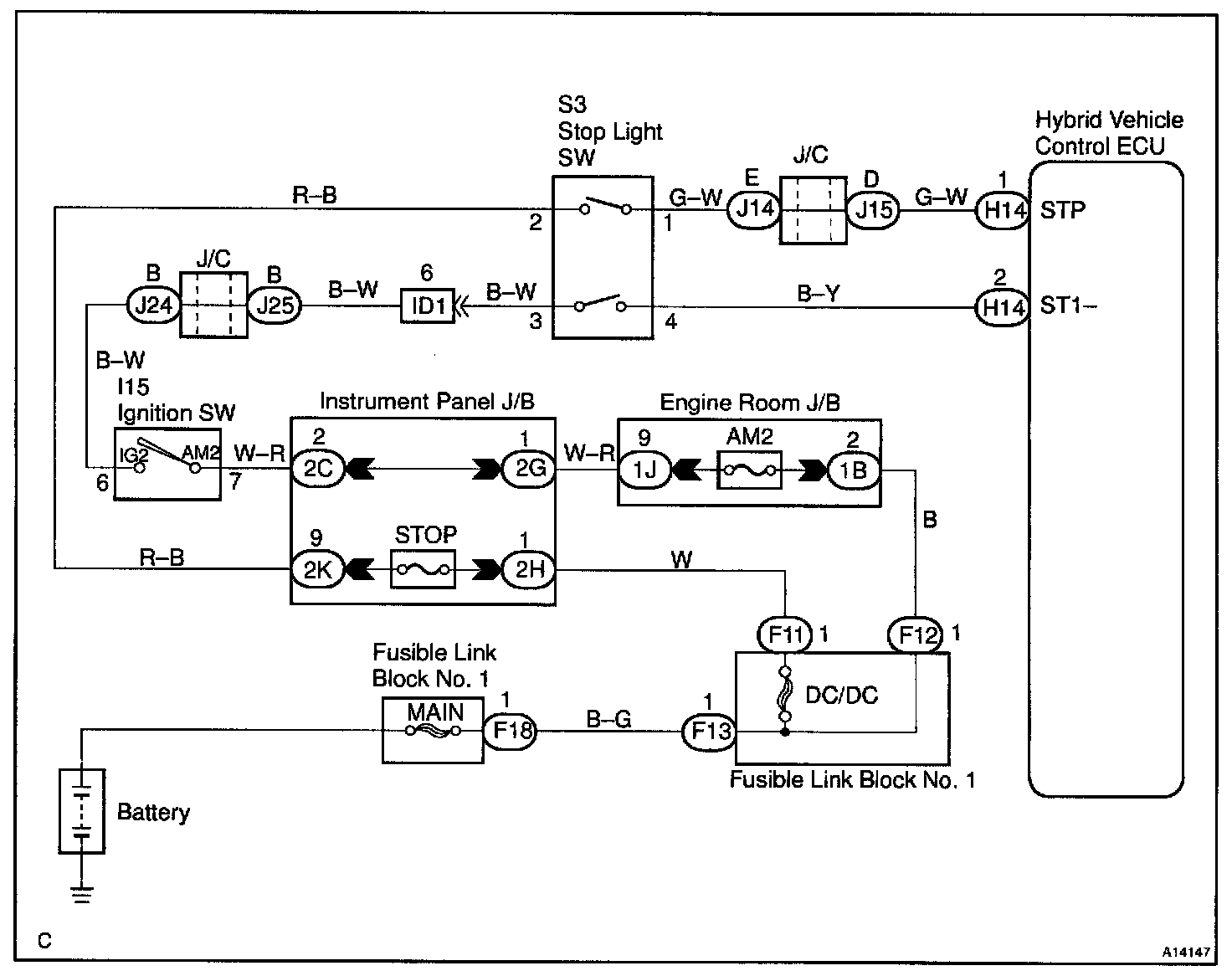

Wiring Diagram:

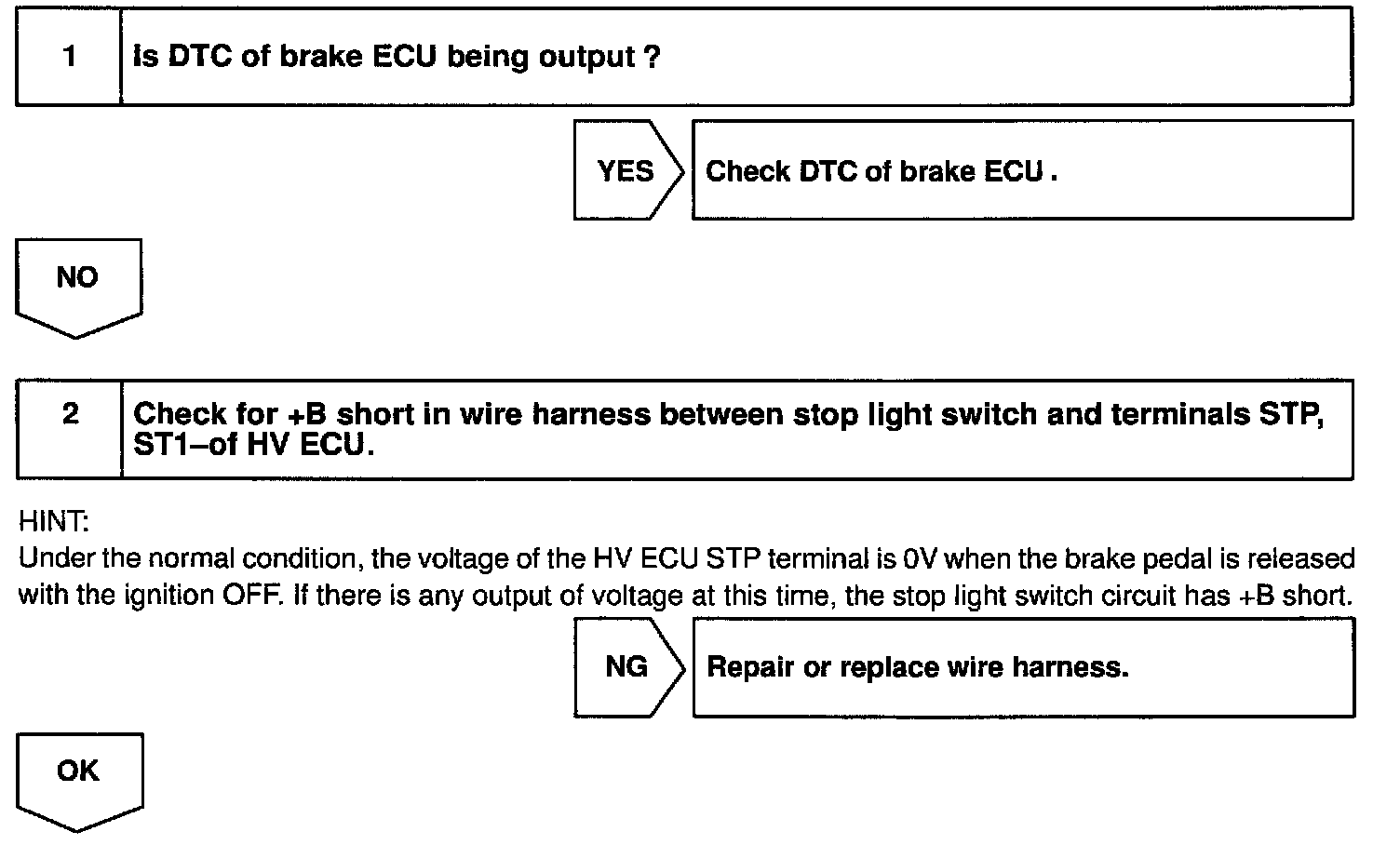

Steps 1 - 2:

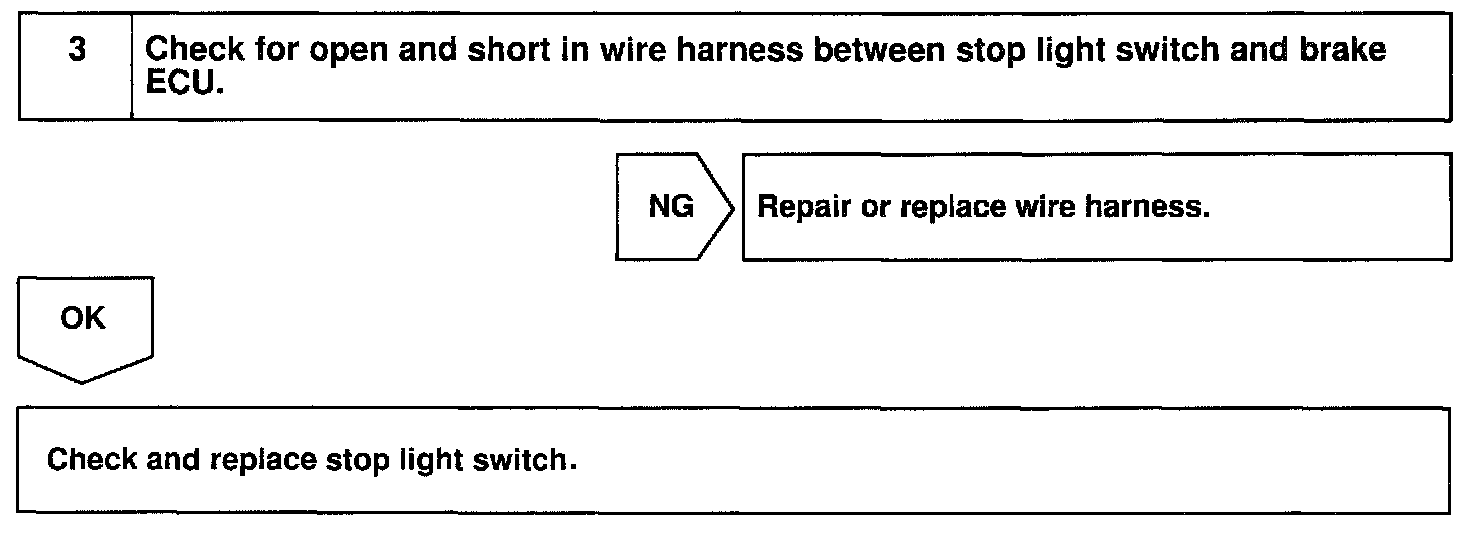

Step 3:

INSPECTION PROCEDURE
