Navigation System

TROUBLE CODE CHART

Part 1:

Part 2:

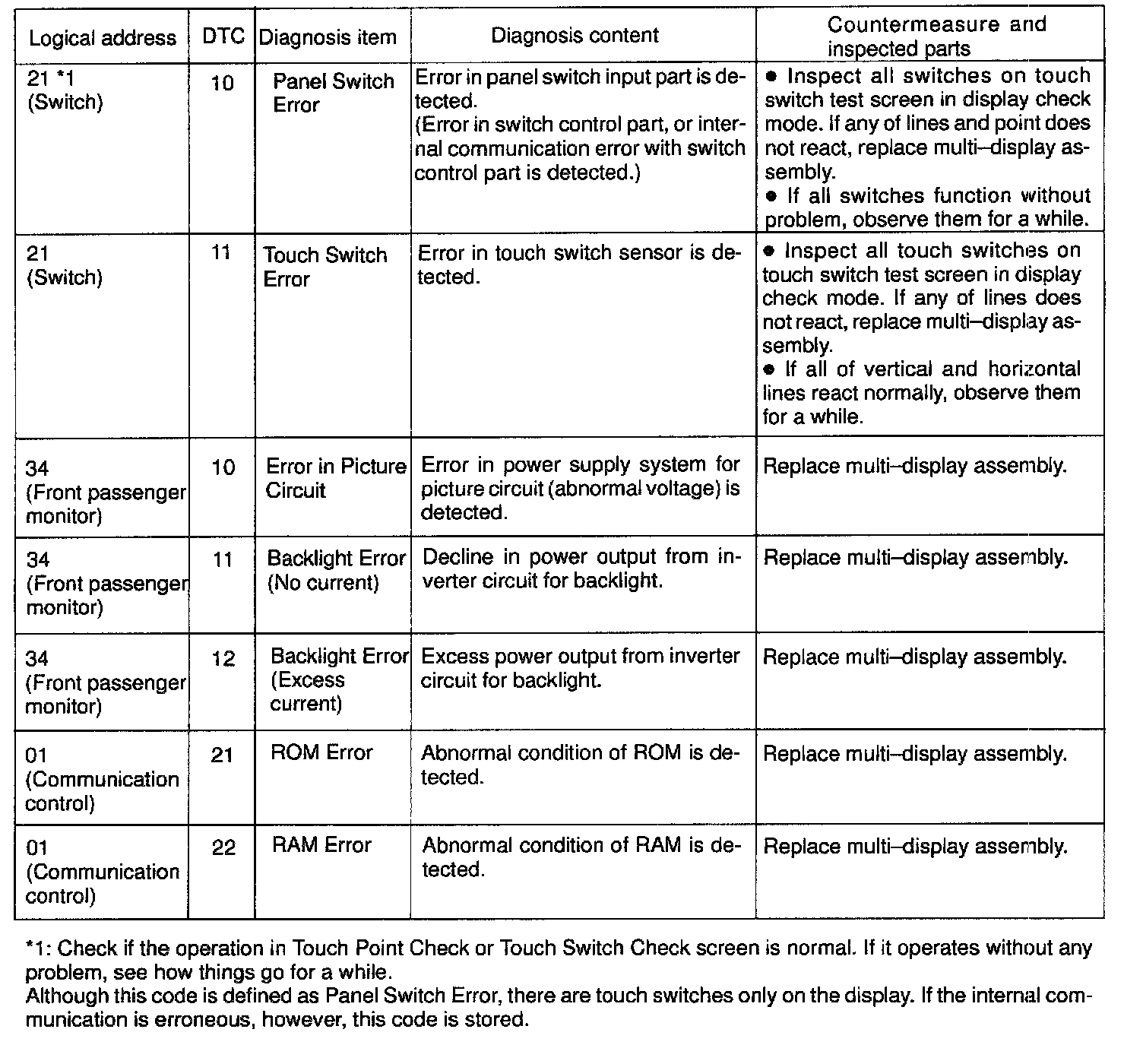

Physical address: 110 Multi display

Part 1:

Part 2:

Part 3:

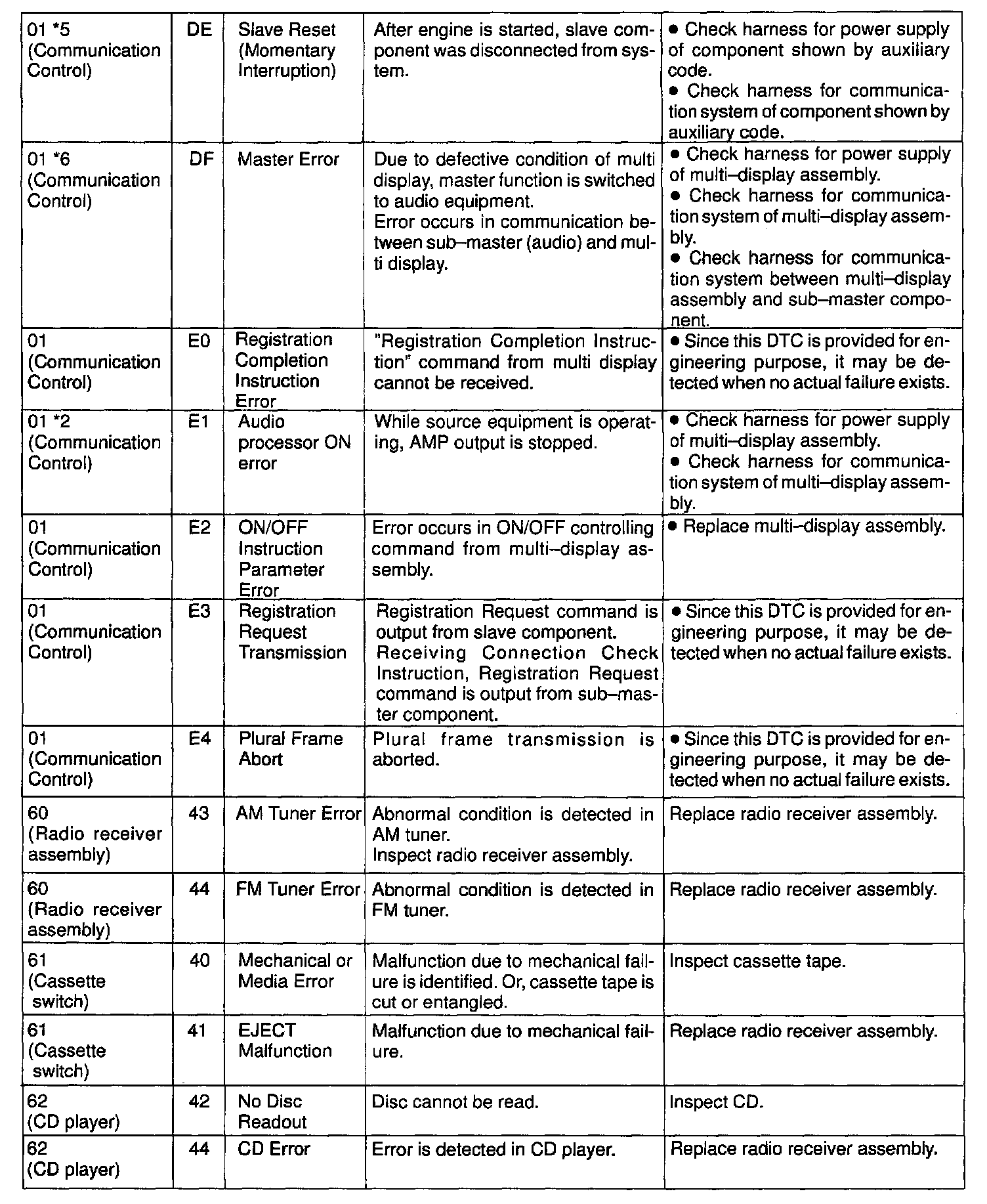

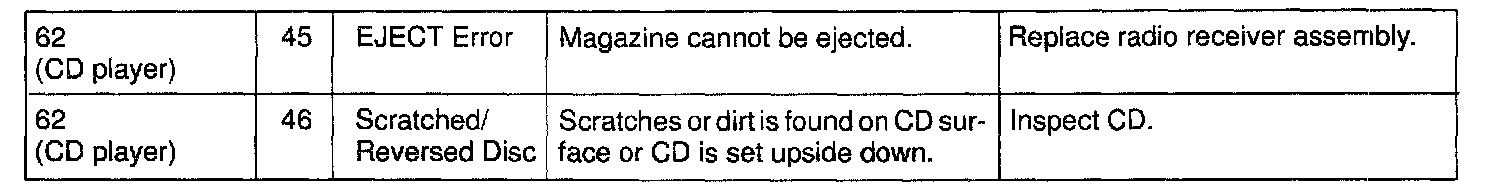

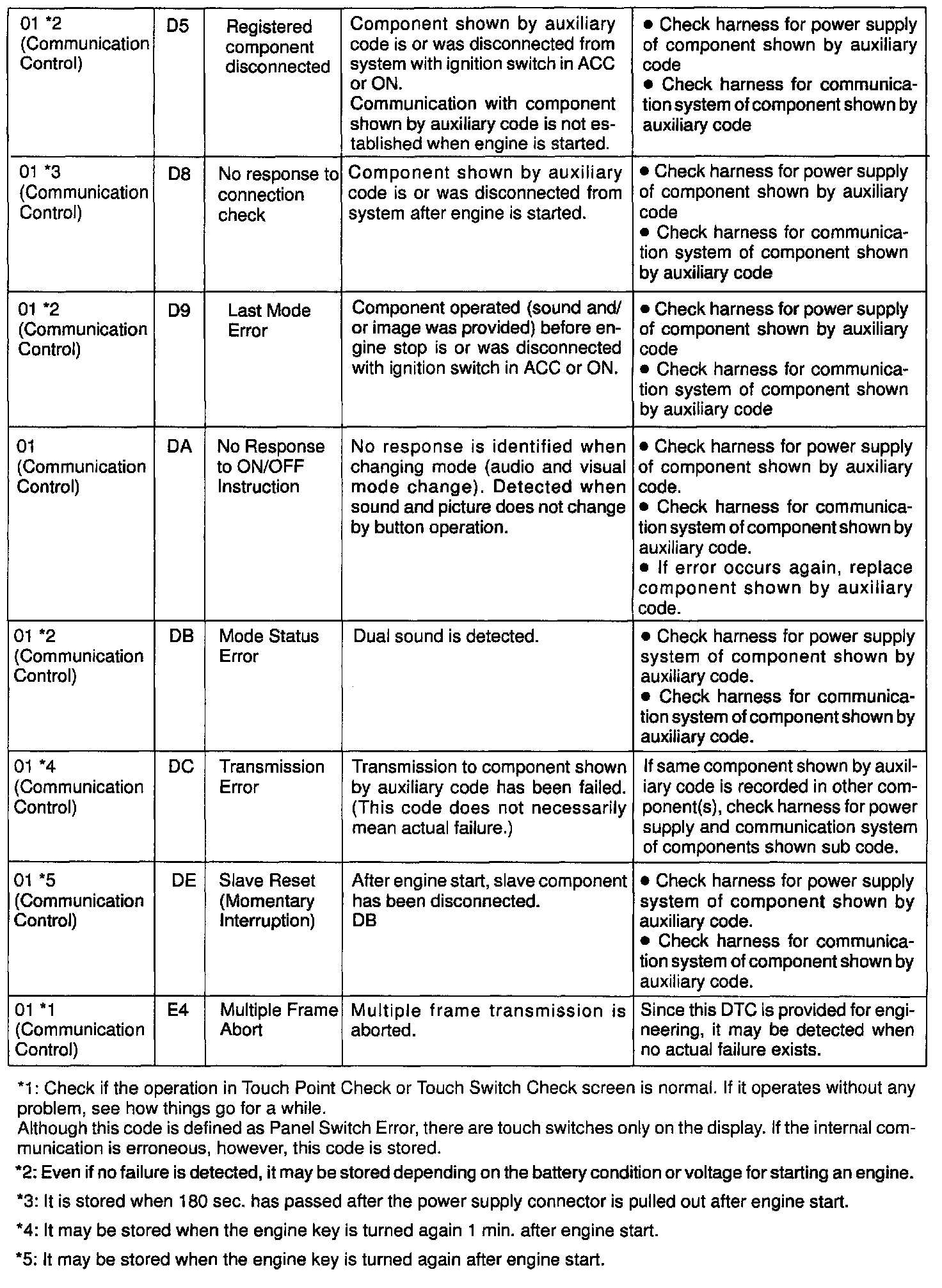

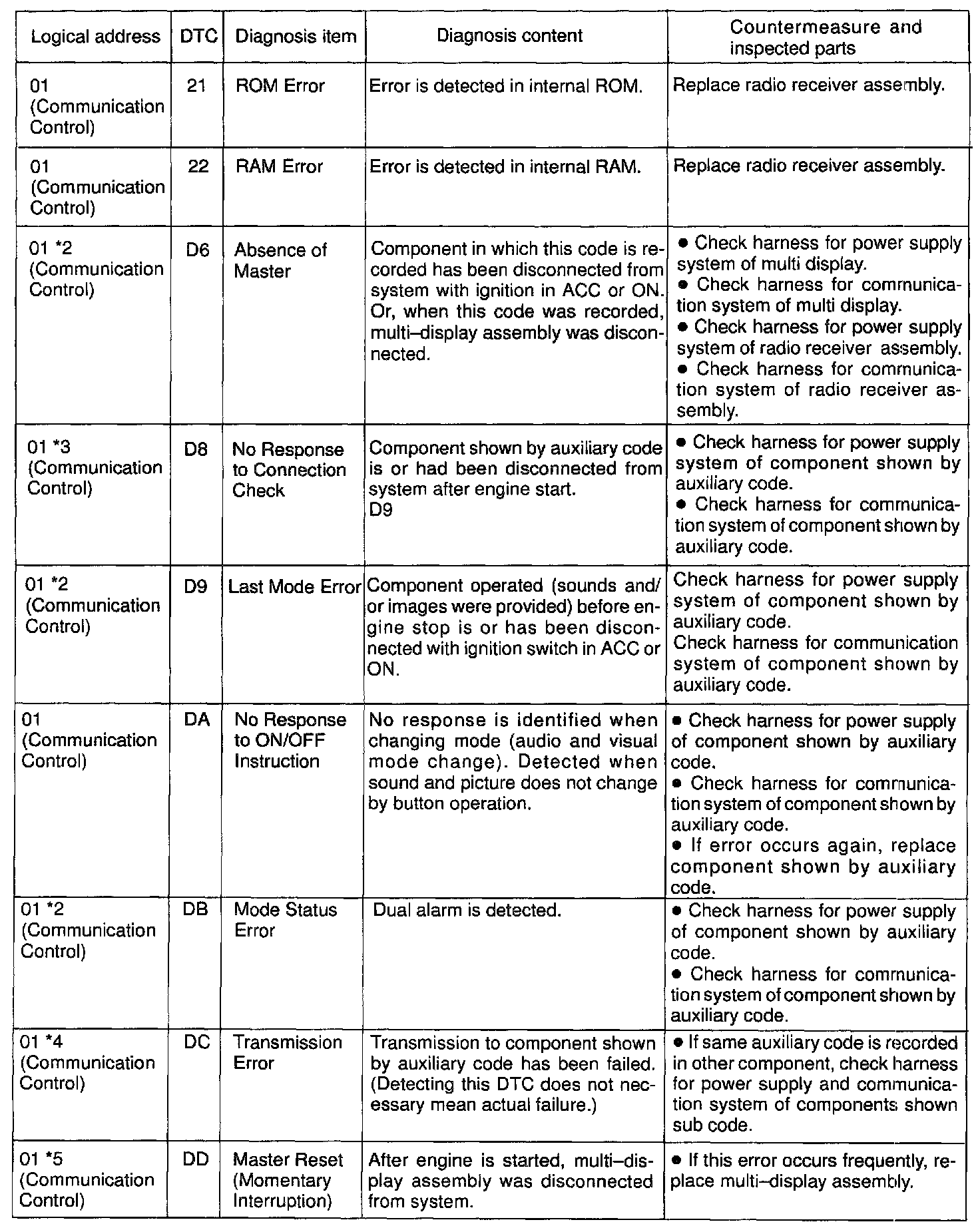

Physical address: 190 Radio receiver assembly

*2: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
*3: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
*4: It may be stored when the engine key is turned again 1 mm. after engine start.
*5: It may be stored when the engine key is turned again after engine start.
*6: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

Part 1:

Part 2:

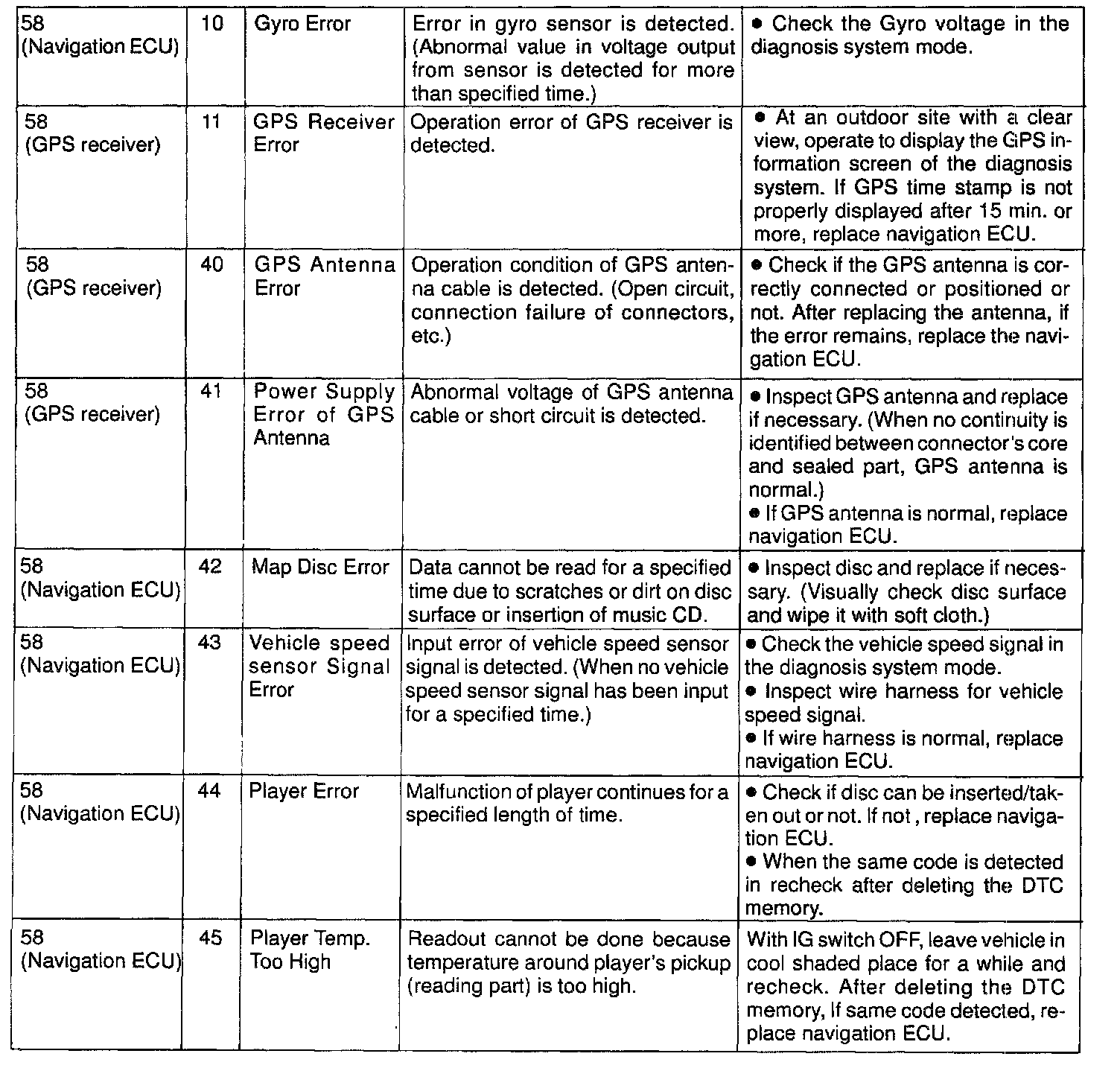

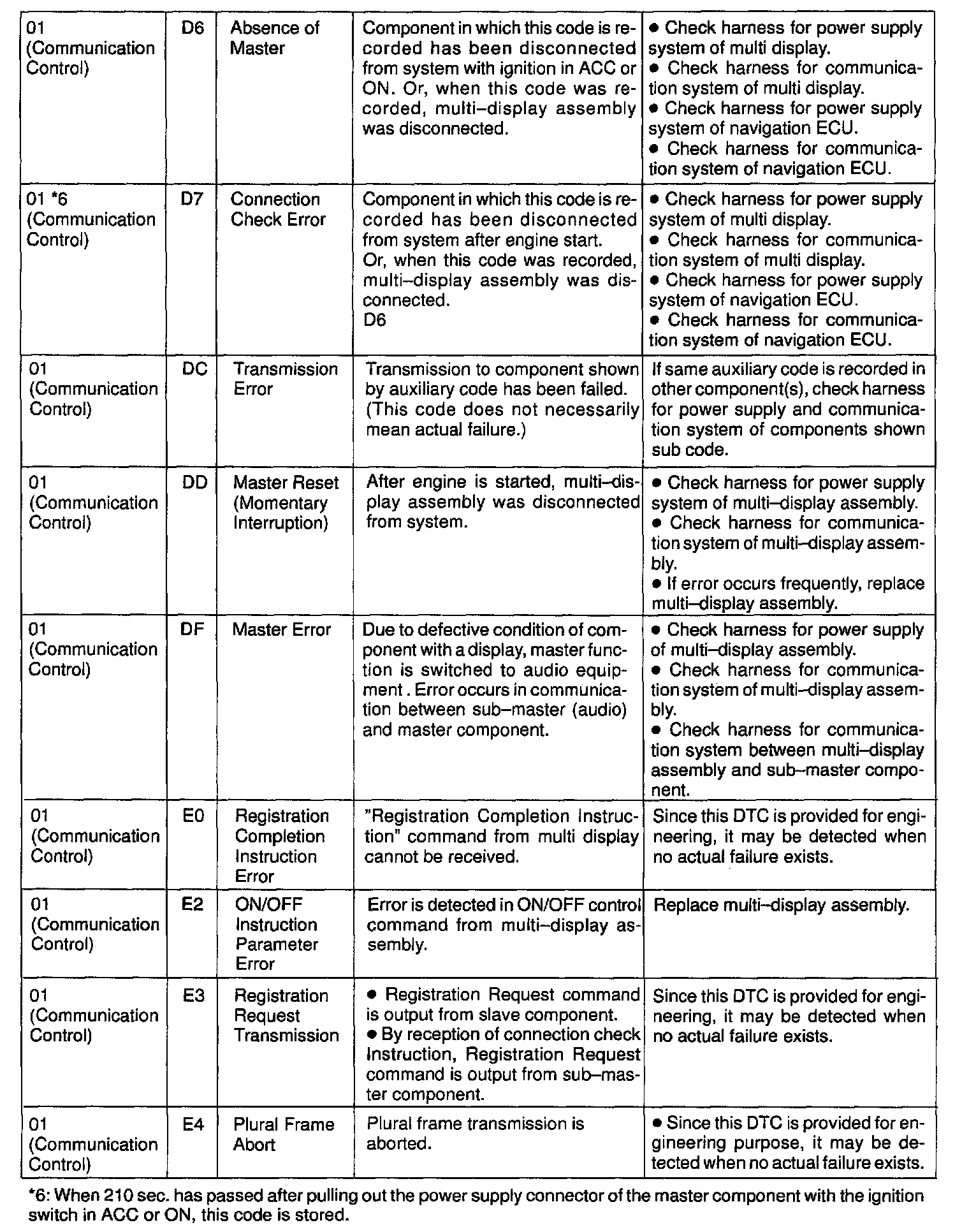

Physical address: 178 Navigation ECU
