Multiplex Communication System

NOTE: This article contains corrected data processed from TSB# PG001-05.

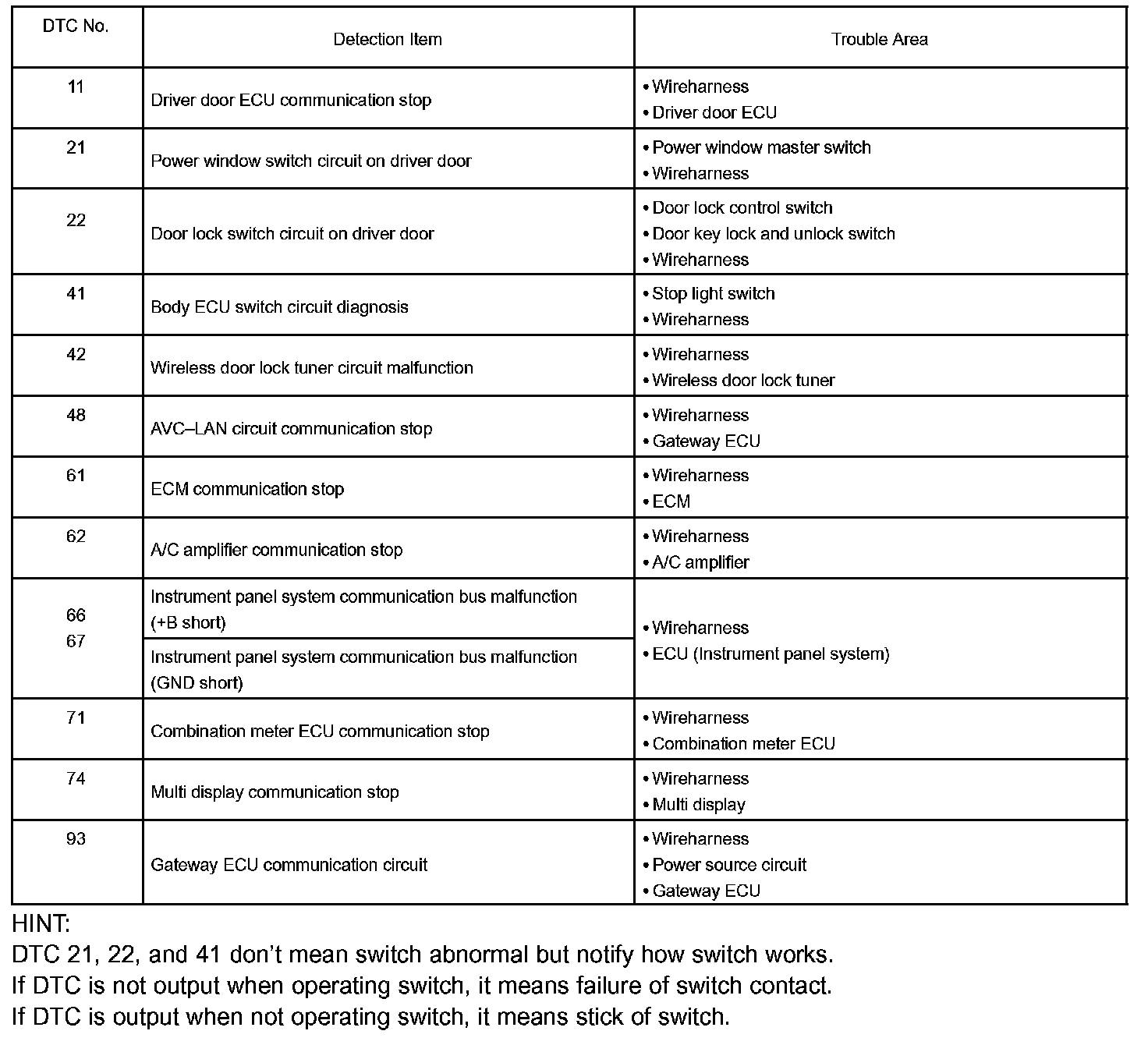

DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table provided (Proceed to the code chart for that circuit).
