Hybrid Vehicle Control System

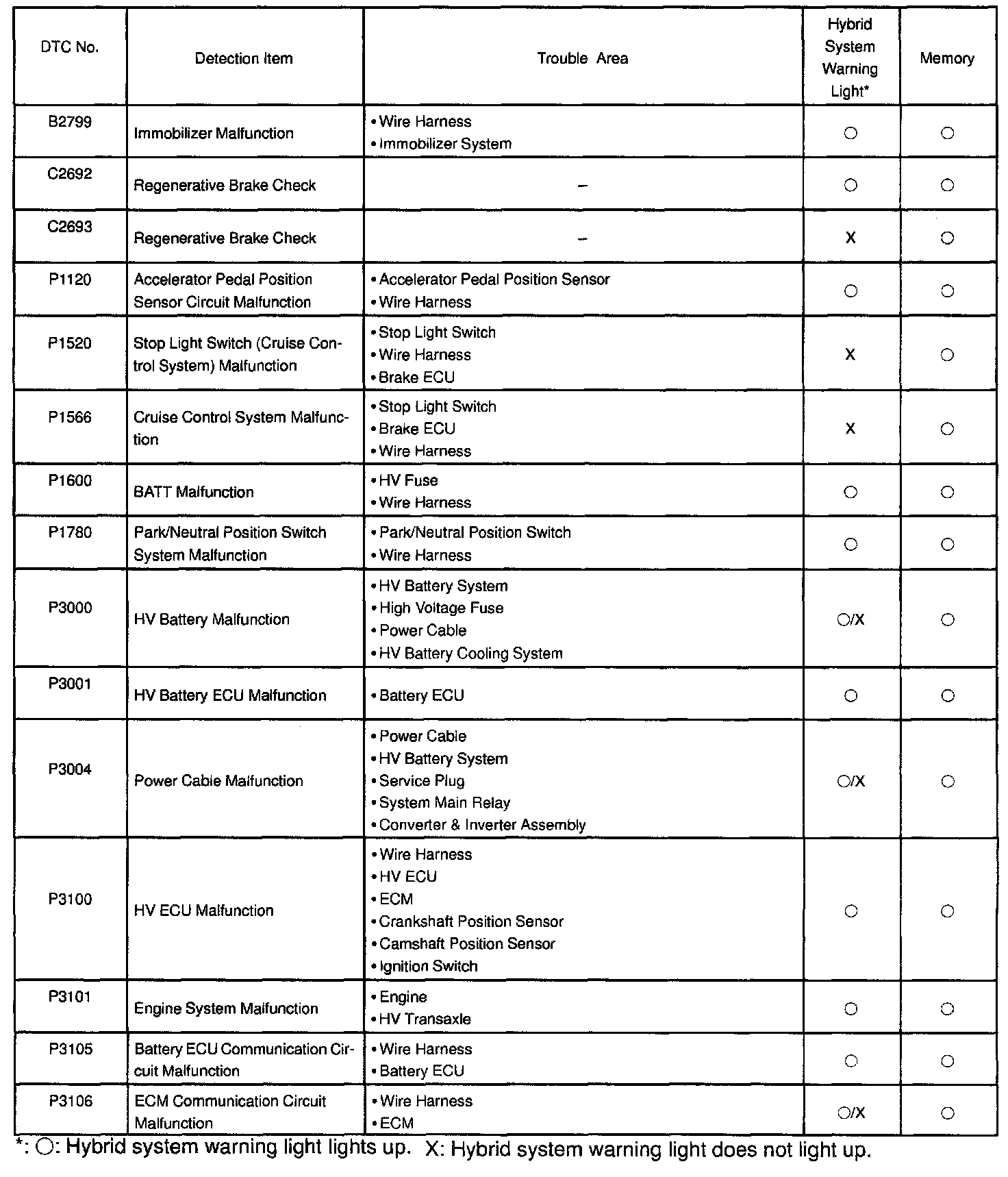

B2799, C2692 - C2693, P1120 - P3106:

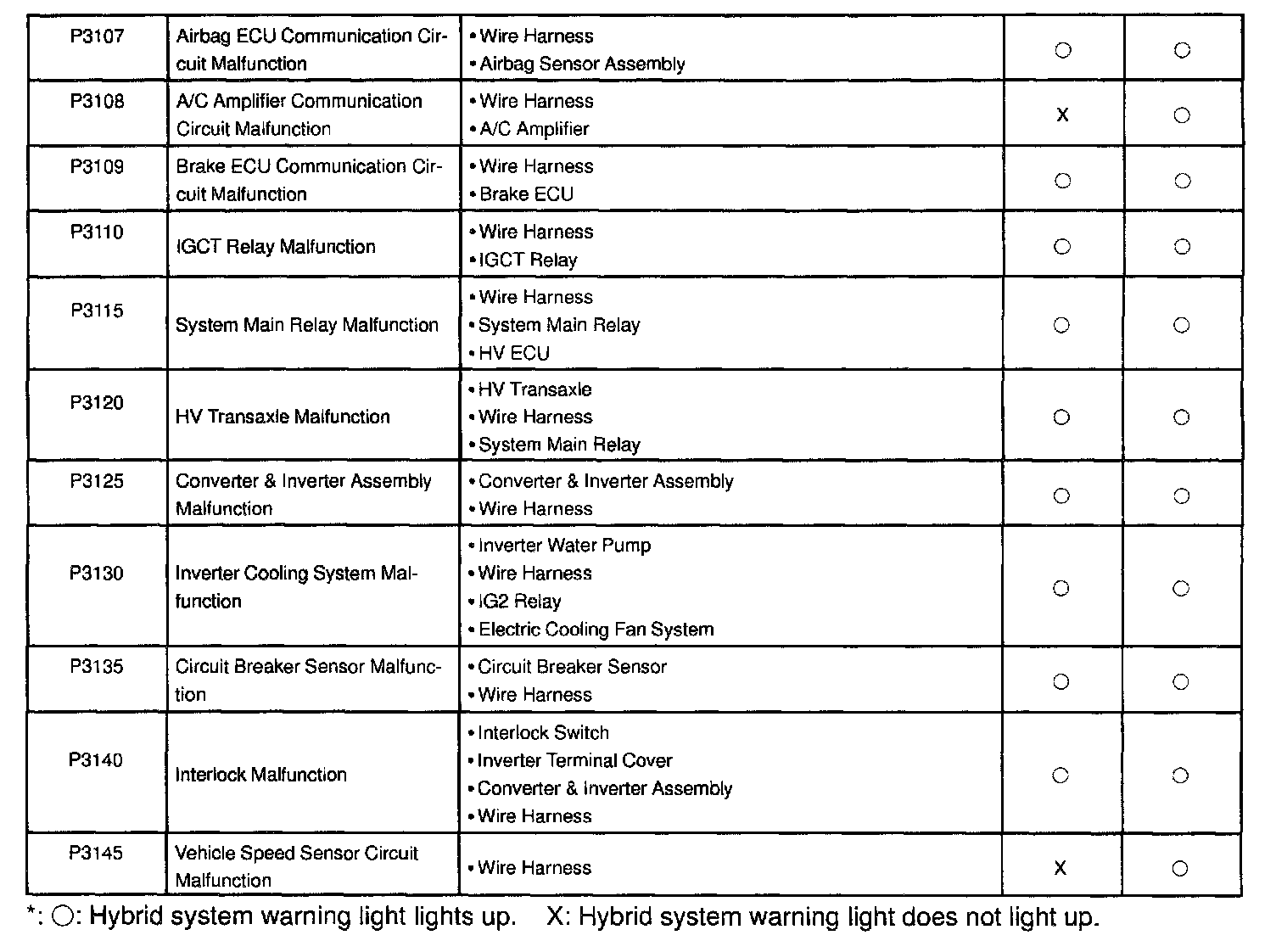

P3107 - P3145:

DIAGNOSTIC TROUBLE CODE CHART

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in the check mode, check the circuit for that code listed in the table below. For the details of each code, turn to the respective "DTC No." in the DTC chart.

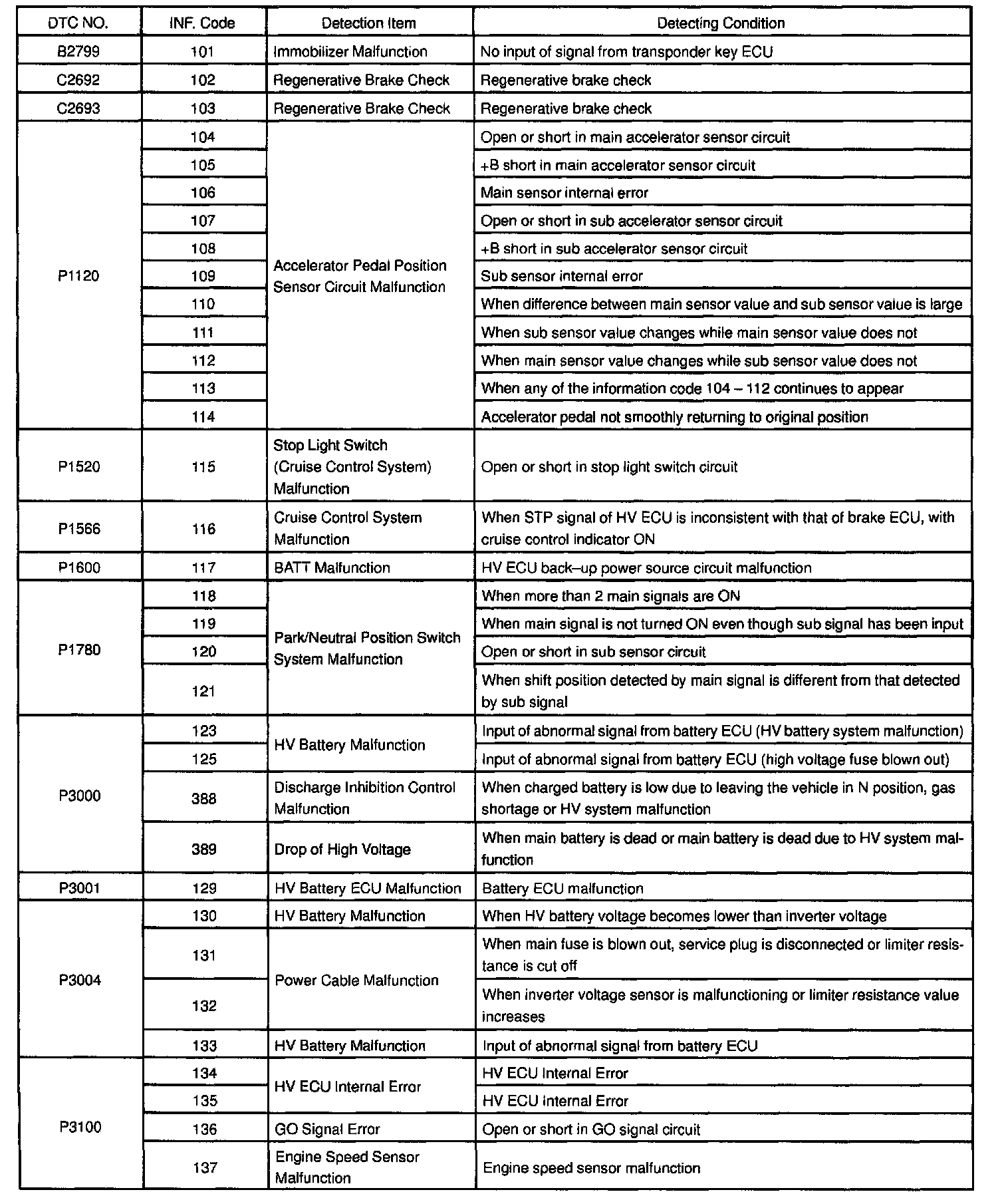

B2799, C2692 - C2693, P1120 - P3100 Information Code ( Toyota Hand-held Tester Only) (Part 1):

P3100 Information Code ( Toyota Hand-held Tester Only) (Part 2):

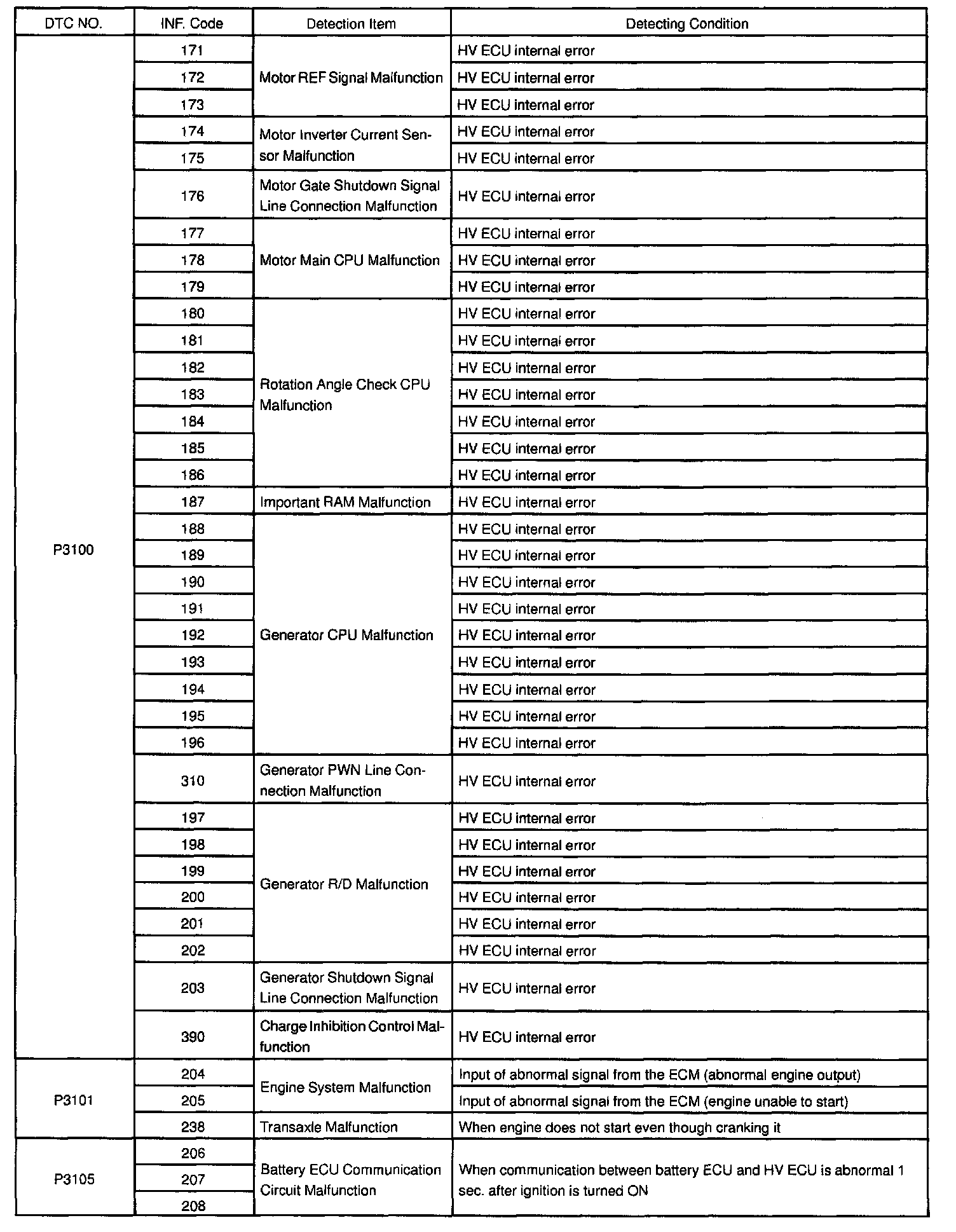

P3100 - P3105 Information Code ( Toyota Hand-held Tester Only)(Part 3):

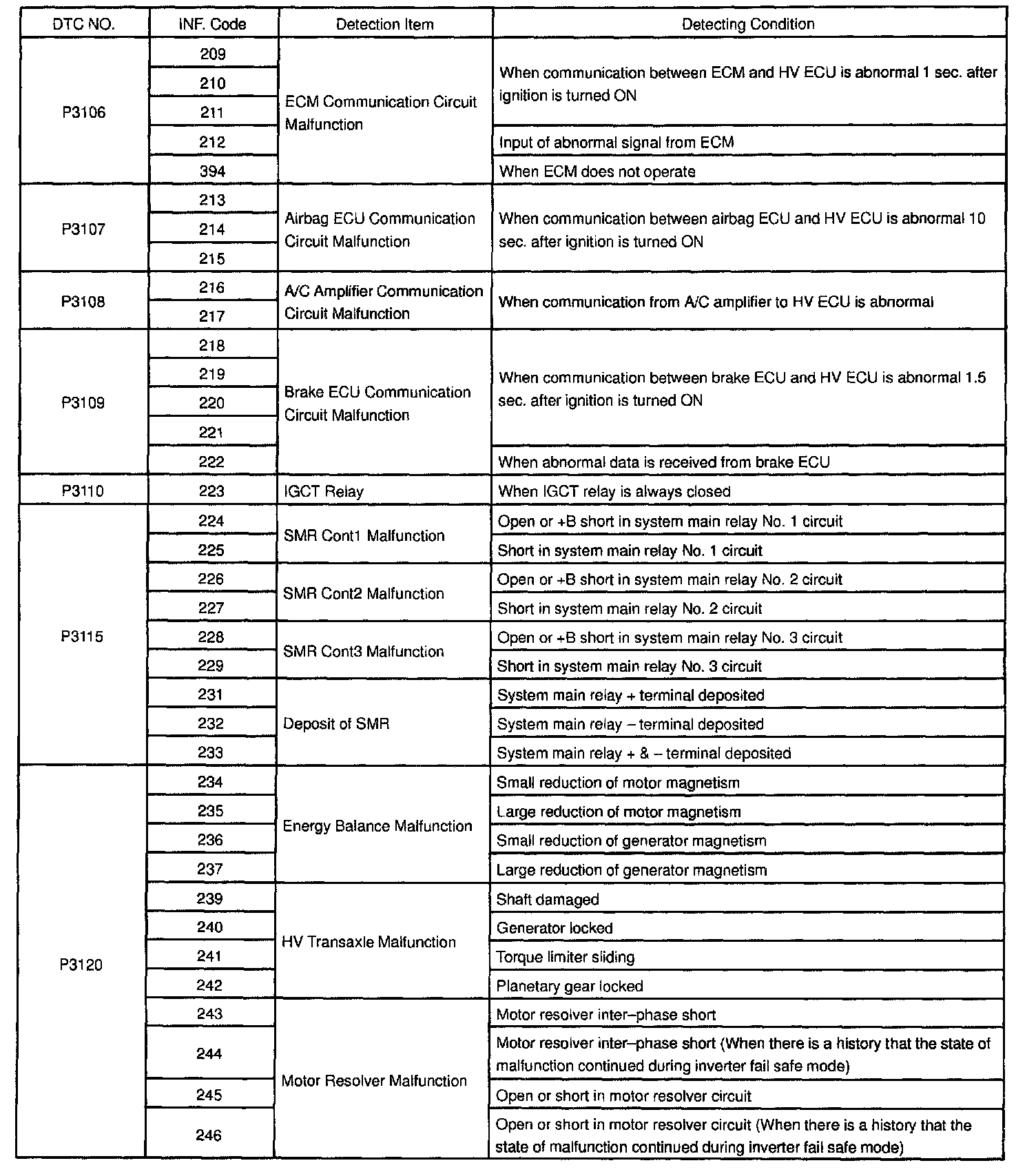

P3106 - P3120 Information Code ( Toyota Hand-held Tester Only)(Part 4):

P3120 - P3125 Information Code ( Toyota Hand-held Tester Only)(Part 5):

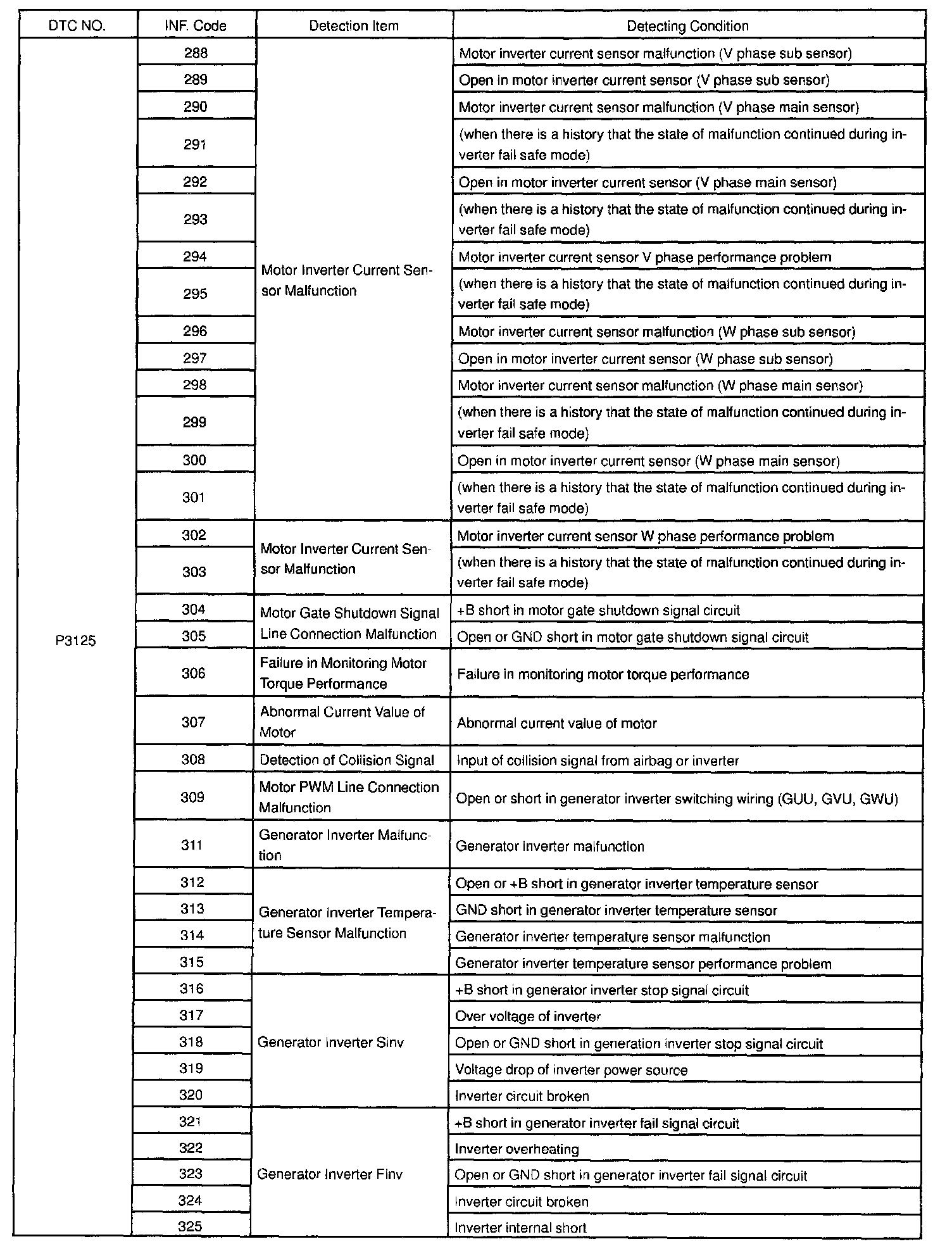

P3125 Information Code ( Toyota Hand-held Tester Only) (Part 6):

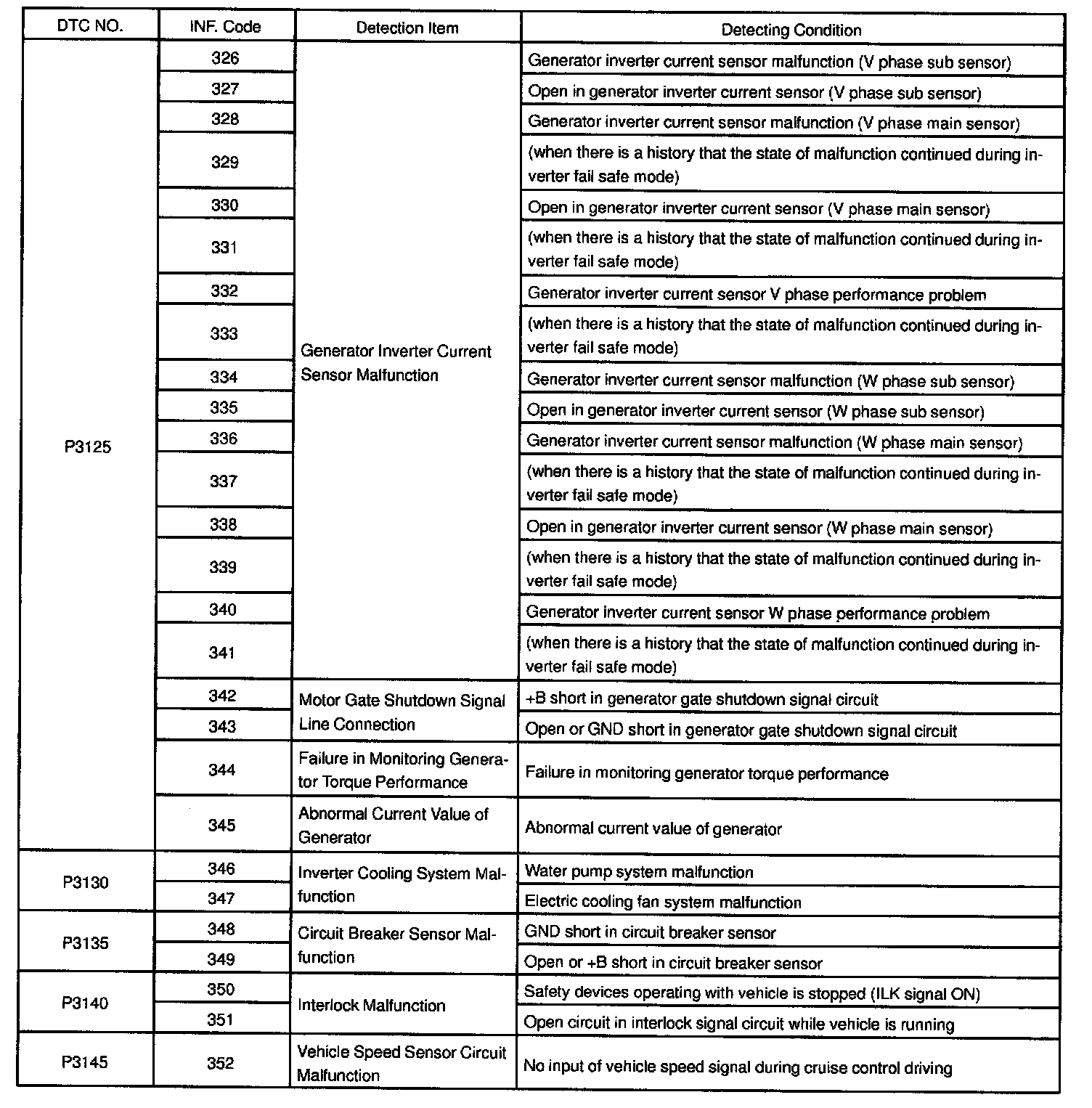

P3125 - P3145 Information Code ( Toyota Hand-held Tester Only) (Part 7):

INFORMATION CODE (TOYOTA Hand-held tester only)
