Electronic Power Steering System

DIAGNOSTIC TROUBLE CODE CHART

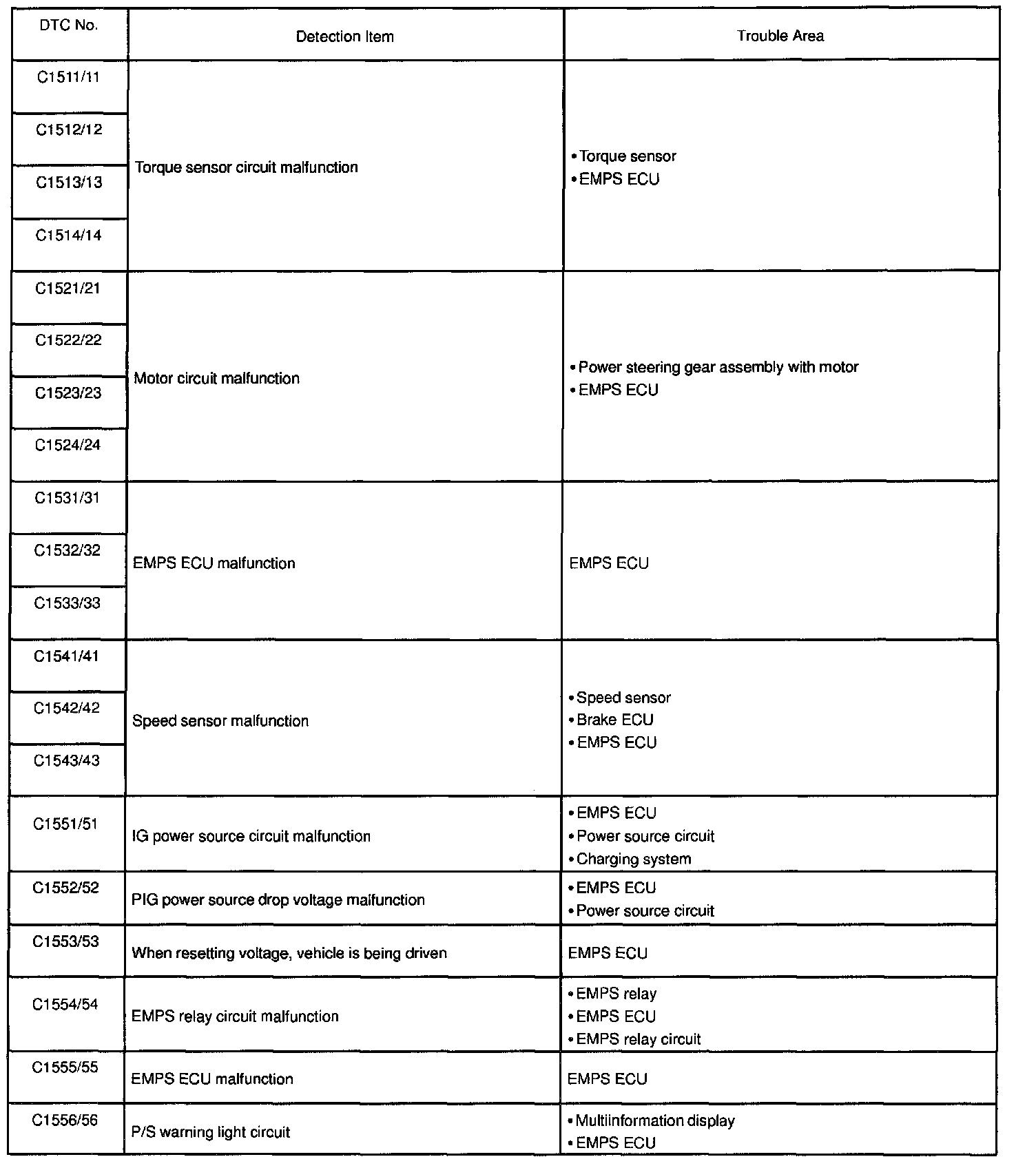

C1511 - C1556:

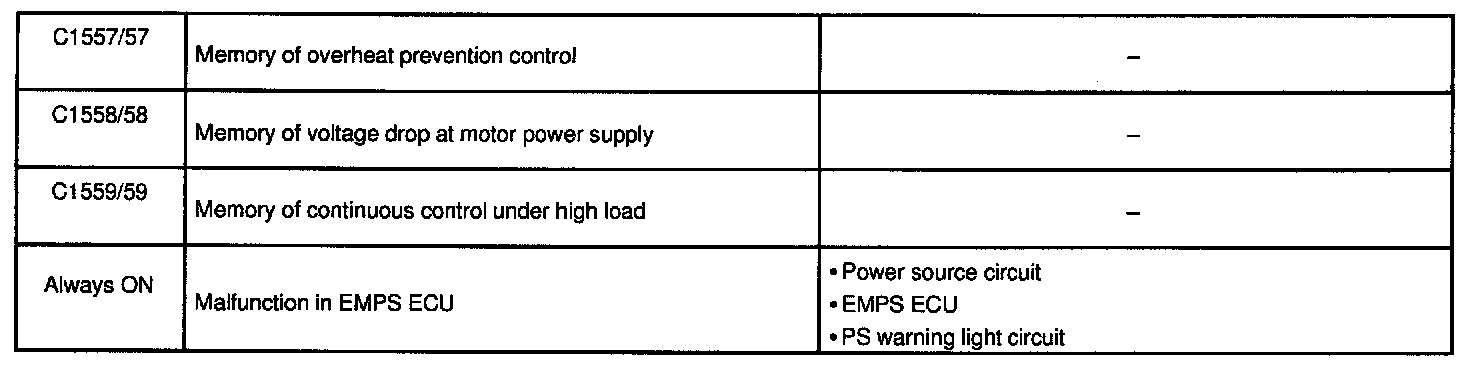

C1557 - C1559:

HINT:
- Using SST 09843-18040, connect terminals Tc and CG of the DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, turn to the respective "DTC No." in the DTC chart.
