Sequential Manual Transmission

SMT PROBLEM SYMPTOMS TABLE

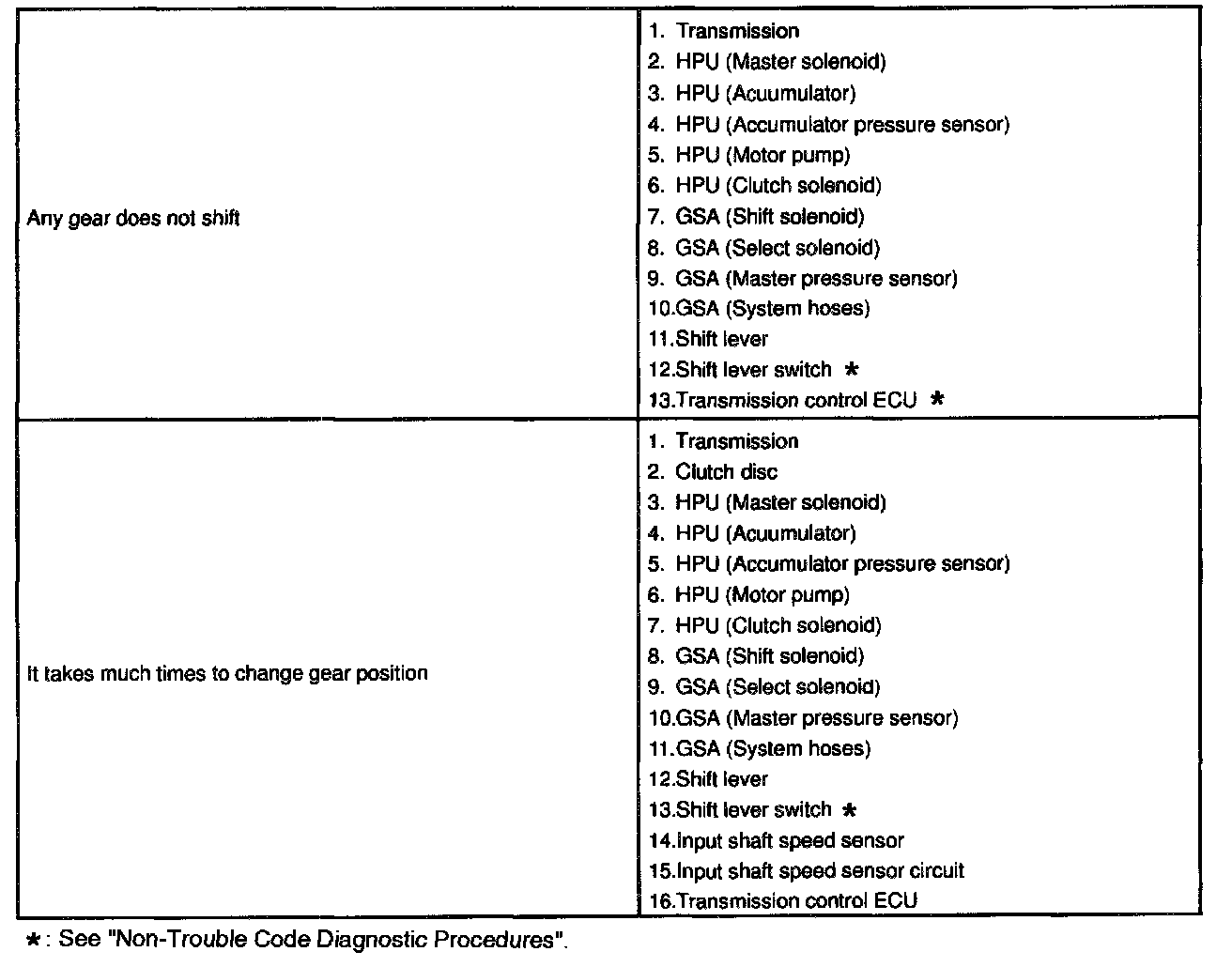

Problem Symptoms Table (Part 1):

Problem Symptoms Table (Part 2):

If a normal code is displayed during the DTC check but the problem still occurs, check the problem symptom in the order given in the table and proceed to the relevant troubleshooting.

NOTE: When replacing the transmission control ECU or sensor, turn the ignition switch OFF and close the driver's door, and after replacing the transmission control ECU, make the transmission control ECU learn characteristics.

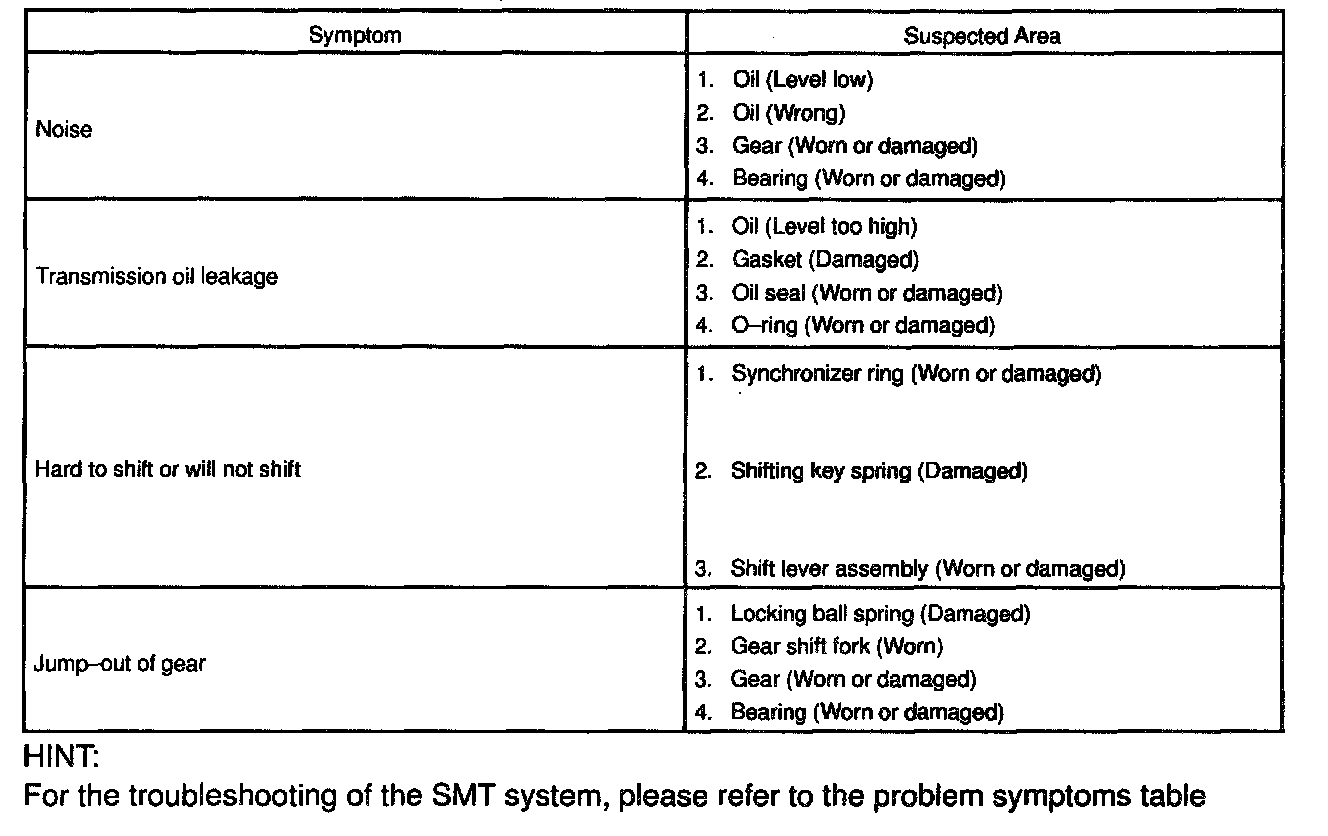

MECHANICAL PROBLEM SYMPTOMS TABLE





Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace parts.
