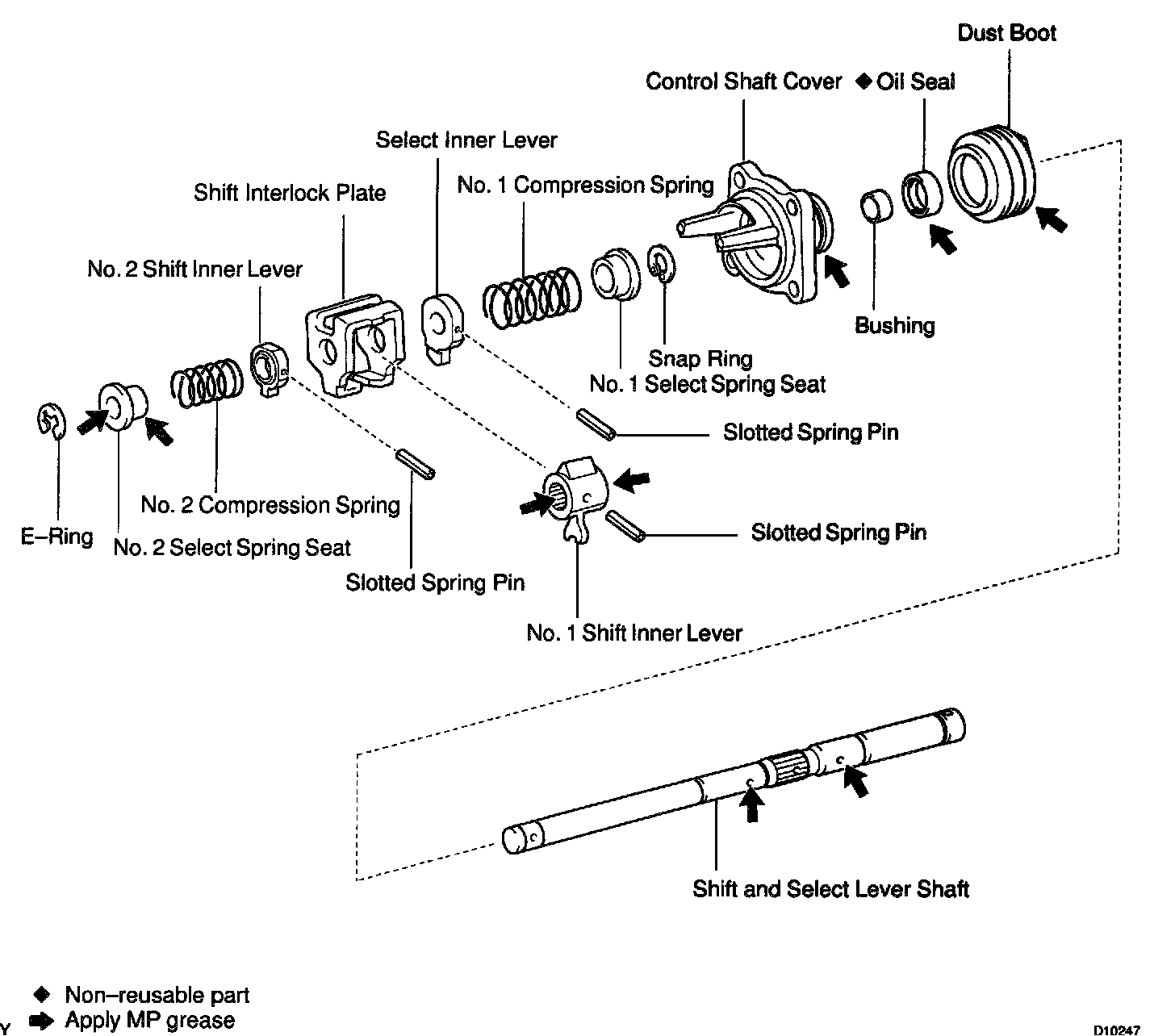

Shift and Select Lever Shaft

REPLACEMENT
REPLACE CONTROL SHAFT COVER OIL SEAL AND BUSHING

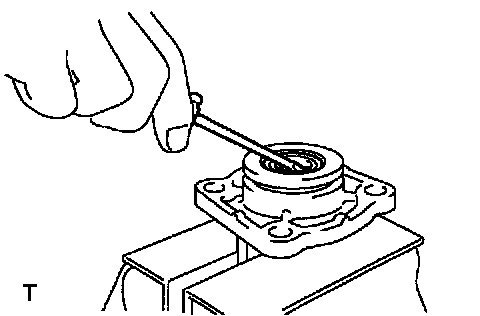

a. Using a screwdriver, pry out the oil seal.

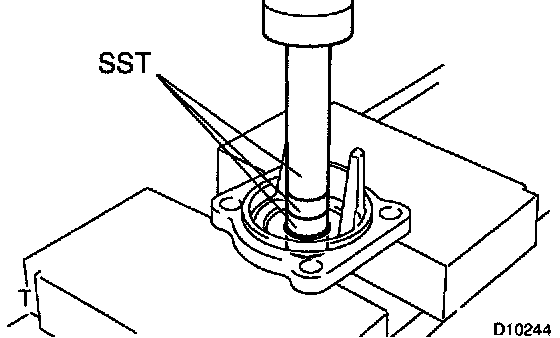

b. Using SST and a press, press out the bushing.
SST 09950-60010 (09951-00200, 09951-00210), 09950-70010 (09951-07150)

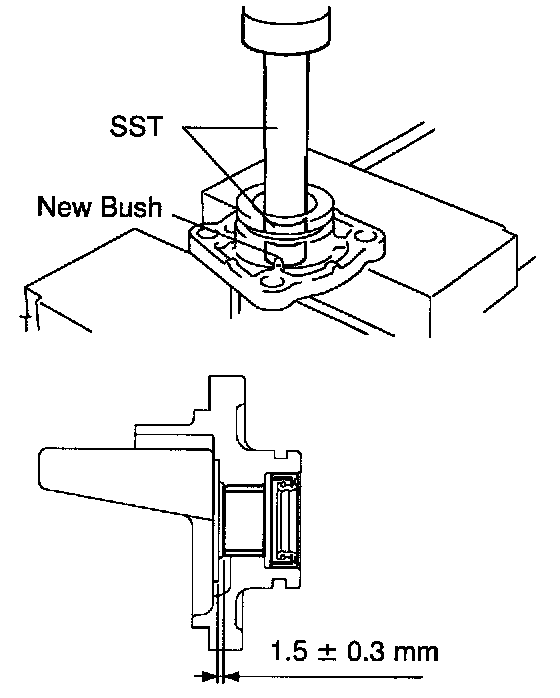

c. Using SST and a press, press in a new bushing.
SST 09950-60010 (09951-00200), 09950-70010 (09951-07150)
Depth: 1.5 ± 0.3 mm (0.059 ± 0.012 inch)

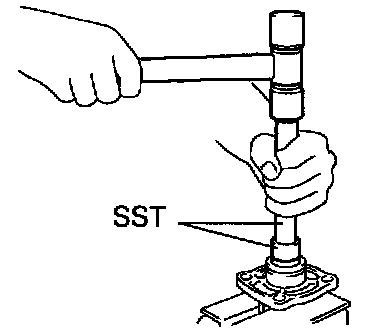

d. Using SST and a plastic-faced hammer, carefully tap in a new oil seal.
SST 09950-60010 (09951-00270), 09950-70010 (09951-07150)
