Sequential Shift

NOTE: This article contains corrected data processed from TSB# PG001-05.

SEQUENTIAL MANUAL
TRANSMISSION UNIT
ON-VEHICLE REPAIR


REPLACE TRANSMISSION OIL
(a) Remove the filler plug.
(b) Remove the drain plug, and drain the transmission oil.

HINT: Use a container to catch the transmission oil.

(c) Reinstall the drain plug.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)

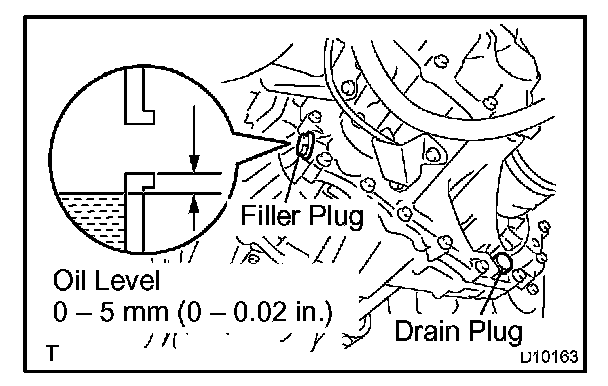

(d) Refill new transmission oil as shown in the illustration.
Oil grade: API GL-4 or GL-5
Viscosity: SAE 75W-90




Capacity

(e) Reinstall the filler plug.
Torque: 39 Nm (400 kgf-cm, 29 ft-lbf)
