Cylinder Head Torque & Sequence

Cylinder Head

Warpage:
Maximum 0.05 mm (0.0020 in.)

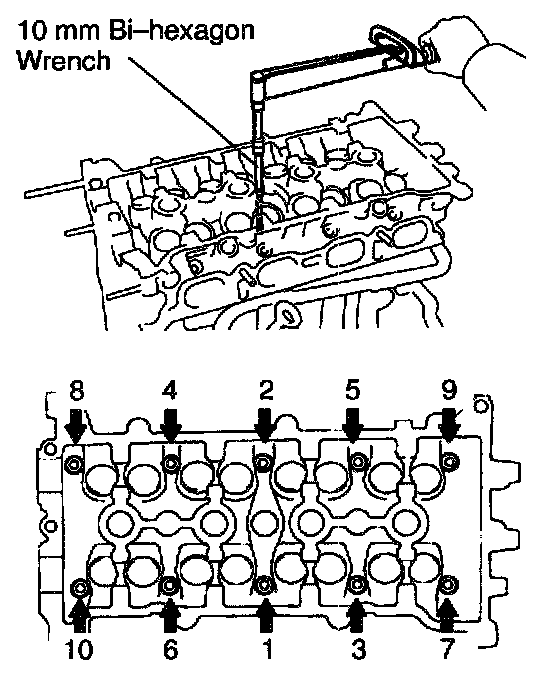

Tightening Sequence

Using a 10 mm bi-hexagon wrench, install and uniformly tighten the 10 cylinder head bolts and plate washers in several passes, in the sequence shown.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)initial + 90°

Exhaust Manifold
Torque: 37 Nm (377 kgf-cm, 27 ft. lbs.)

2 Exhaust Manifold Stays With The 4 Bolts
Torque: 37 Nm (377 kgf-cm, 27 ft. lbs.)

Intake Manifold
Torque: 30 Nm (306 kgf-cm, 22 ft. lbs.)
