Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2001
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
Relay Box: Locations
Fusible Link Block - J/B No.1:
Engine Room R/B:
R/B No.3 - J/B No.3:

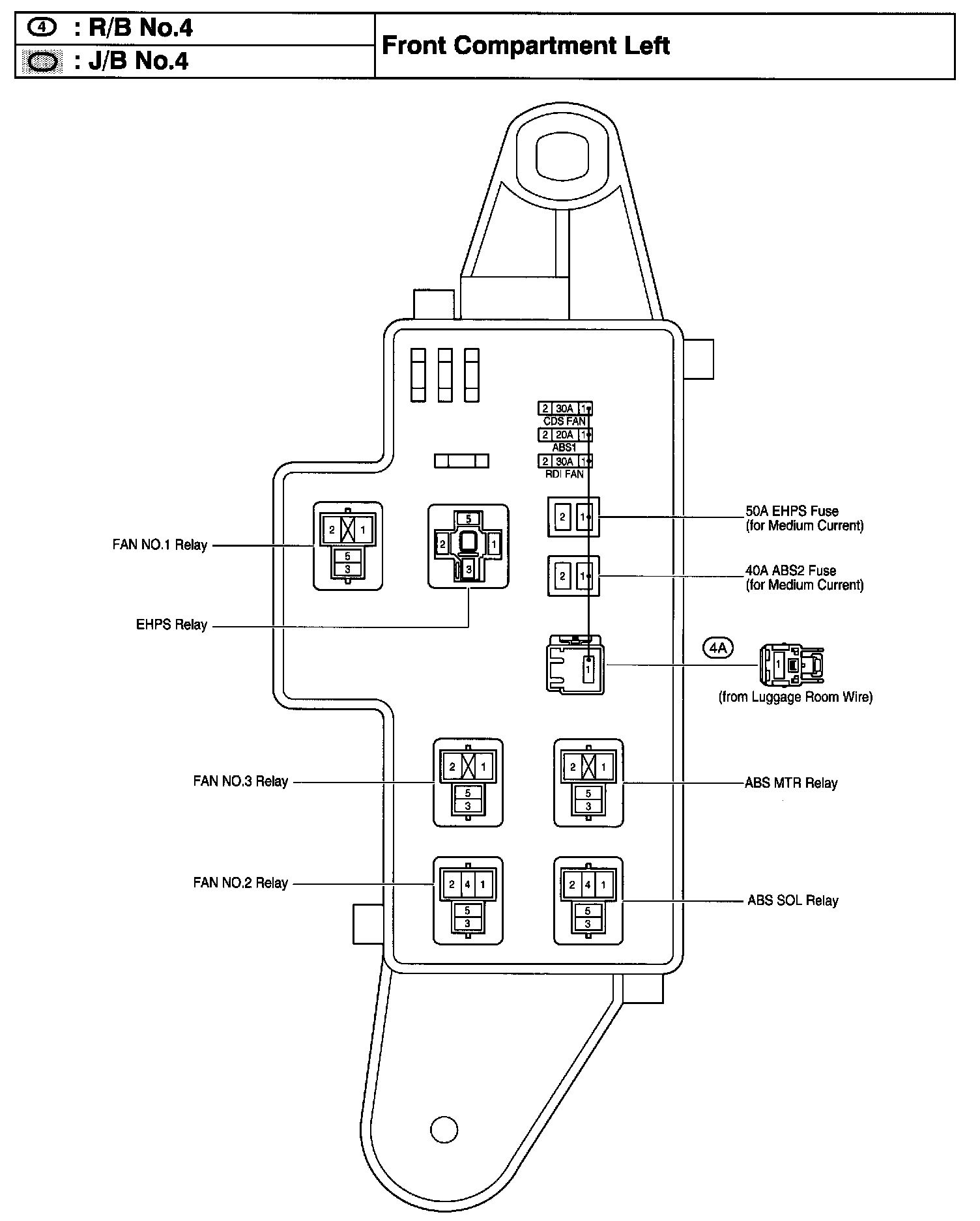

R/B No.4 - J/B No.4:
R/B No.5:
Details
Engine Compartment:
Instrument Panel:
Body:
Locations
