Power Source
Power Source
Power Source - Fusible Link Block:

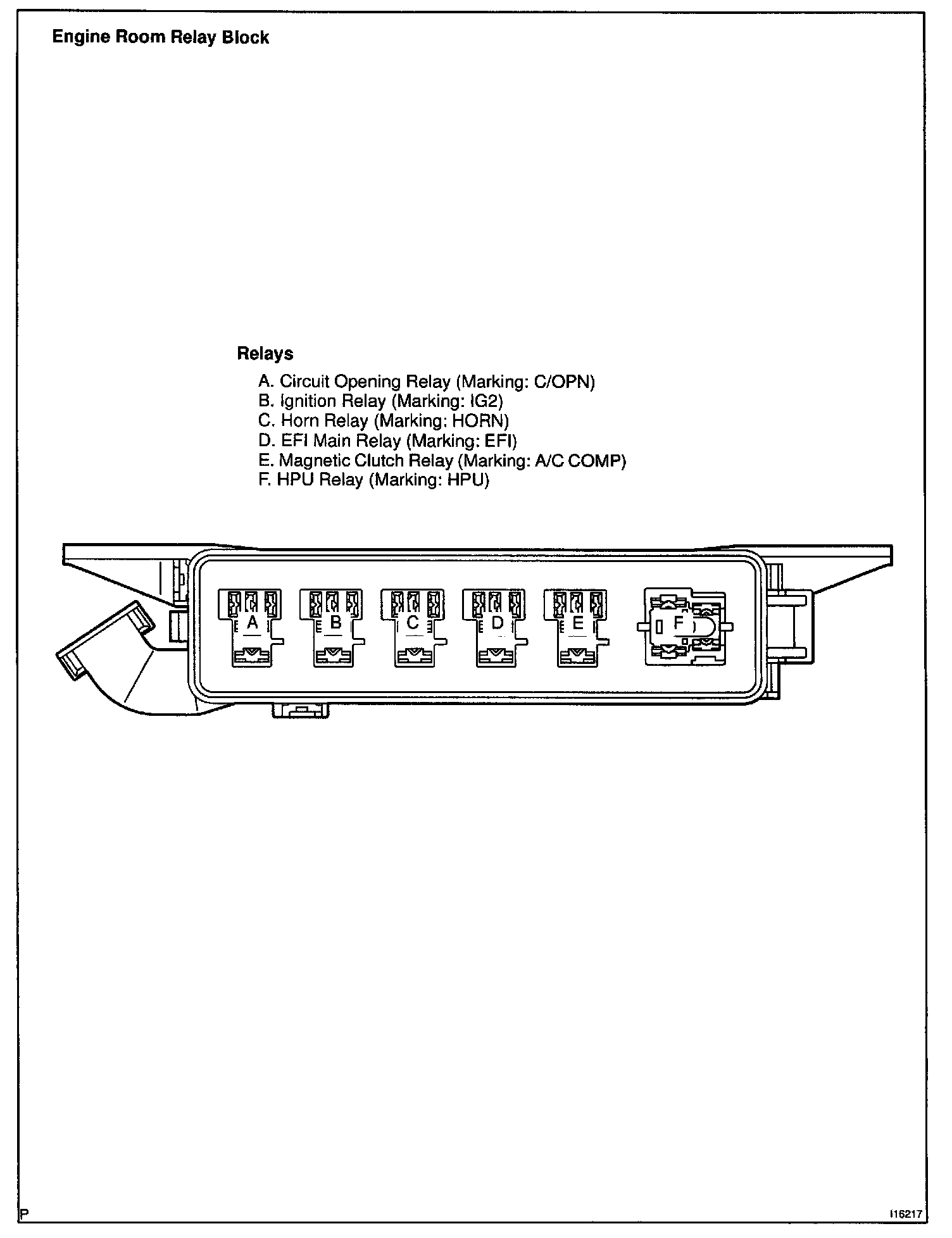

Power Source - Engine Room Relay Block:

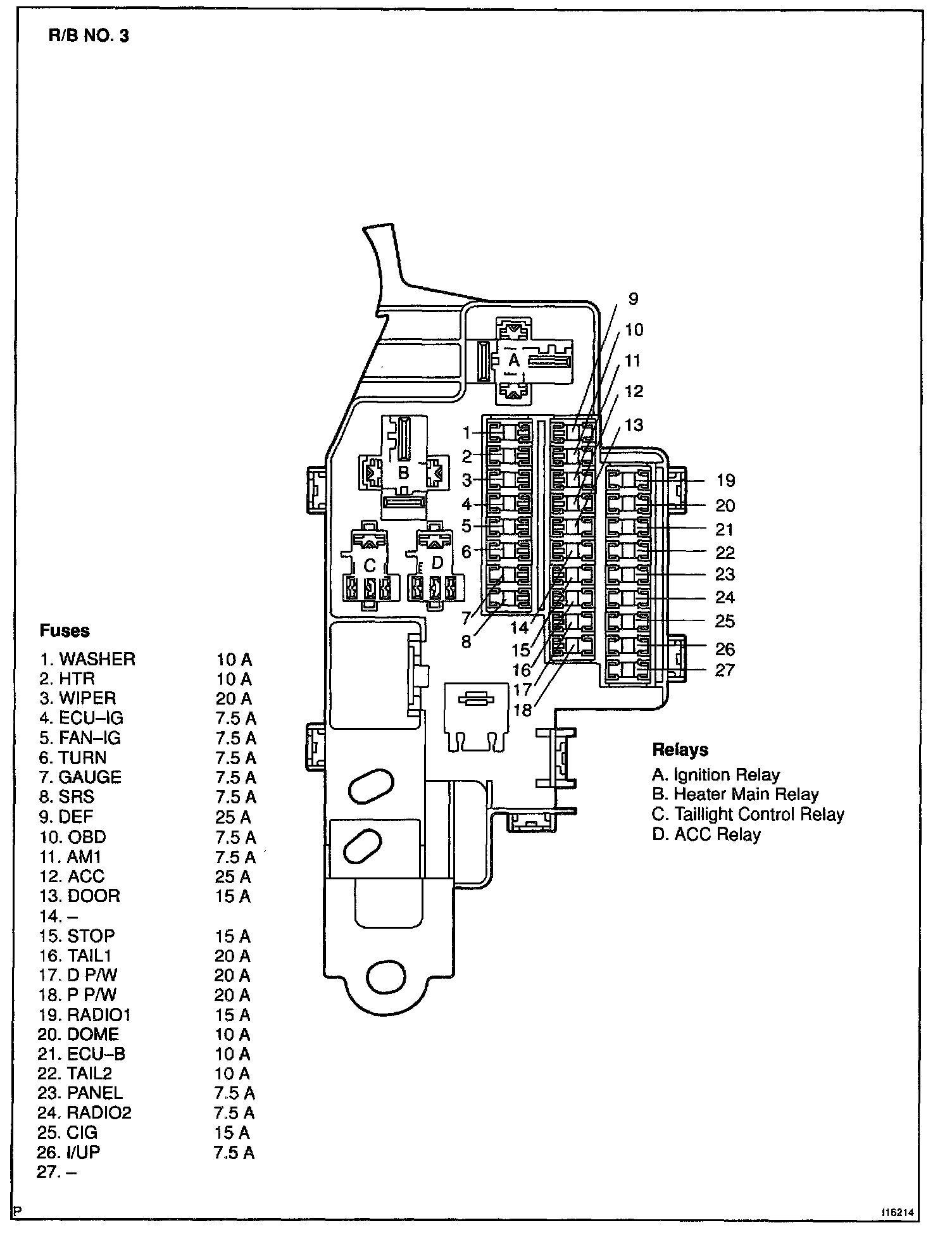

Power Source - R/B No.3:

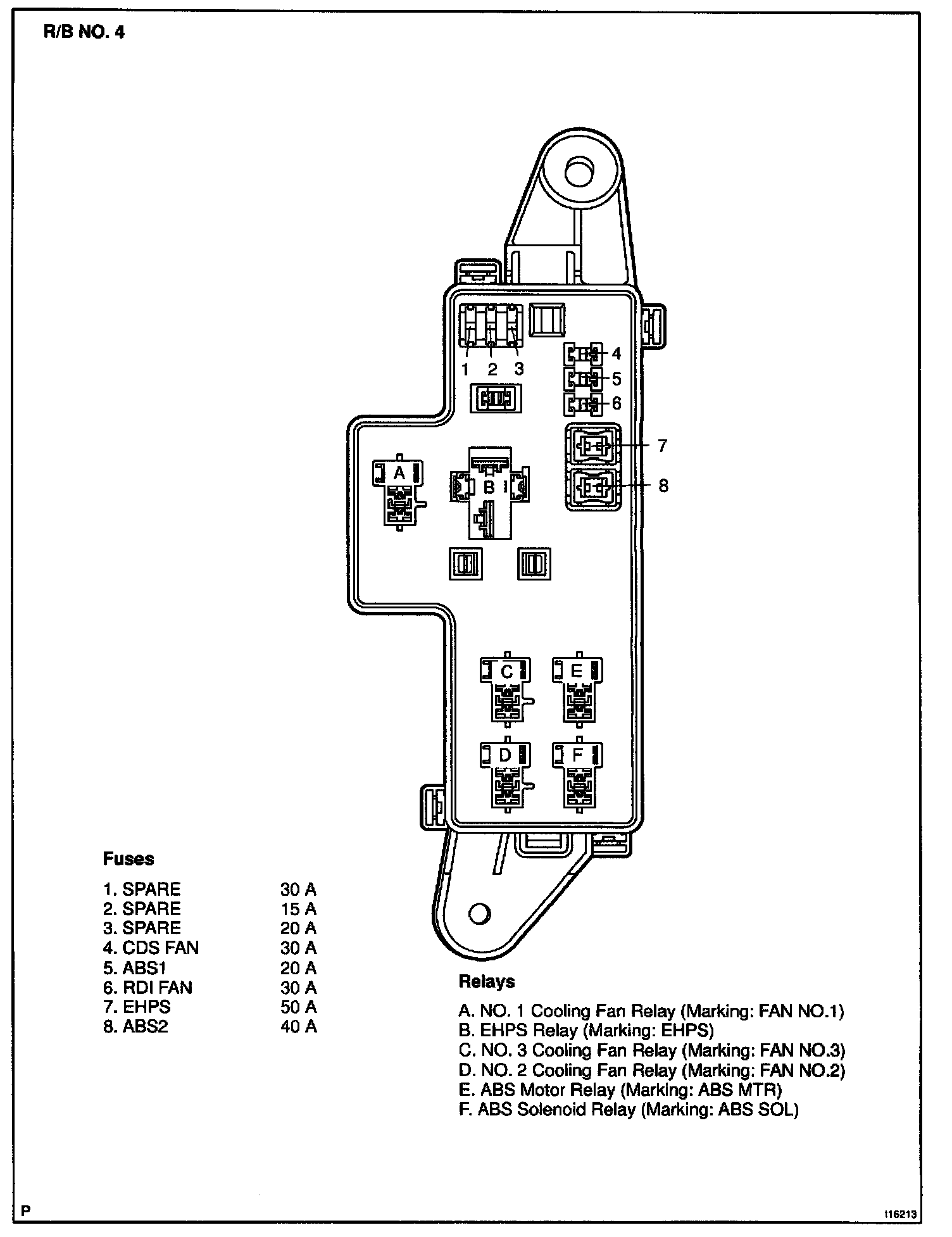

Power Source - R/B No.4:

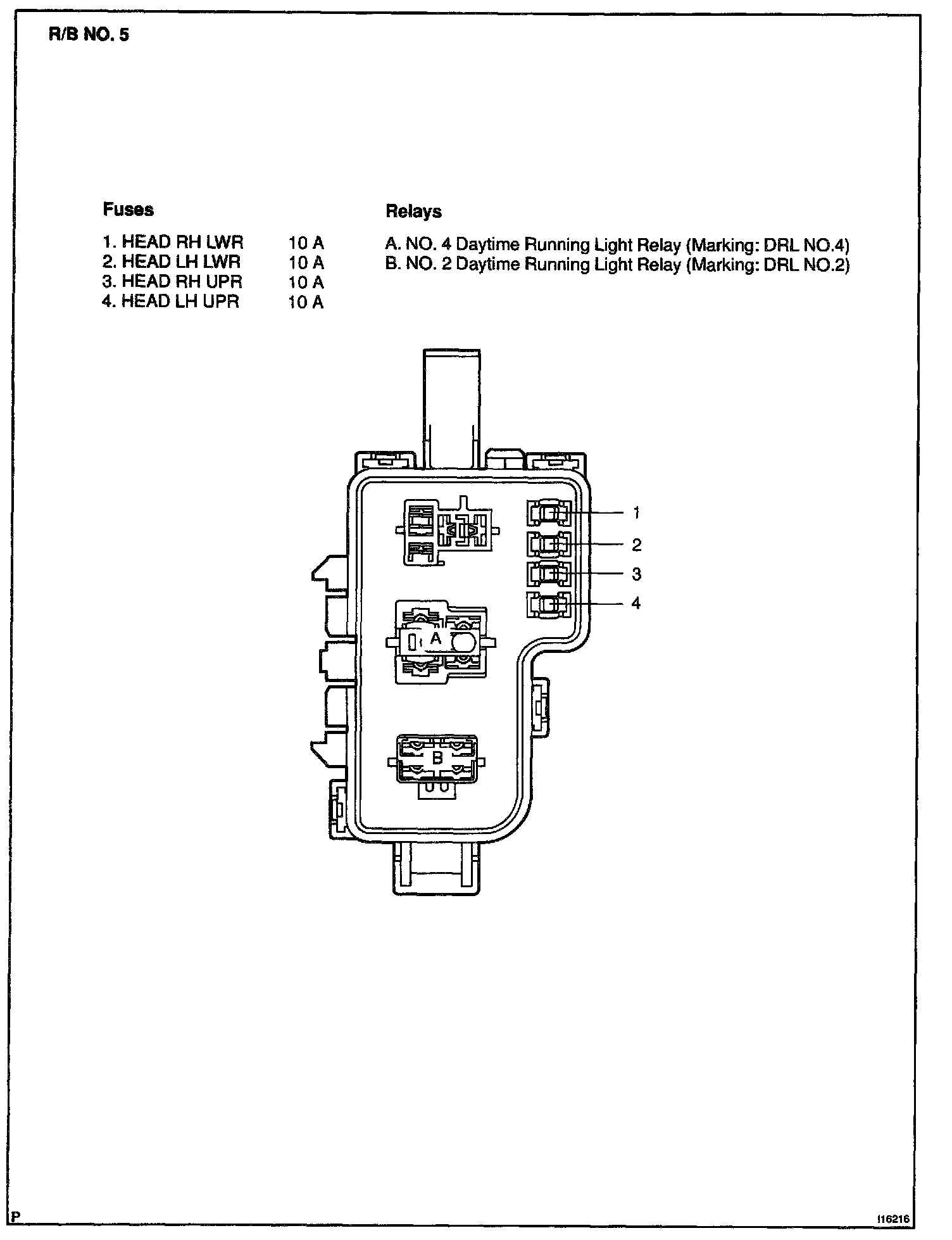

Power Source - R/B No.5:
