Fuse: Application and ID
Fusible Link Block Fuse Applications:
Engine Compartment Fuse Identification

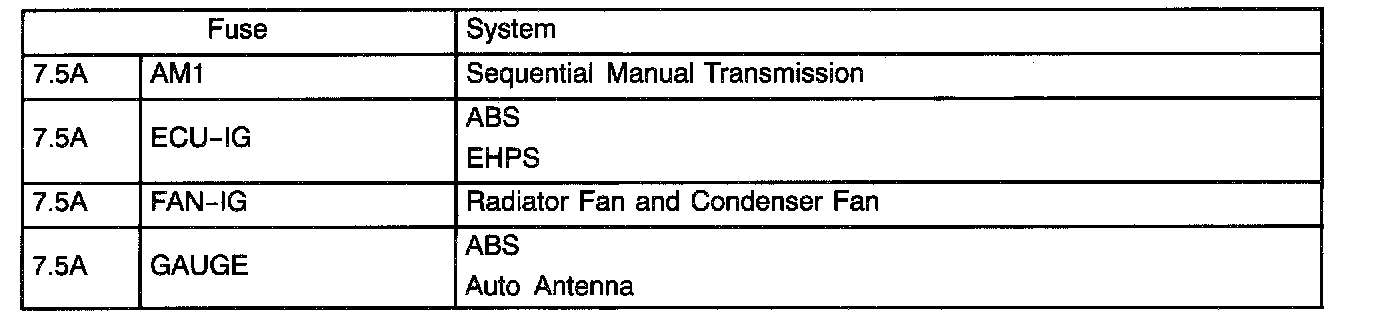

R/B No.3 Fuse Applications (Part 1):

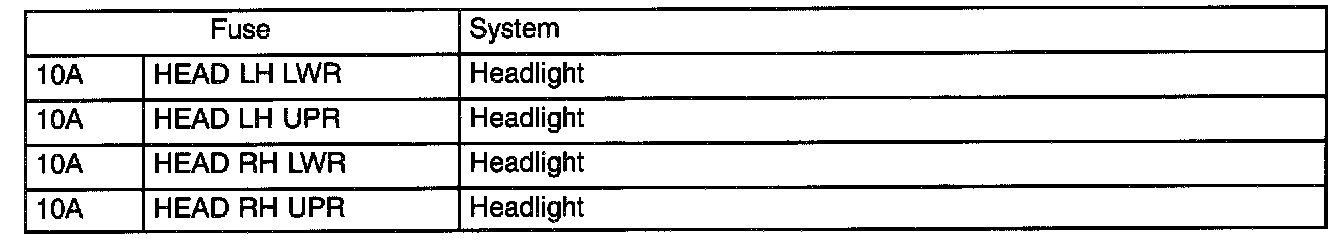

R/B No.3 Fuse Applications (Part 2):

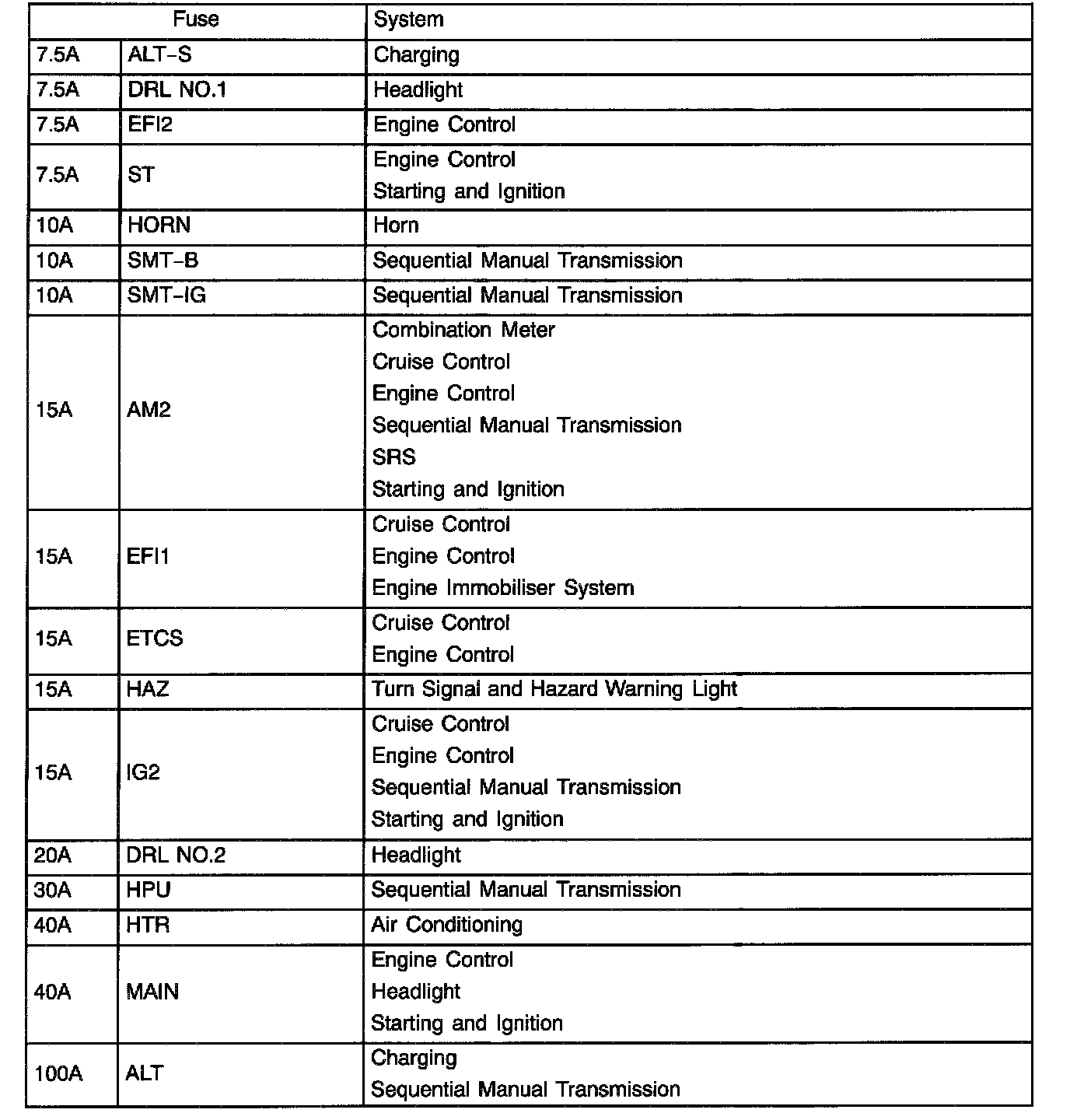

R/B No.3 Fuse Applications (Part 3):
Interior Panel Fuse Identification

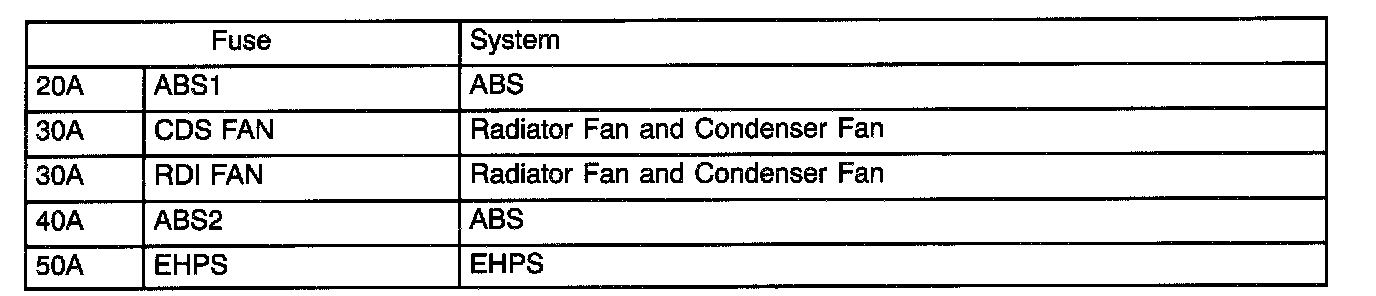

R/B No.4 Fuse Applications:

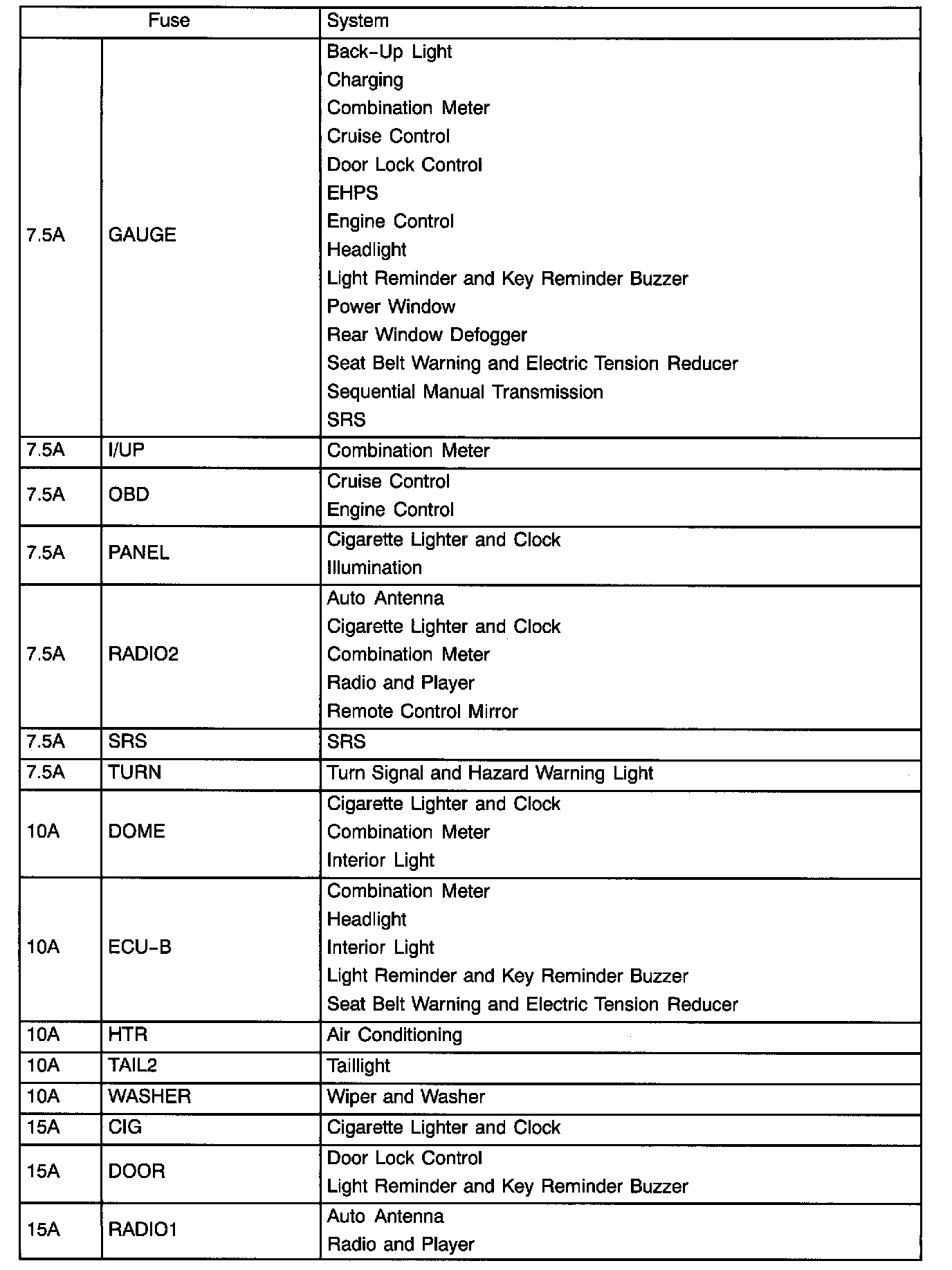

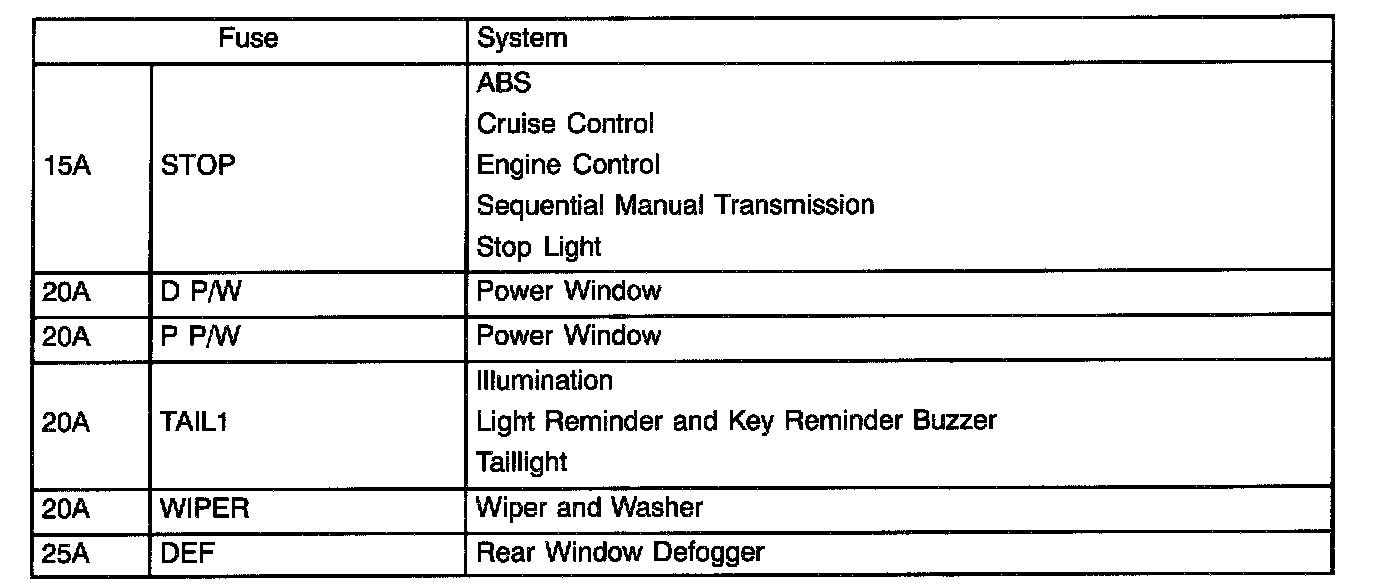

R/B No.5 Fuse Applications:
Body Fuse Identification
