Headlamp: Service and Repair

REMOVAL

1. REMOVE FRONT BUMPER COVER
2. REMOVE LUGGAGE COMPARTMENT TRIM BOX COVER
3. REMOVE TOOL BOX
4. REMOVE HEADLIGHT

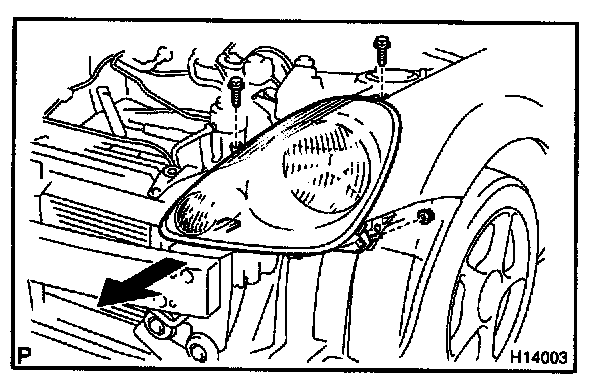

a. Remove the 2 bolts and nut.
b. Disconnect the connectors, then remove the headlight as shown in the illustration.
c. Employ the same manner described above to the other side.

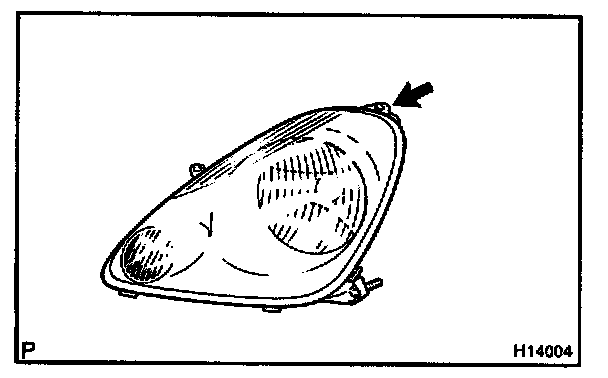

HINT: At the time of installation, if the shown part, in the illustration, of the headlight is damaged, the headlight can be reinstalled to the body by installing bracket to it.

INSTALLATION
Installation is in the reverse order of removal procedure.
