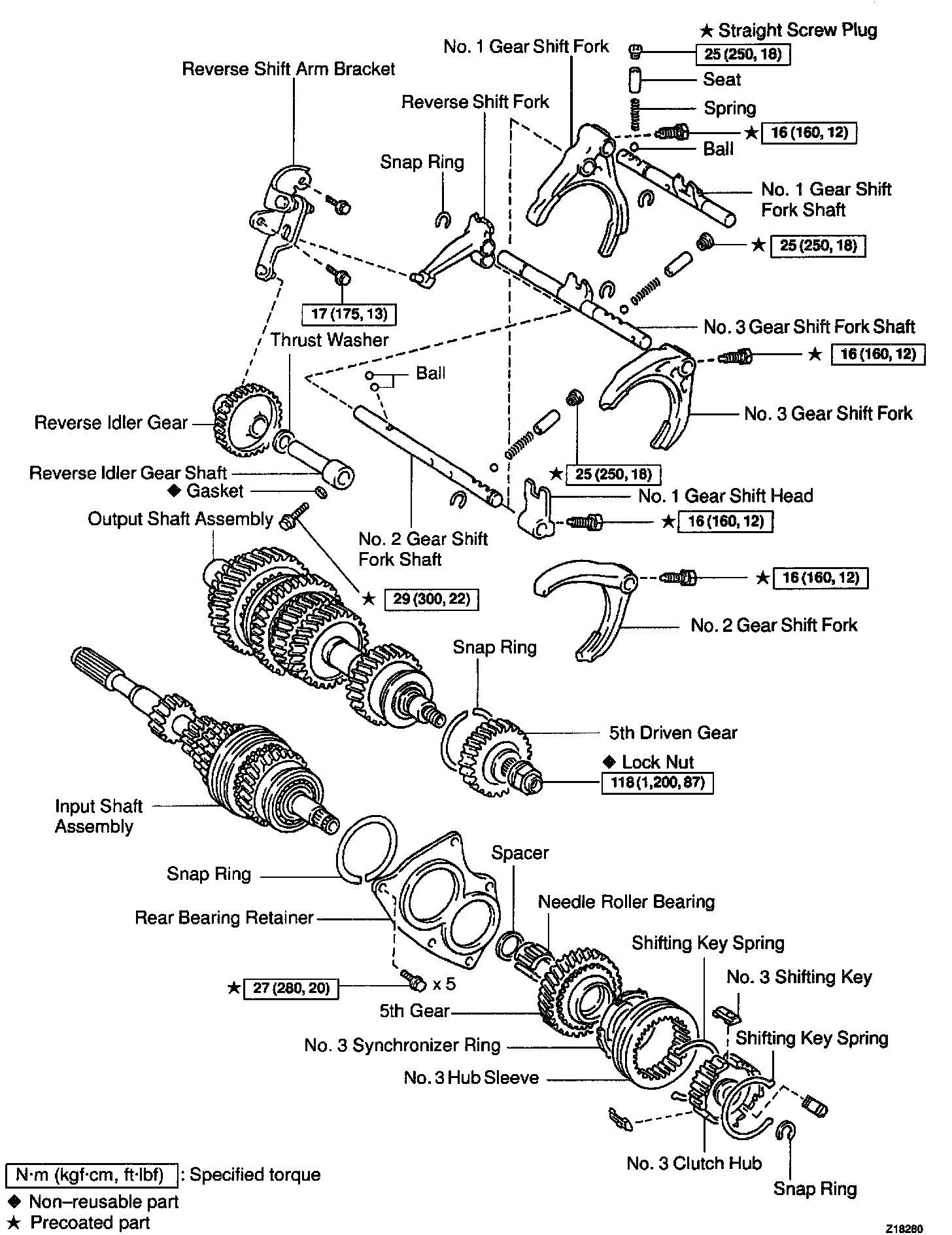

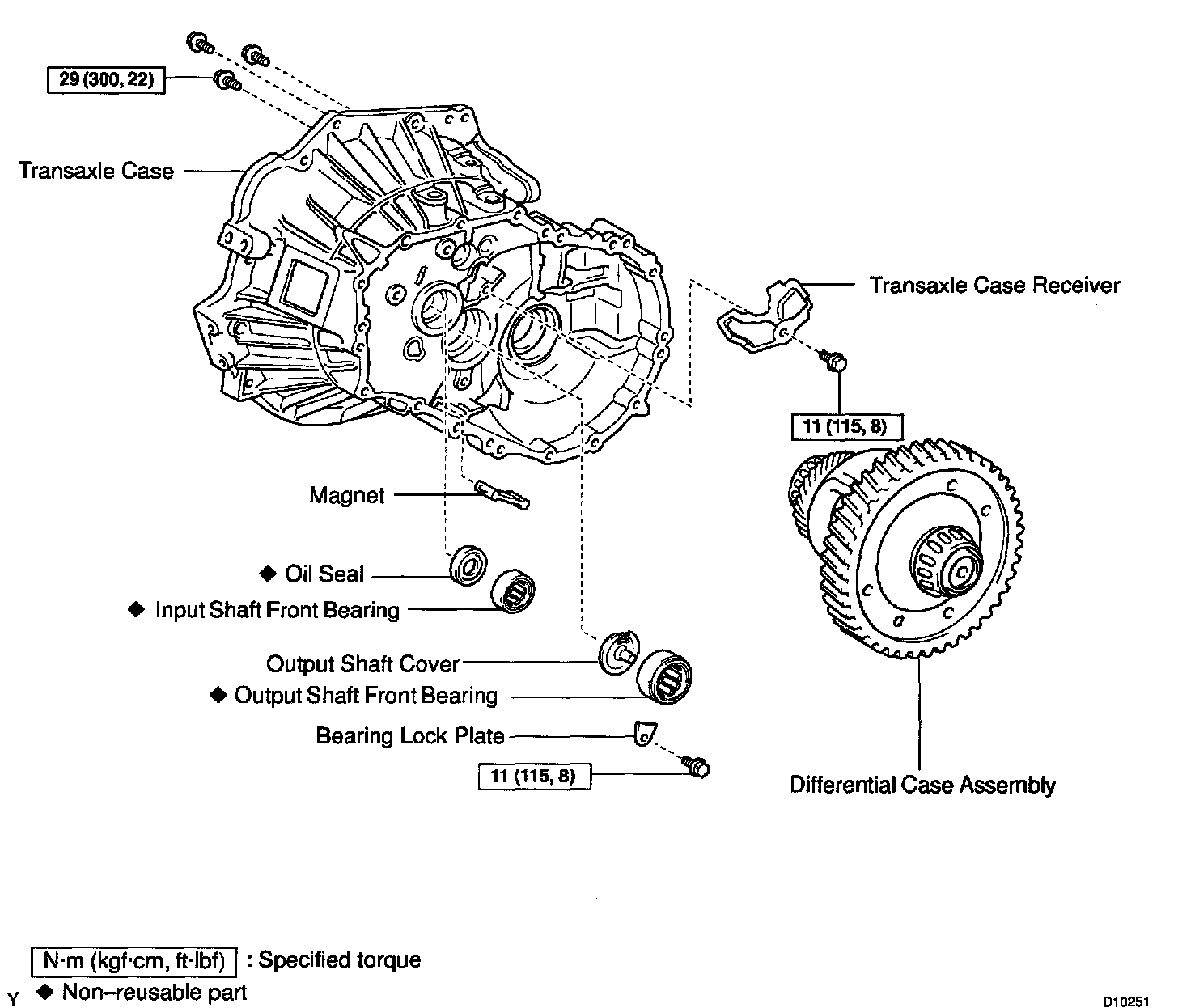

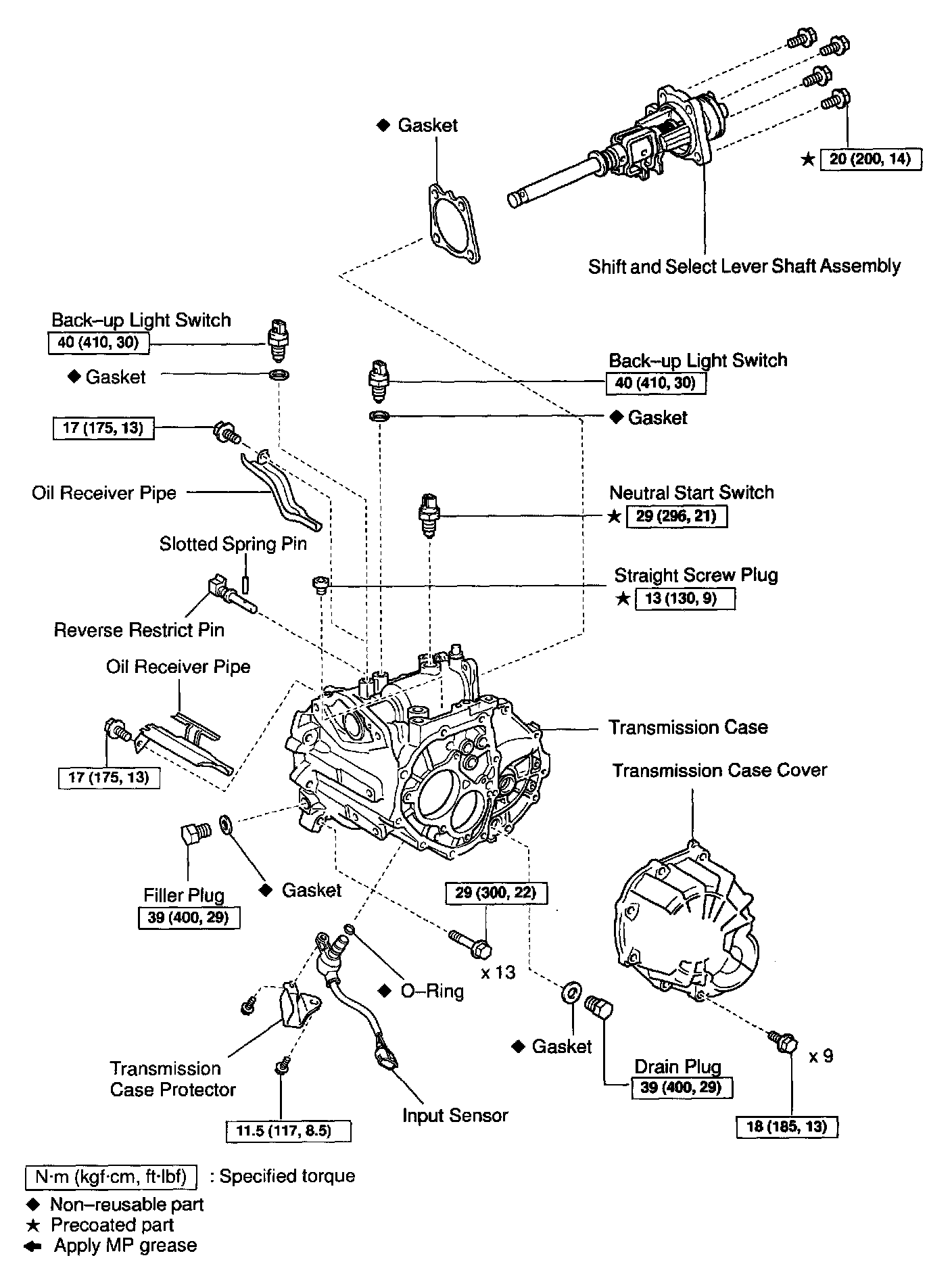

SEQUENTIAL MANUAL TRANSMISSION ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
Part 1 of 3
Part 2 of 3
Part 3 of 3
