Instrument Cluster / Carrier
Instrument Cluster / Carrier

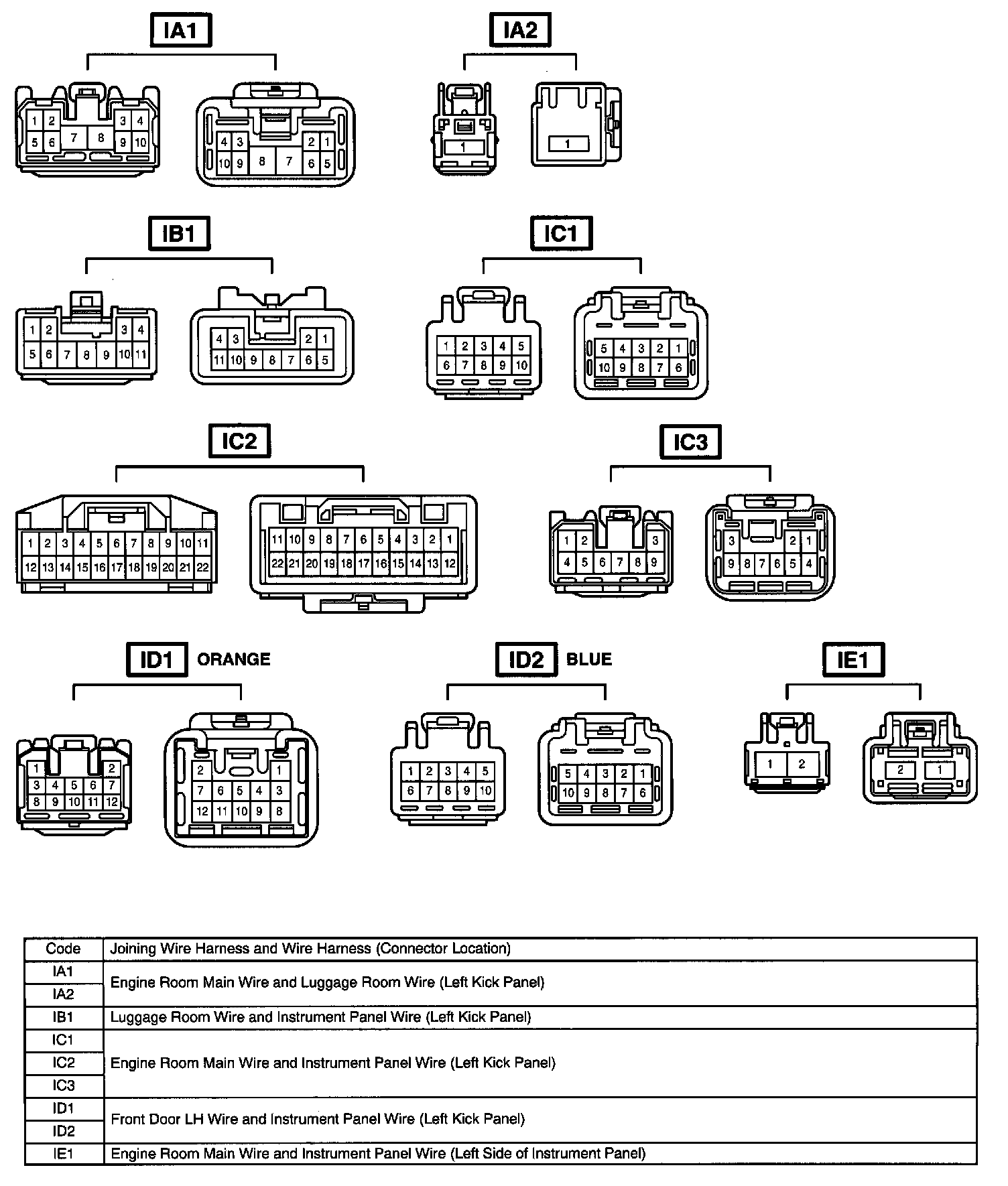

Wire Harness To Wire Harness Connectors (IA1 - IE1):

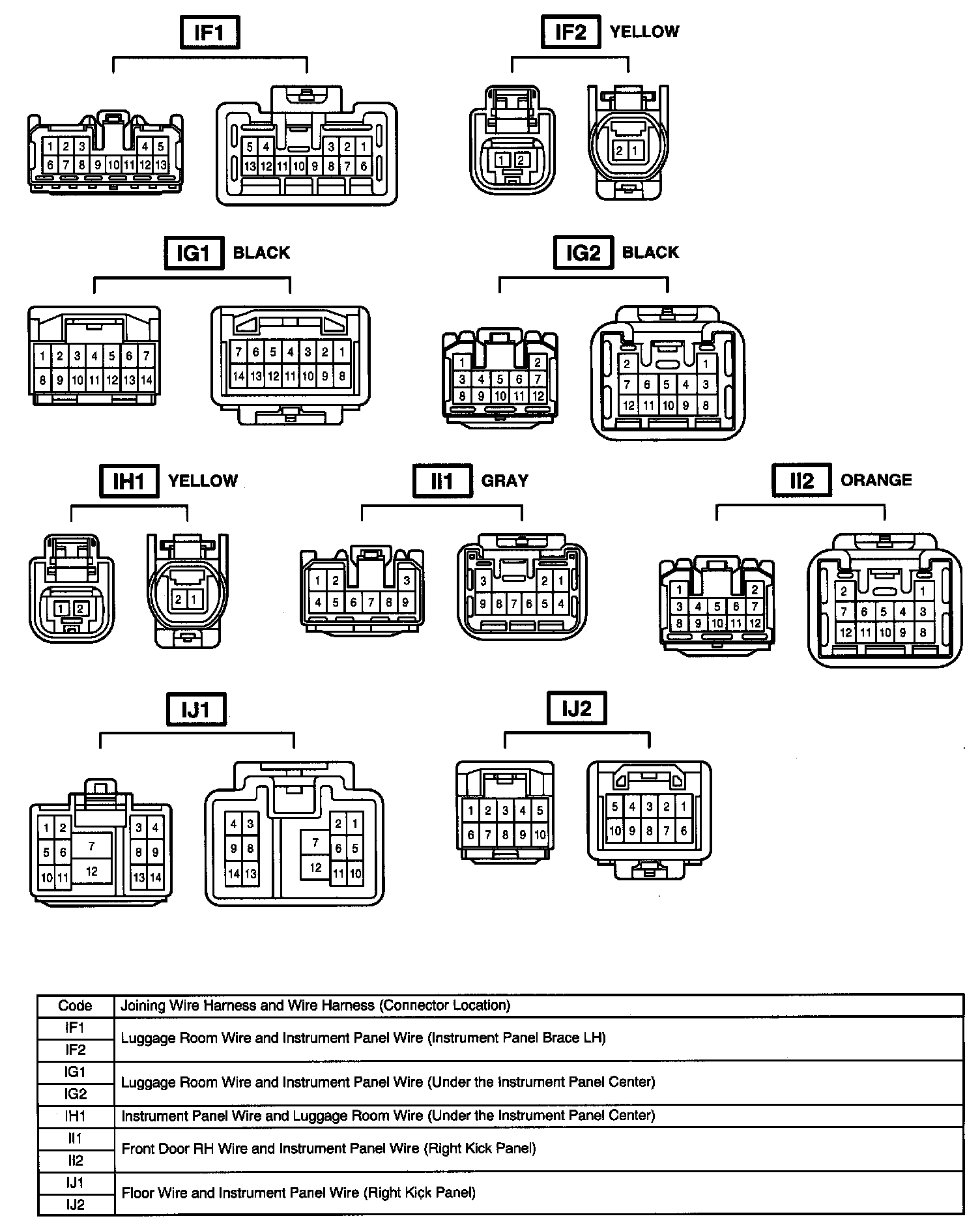

Wire Harness To Wire Harness Connectors (IF1 - IJ2):
