Pinout Values and Diagnostic Parameters

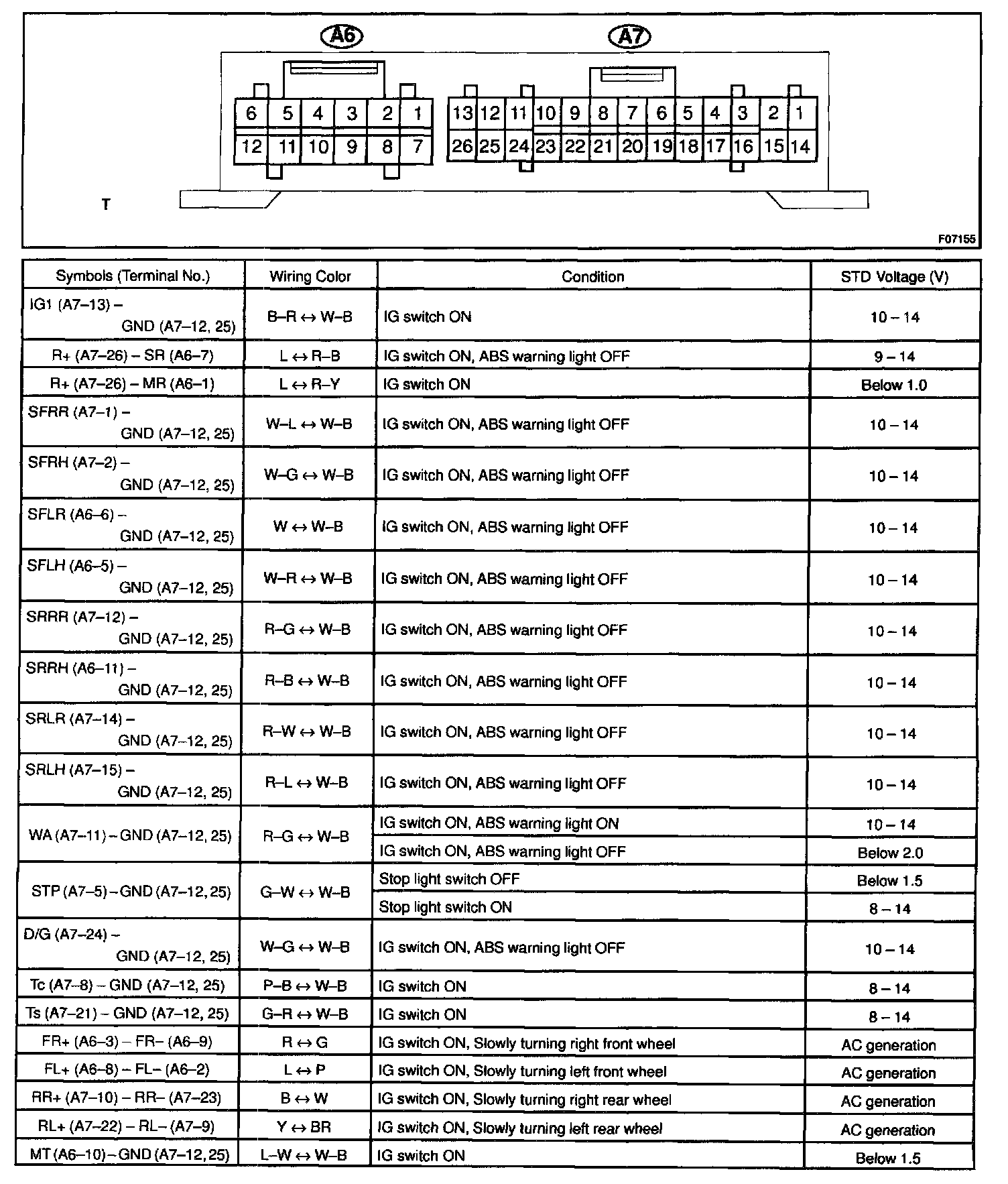

Terminals Of ECU:

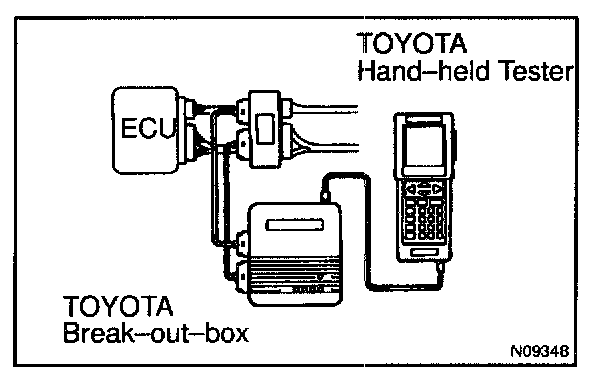

Using TOYOTA break-out-box and TOYOTA hand-held tester, measure the ECU terminal values.

1. Hook up the TOYOTA hand-held tester and TOYOTA break-out-box to the vehicle.

2. Read the ECU input/output values by following the prompts on the tester screen.

HINT:
TOYOTA hand-held tester has a "Snapshot" function. This records the measured values and is effective in the diagnosis of intermittent problems.
Please refer to the TOYOTA hand-held tester/TOYOTA break-out-box operator's manual for further details.
