ABS Light: Testing and Inspection

CIRCUIT DESCRIPTION

If the ECU detects trouble, the ABS warning light lights up while at the same time prohibiting ABS control.

At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

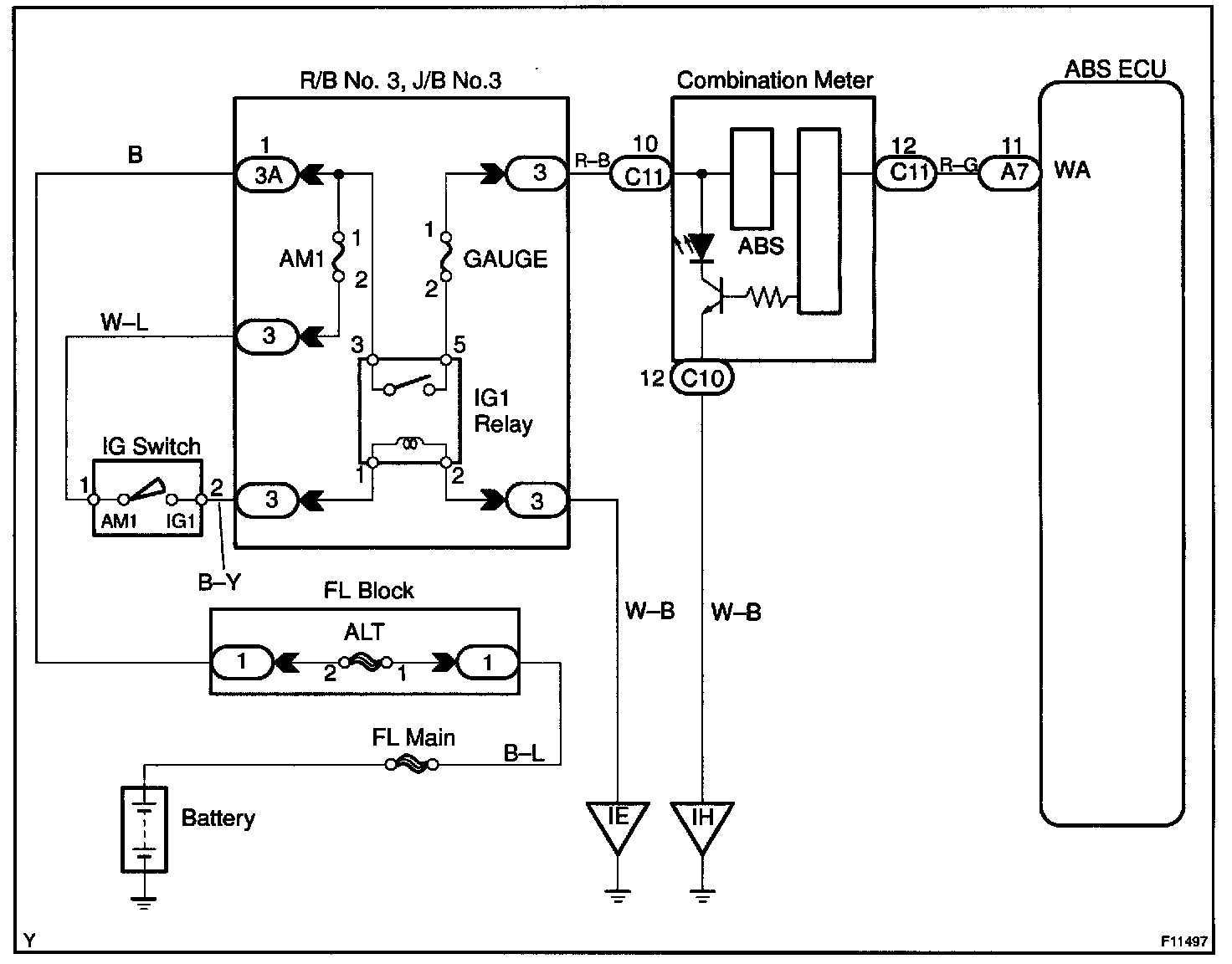

Wiring Diagram:

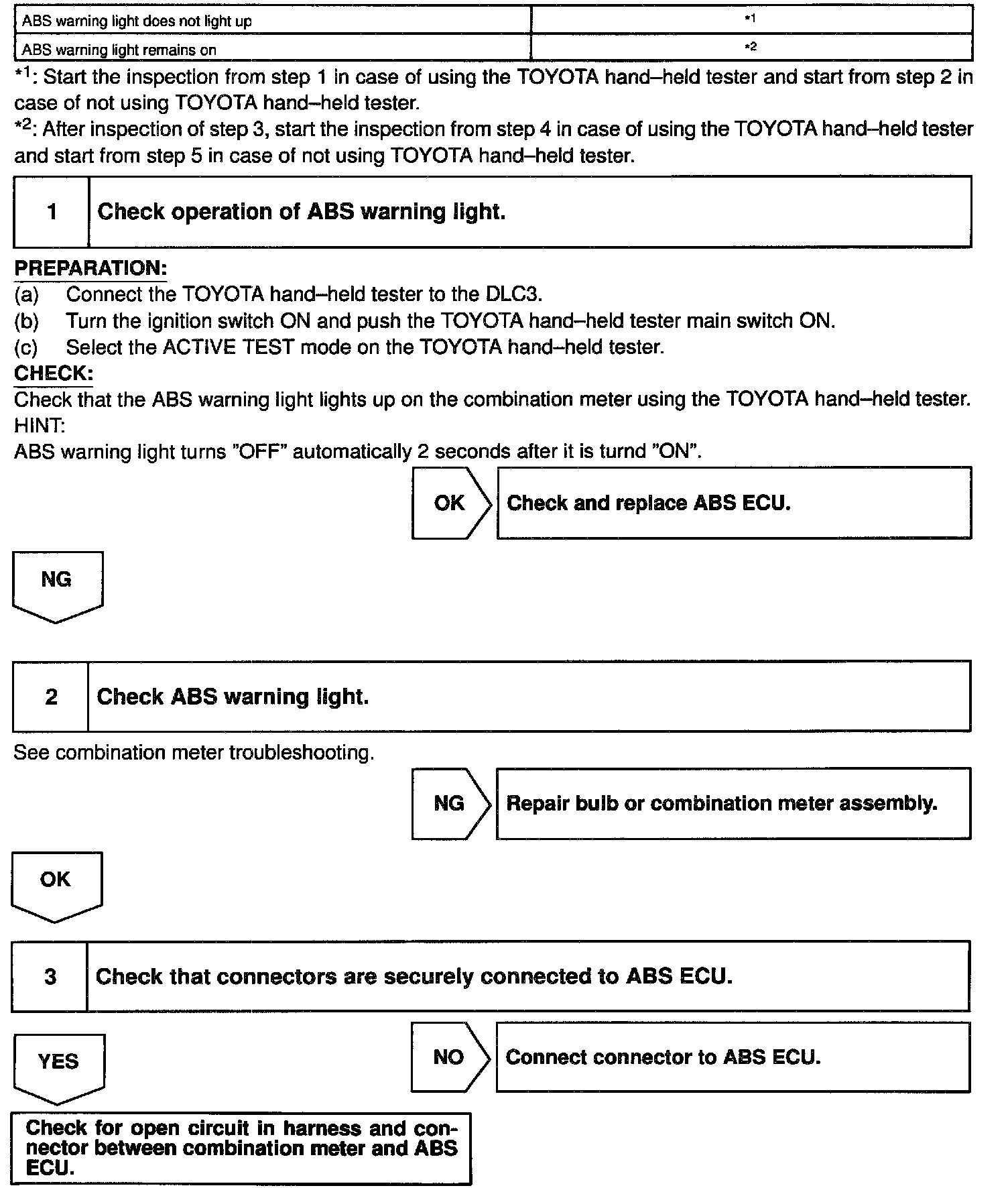

Steps 1 - 3:

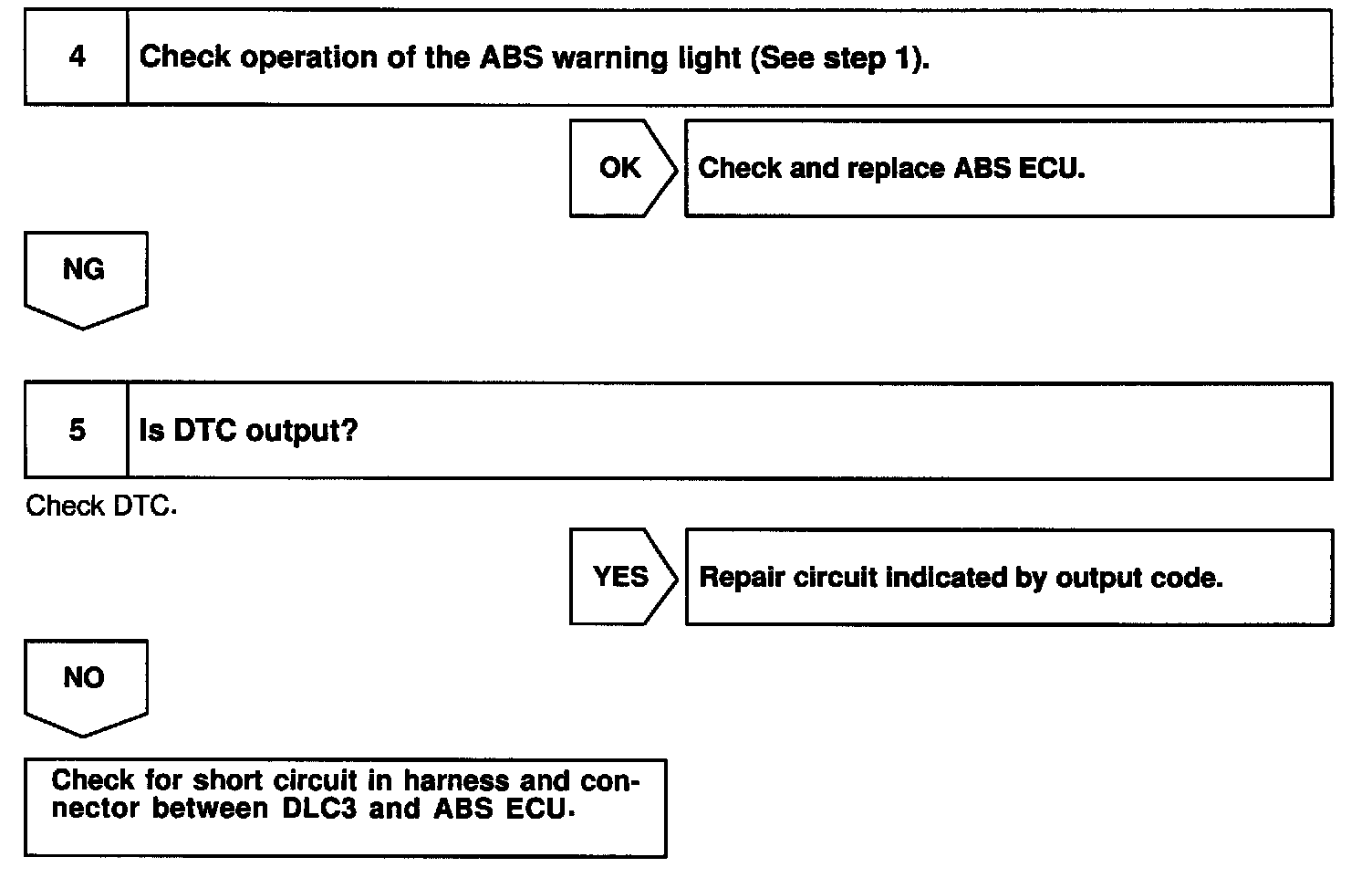

Steps 4 - 5:

INSPECTION PROCEDURE

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
