Engine Control System

CIRCUIT DESCRIPTION

Battery positive voltage is supplied to terminal BATT of the ECM even when the ignition switch is OFF for use by the DTC memory and air-fuel ratio adaptive control value memory, etc.

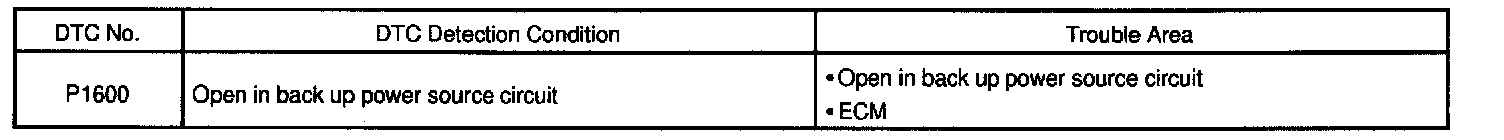

DTC Detection Condition:

HINT: If DTC P1600 appears, the ECM does not store another DTC.

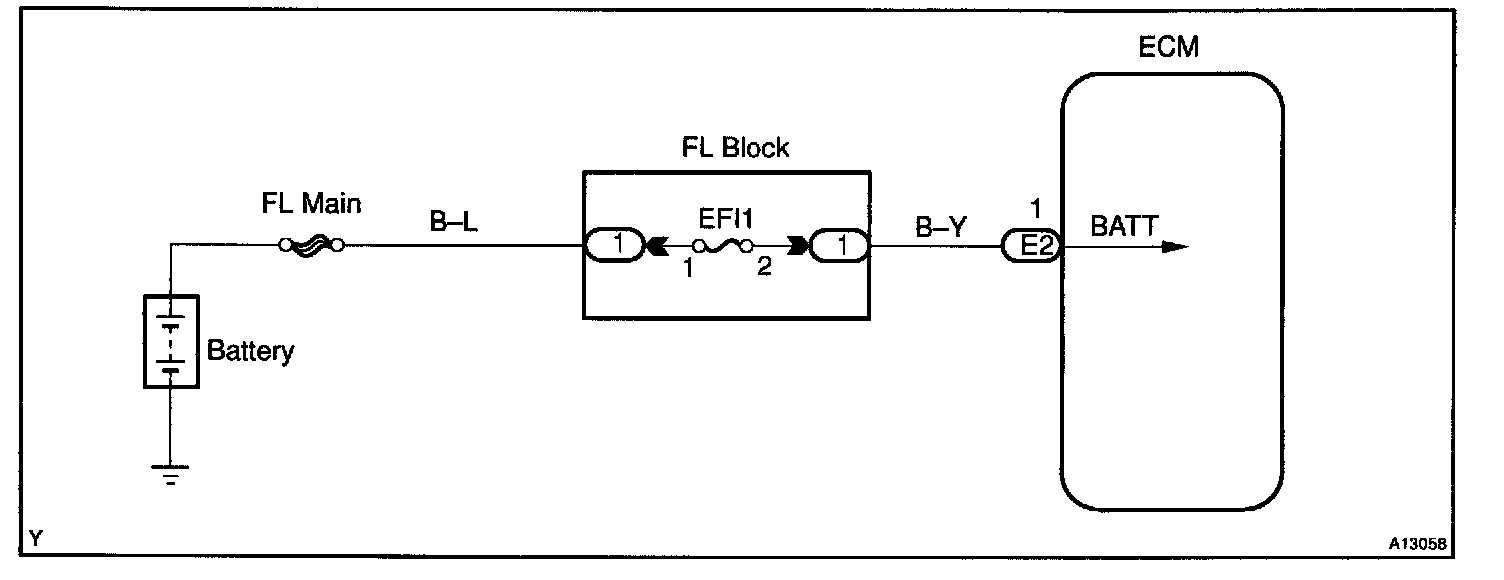

Wiring Diagram:

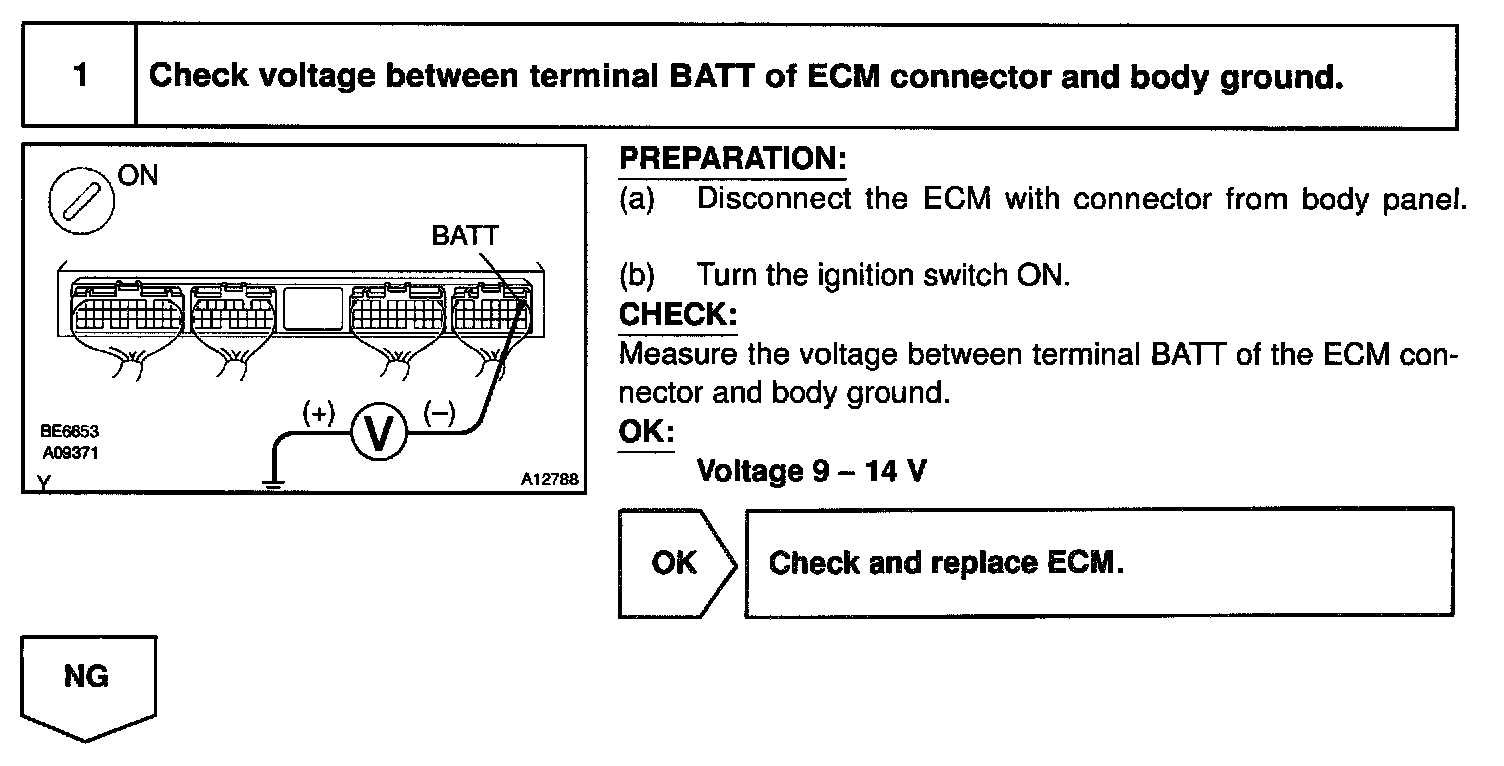

Step 1:

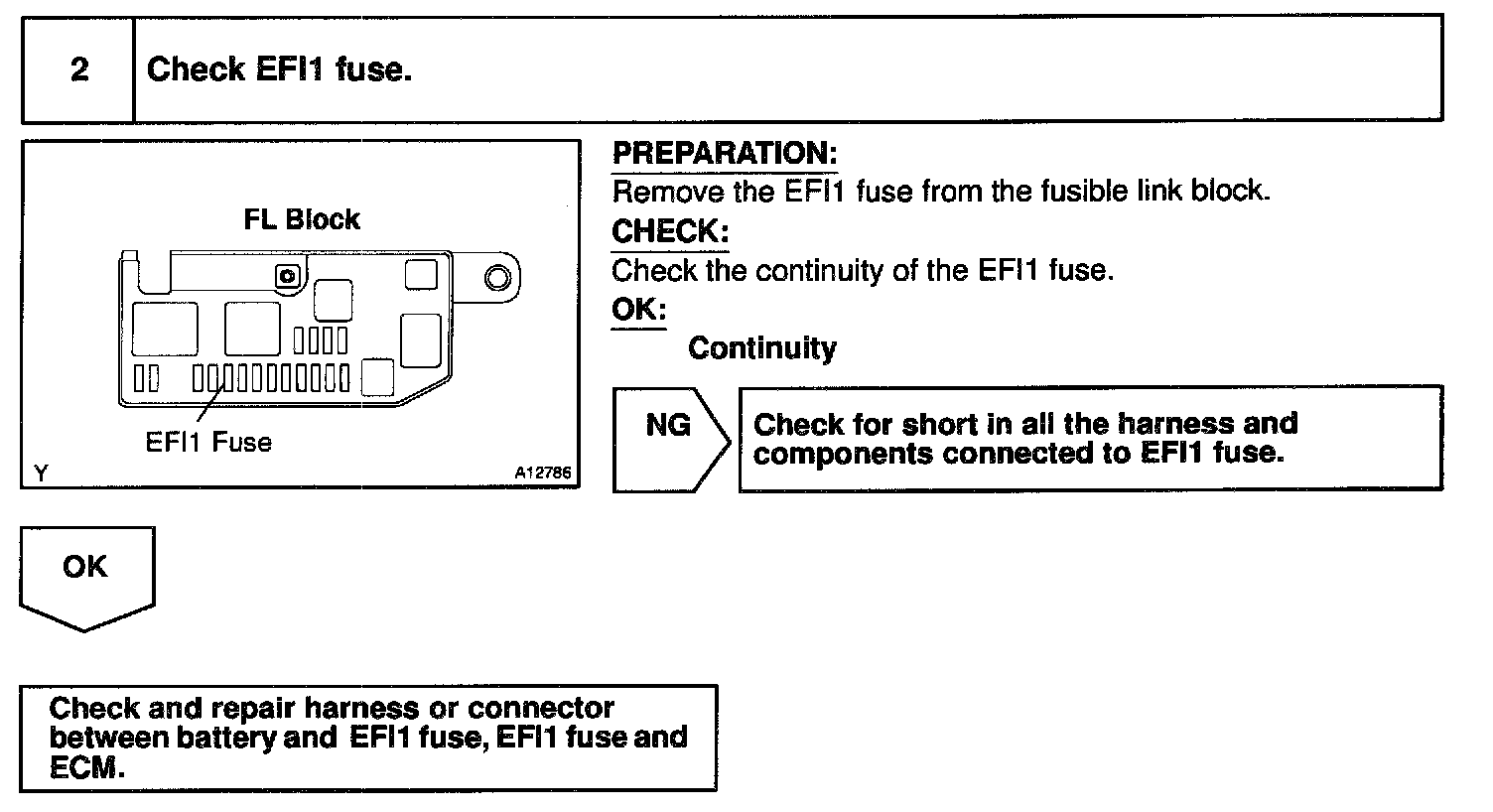

Step 2:

INSPECTION PROCEDURE

HINT: Read freeze frame data using TOYOTA hand-held tester or OBD II scan tool, as freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich etc, the time of the malfunction
