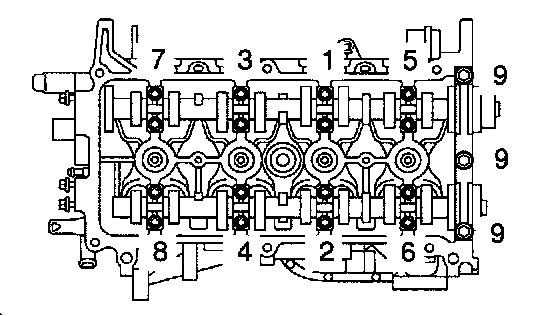

Camshaft Bearing Torque and Sequence







Camshaft Bearing Cap Torque
1st pass 23 Nm
2nd Pass 12.7 Nm
