Fuel Pressure Regulator: Service and Repair

Fuel Pressure Regulator:

REMOVAL
1. REMOVE FUEL PUMP ASSEMBLY FROM FUEL TANK
2. REMOVE NO.2 FUEL SUCTION SUPPORT

3. REMOVE FUEL PRESSURE REGULATOR
a. Pull out the pressure regulator.
b. Remove the O-ring from the pressure regulator.



INSTALLATION




1. INSTALL FUEL PRESSURE REGULATOR

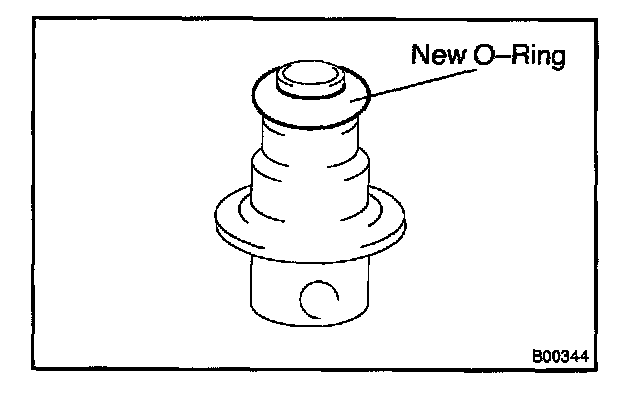

a. Install the O-ring to the pressure regulator.

HINT: Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.

b. Connect the pressure regulator from the fuel filter.

2. INSTALL NO.2 FUEL SUCTION SUPPORT
3. INSTALL FUEL PUMP ASSEMBLY FROM FUEL TANK
