Canister Purge Solenoid: Service and Repair

VSV FOR EVAPORATIVE EMISSION (EVAP)

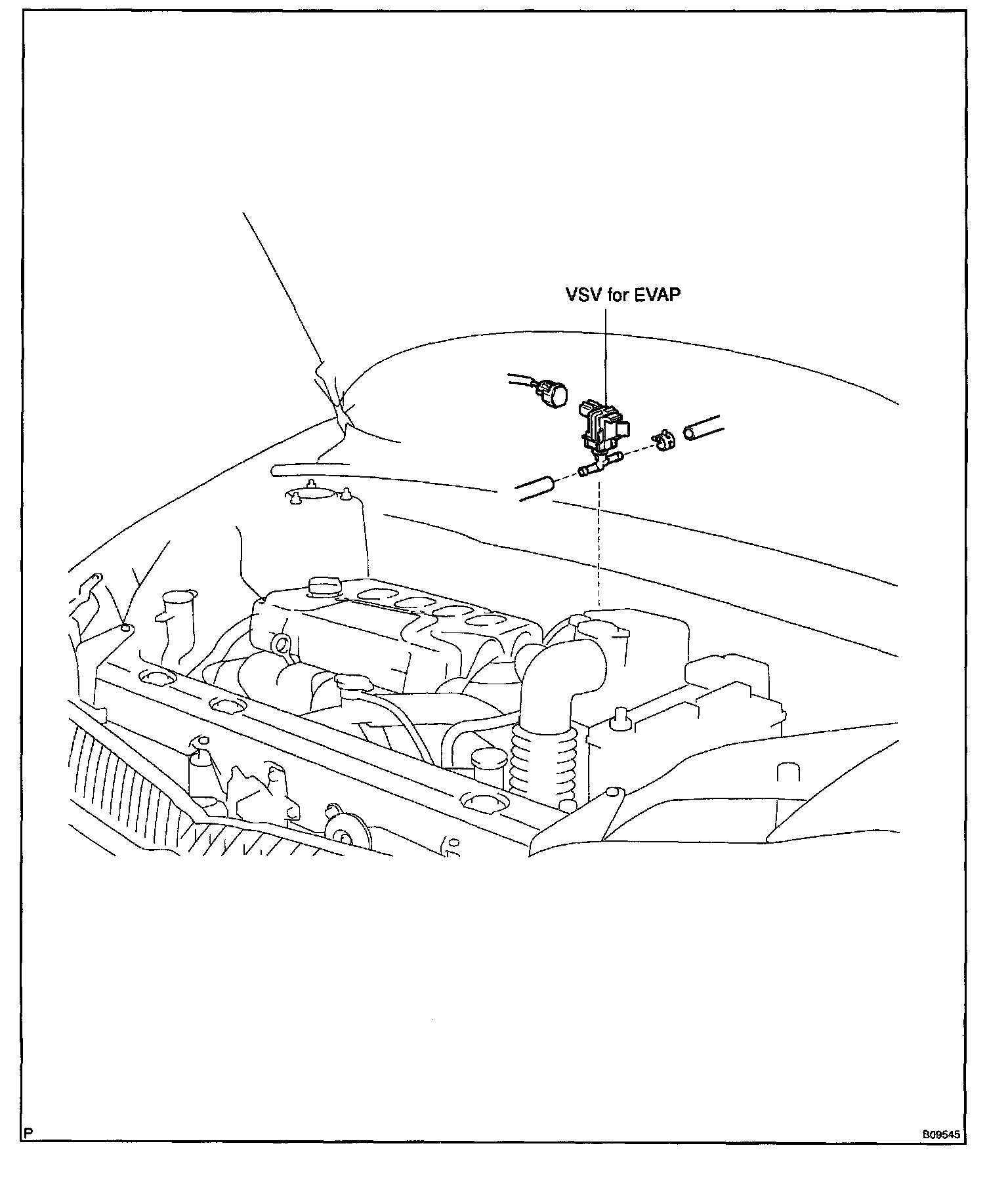

VSV For Evaporative Emission (EVAP):

1. REMOVE VSV
a. Disconnect the 2 EVAP hoses from the VSV.
b. Disconnect the VSV connector.
c. Disconnect the air flow meter connector and harness clamp from the cleaner cap.
d. Remove the cleaner cap with VSV.


2. REINSTALL VSV
a. Install the cleaner cap with the VSV.
b. Connect the air flow meter connector and harness clamp.
c. Connect the VSV connector.
d. Connect the 2 EVAP hoses to the VSV.
