Standard Values of ECU Terminals

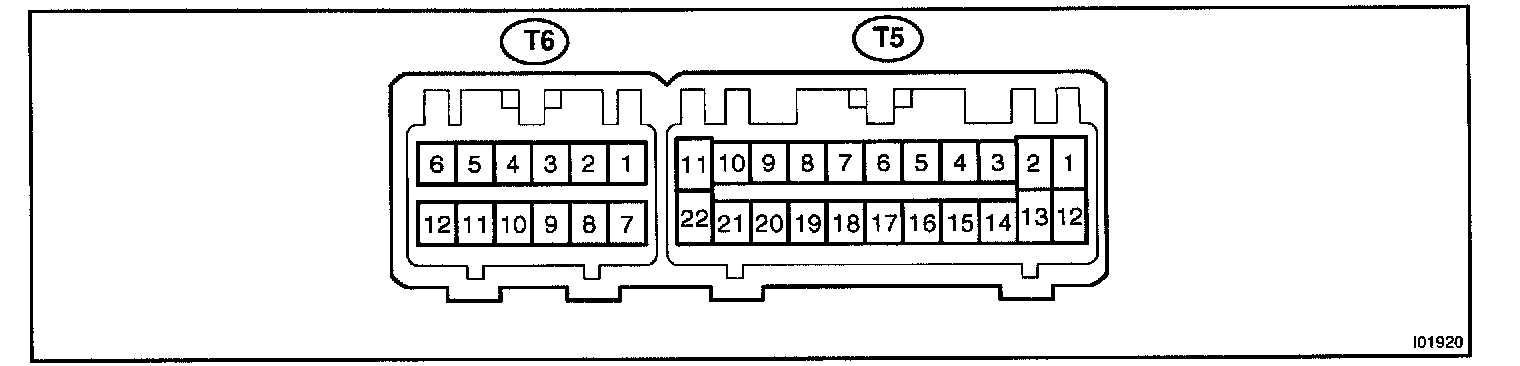

Terminals Of ECU - Connector View:

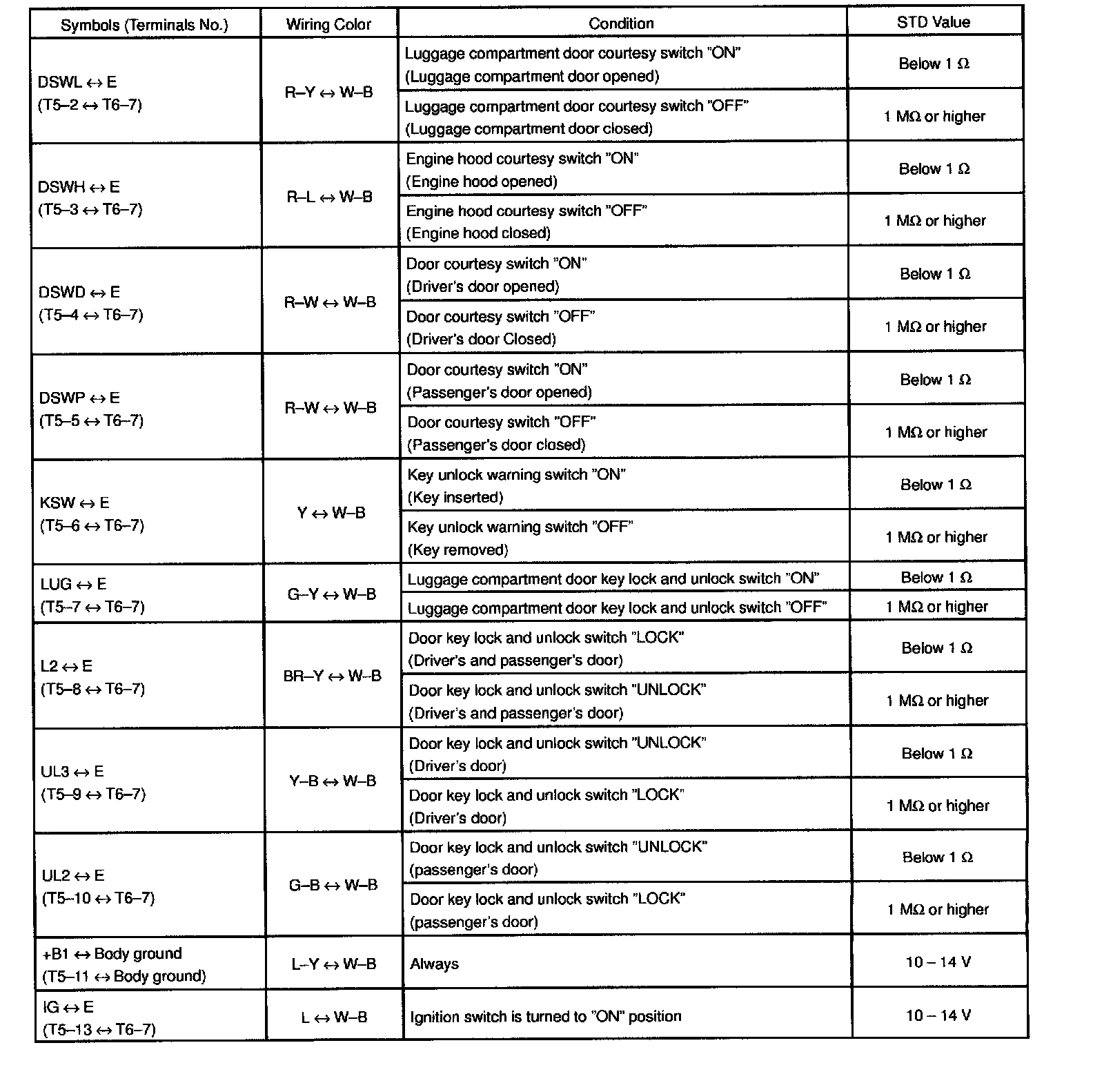

Terminals Of ECU - Connector Pin-outs (Part 1):

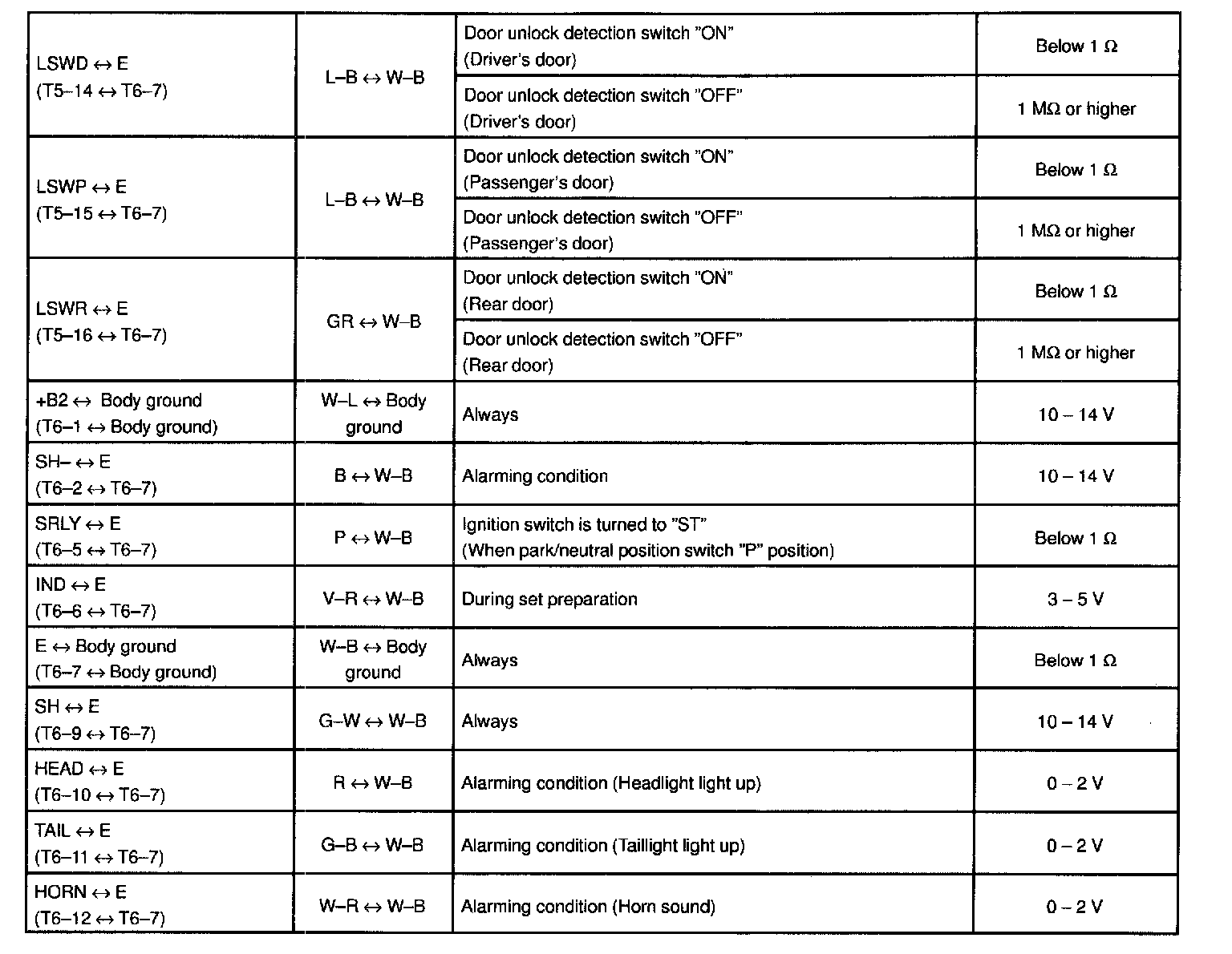

Terminals Of ECU - Connector Pin-outs (Part 2):
