Washer System - Repair Precautions

BODY
BO006-01

February 23, 2001

Title:
WASHER SYSTEM REPAIR CAUTION

Models:
'00 - '01 Celica

Introduction

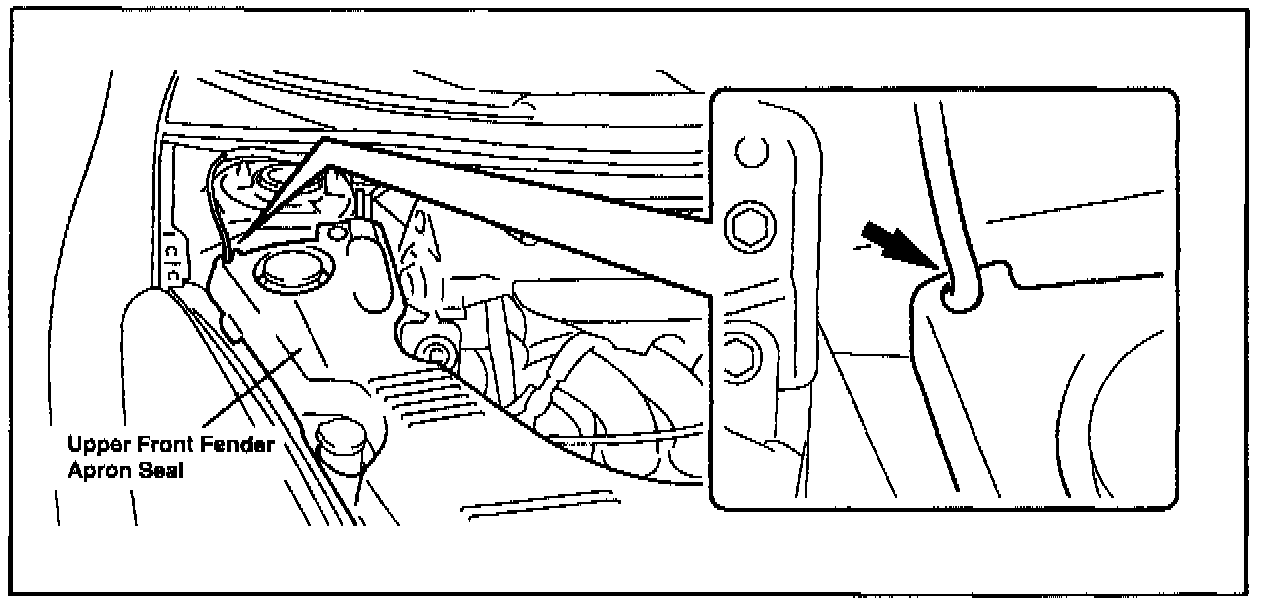

During a repair involving the removal and reinstallation of the upper front fender apron seal, take care not to pinch the washer hose when closing the hood.





The washer hose is clamped to the apron seal so that the hose cannot become pinched by the engine hood cushion.

Applicable Vehicles
^ 2000 - 2001 model year Celica vehicles.

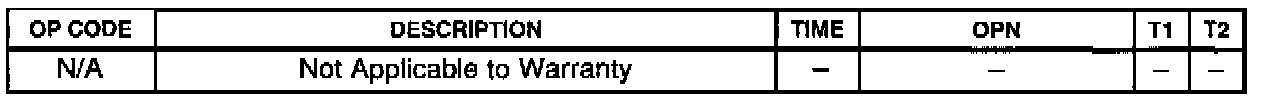

WARRANTY INFORMATION
