Shift Interlock: Testing and Inspection

INSPECTION

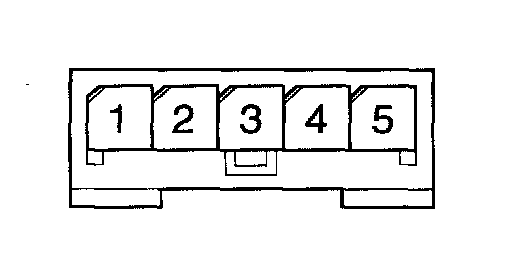

INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

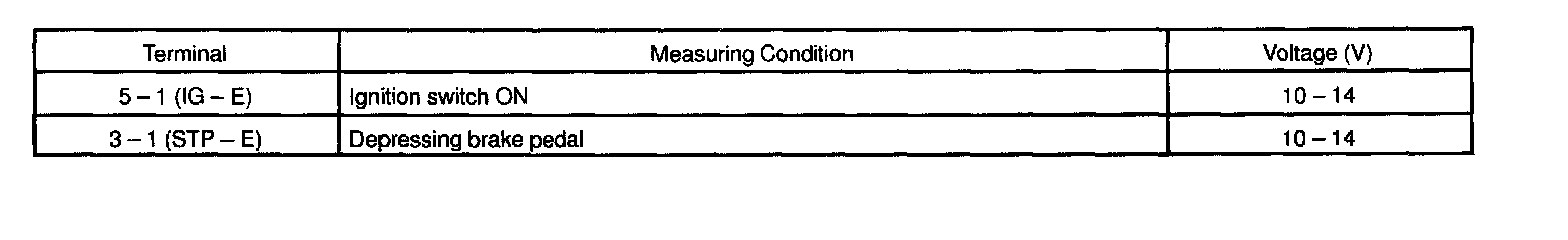

Using a voltmeter, measure the voltage at each terminal.





HINT: Do not disconnect the shift lock control unit assembly connector.
