Celica GT L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transmission and Drivetrain
>>
Flywheel
Flywheel
Flywheel
Maximum Runout
0.1 mm (0.004 inch)

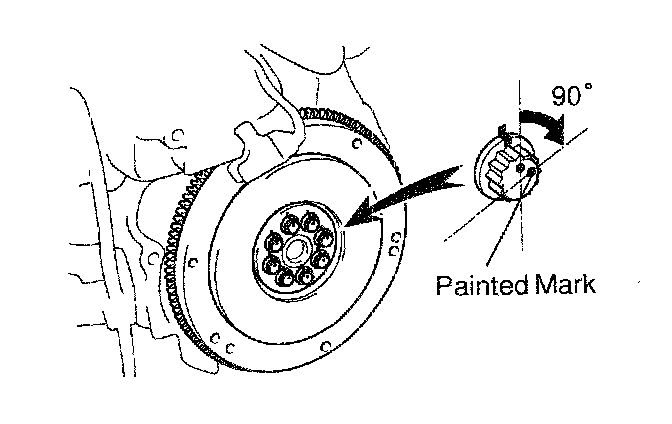

Torque
49 Nm (500 kgf-cm, 36 ft. lbs.) + 90°
