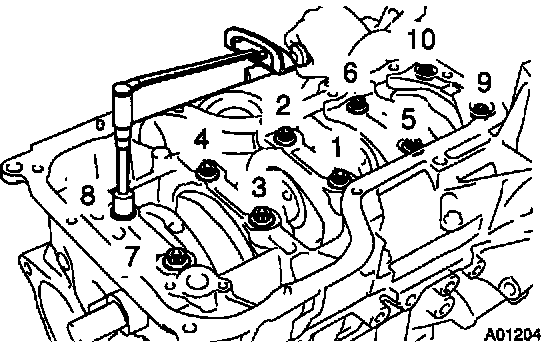

Crankshaft Main Bearing Torque and Sequence

Bearing Cap Sub-Assembly Bolts

Tightening Torque

12 Pointed Head
Step 1 22 Nm (16 ft.lb)
Step 2 44 Nm (32 ft.lb)
Step 3 45 degrees
Step 4 45 degrees

Hexagon Head
1ZZ-FE Engine 18.5 Nm (14 ft.lb)
2ZZ-GE Engine 18 Nm (13 ft.lb)
