Fuse: Application and ID

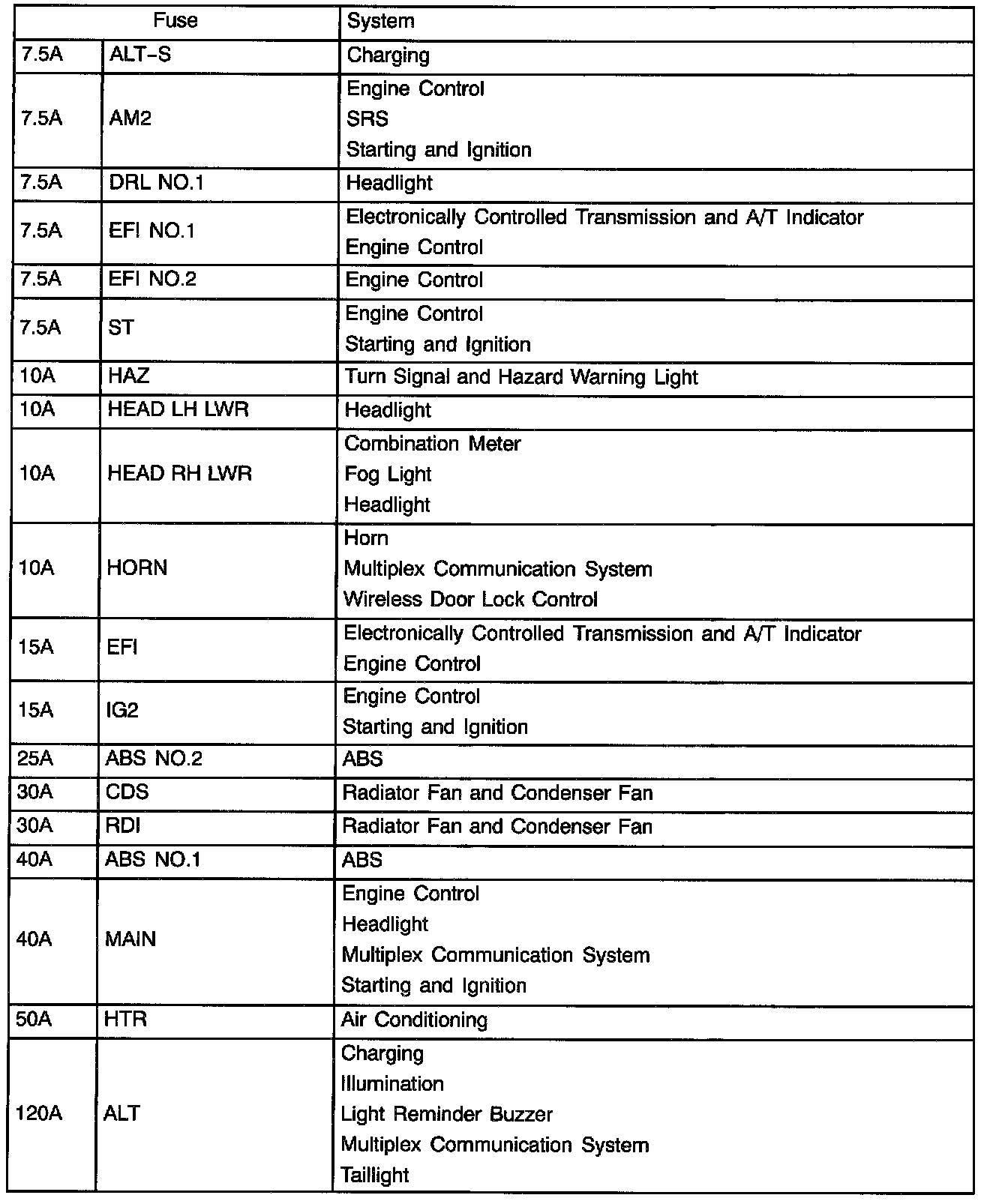

Engine Room J/B Fuse Applications:

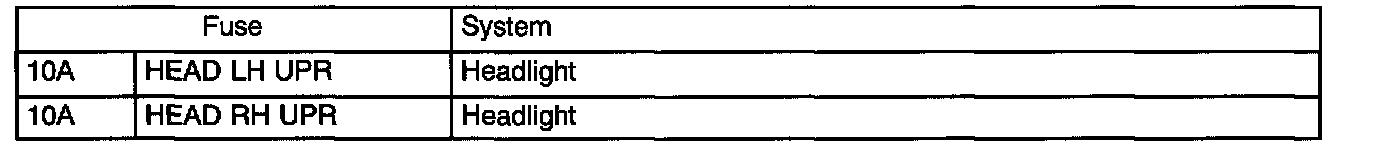

Engine Room R/B No.2 Fuse Applications:




Engine Compartment Fuse Identification

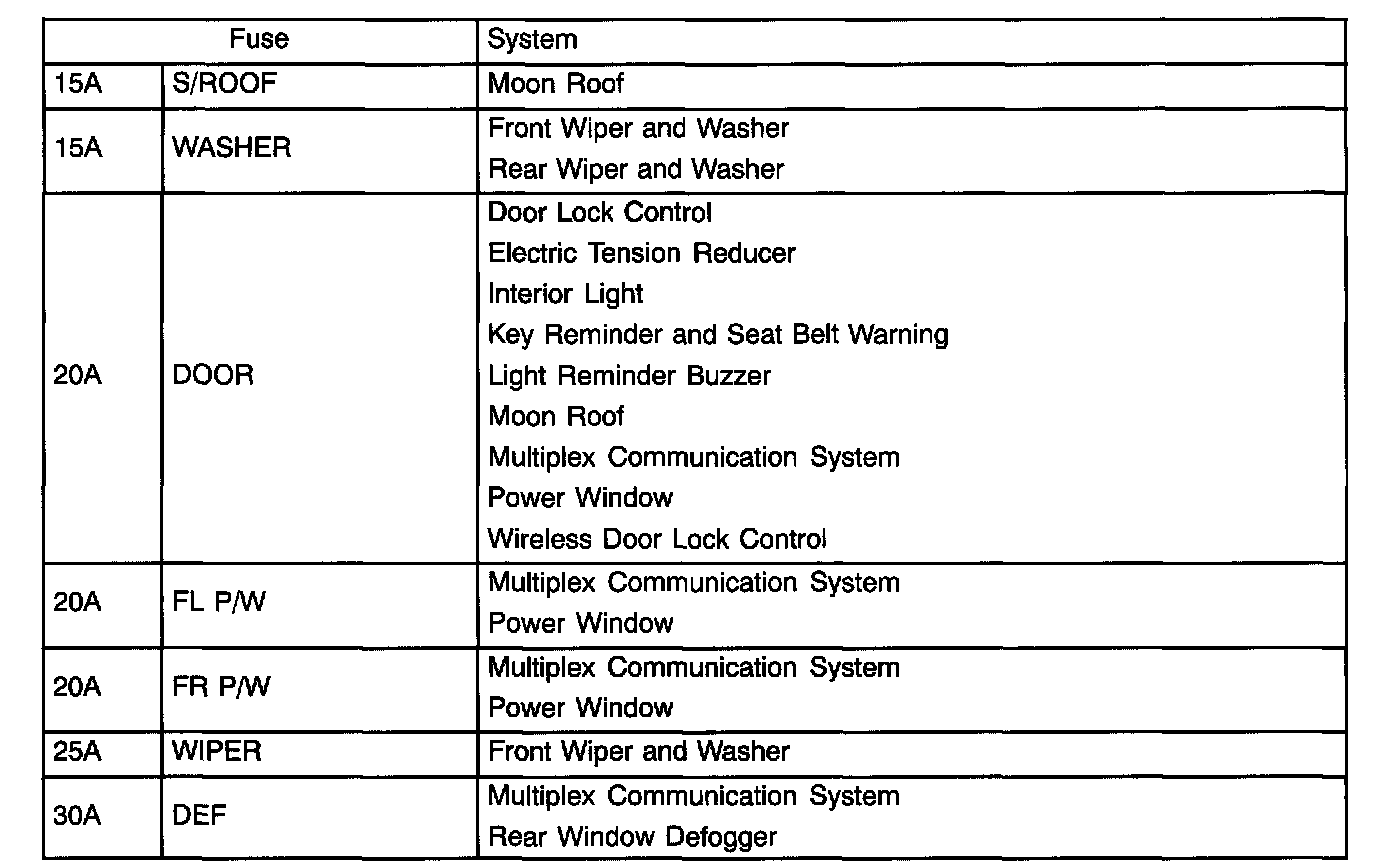

Instrument Panel J/B Fuse Applications (Part 1 of 3):

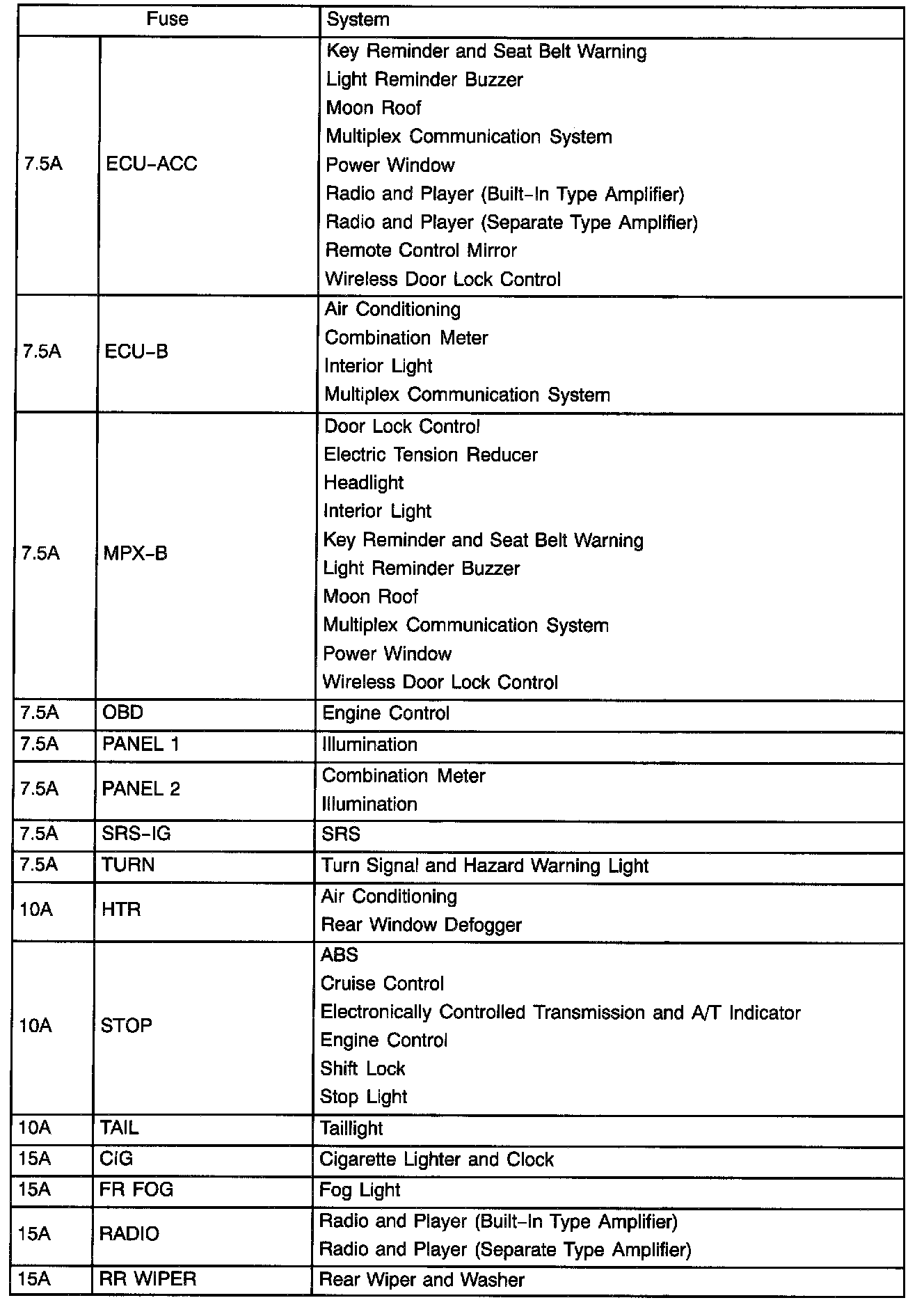

Instrument Panel J/B Fuse Applications (Part 2 Of 3):




Instrument Panel J/B Fuse Applications (Part 3 Of 3):




Interior Panel Fuse Identification
