Headlamp: Service and Repair

REMOVAL

1. REMOVE UPPER FRONT FENDER APRON SEAL
2. REMOVE UPPER RADIATOR SUPPORT SEAL
3. REMOVE FRONT BUMPER COVER
4. REMOVE HEADLIGHT

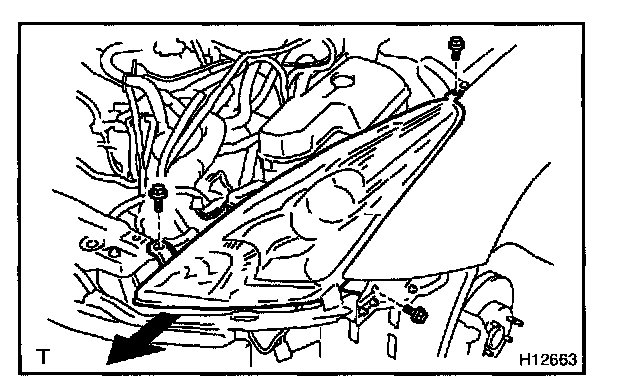

a. Remove the 3 bolts.
b. Disconnect the connectors, then remove the headlight as shown in the illustration.




c. Employ the same manner described above to the other side.

HINT: At the time of installation, please refer to the following item.

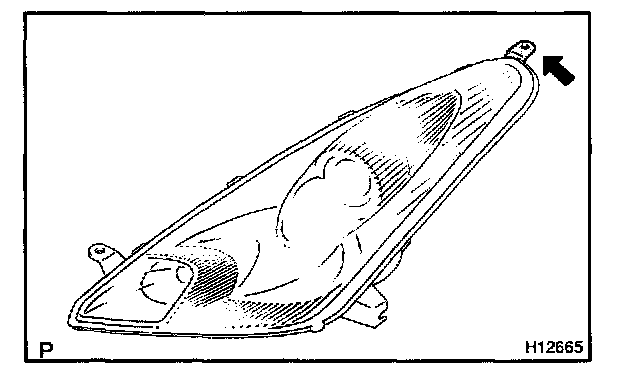

If the shown part of the headlight is damaged, the headlight can be reinstalled to the body by installing a bracket to it.

INSTALLATION
Installation is in the reverse order of removal.
