Ground Locations

Body Ground Points & Harness To Harness Connectors:

Ground Location
BI Roof Left
BJ Luggage Room Left
BK Back Door Left
BL Back Panel Center

Connector Location
BA1 Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BA2 Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BB1 Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)
BB2 Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)

Engine Compartment Ground Points & Harness To Harness Connectors:

Ground Location
EA Front Right Fender
EB Front Left Fender
EC Cylinder Head Cover LH
ED Cylinder Head Cover LH
EM Front Left Fender

Connector Location
EA1 Engine Wire and Engine Room Main Wire (Inside of Engine Room R/B No.1)
EA2 Engine Wire and Engine Room Main Wire (Inside of Engine Room R/B No.1)
EB1 Engine No. 4 Wire and Engine Wire (Under the Intake Manifold)

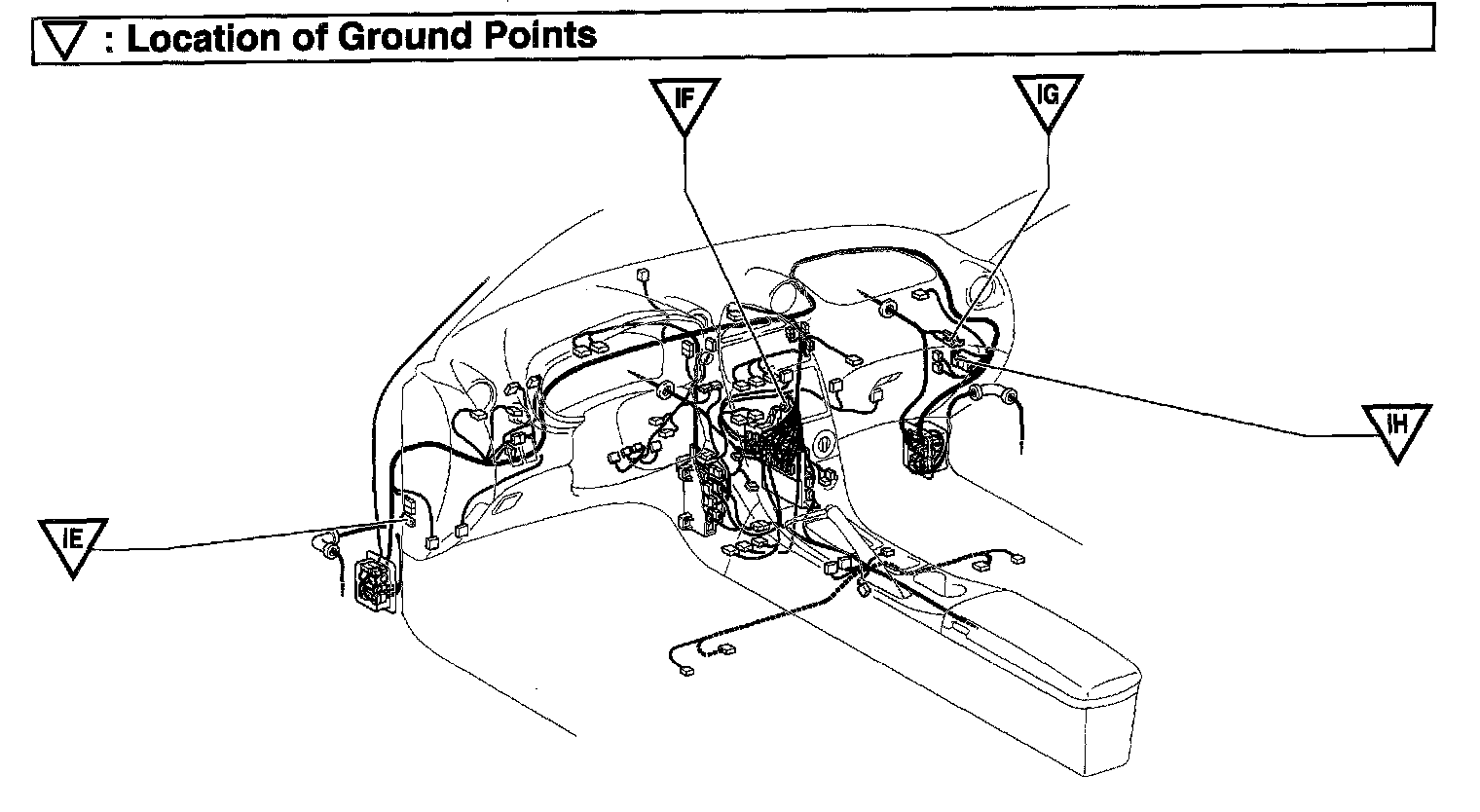

Instrument Panel / Console:

Ground Location
IE Cowl Side Panel LH
IF Instrument Panel Brace RH
IG Cowl Side Panel RH
IH Cowl Side Panel RH
