Hydraulic Control Assembly - Antilock Brakes: Service and Repair

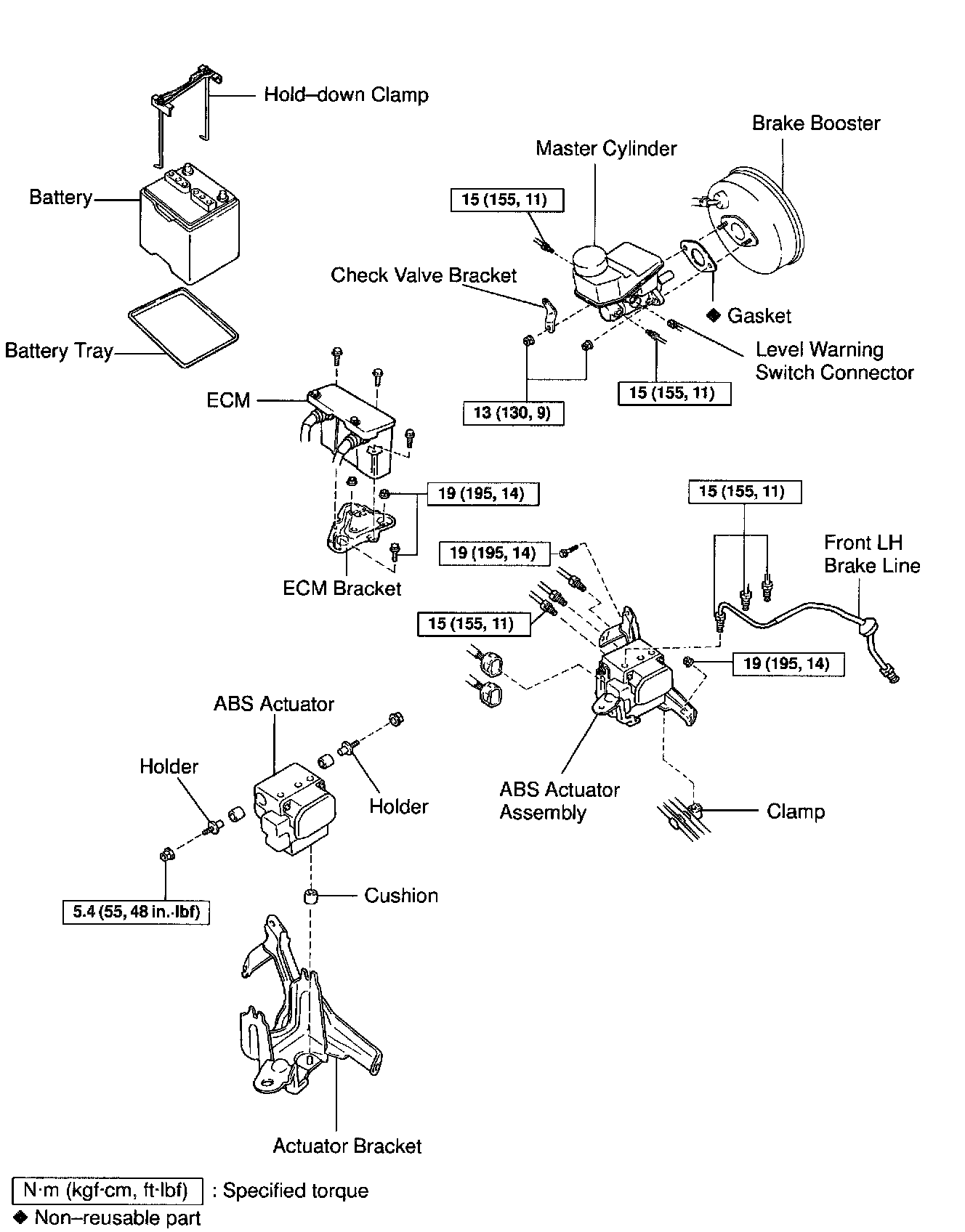

REMOVAL
1. REMOVE BATTERY
Remove the hold-down clamp, battery and battery tray.
2. REMOVE MASTER CYLINDER

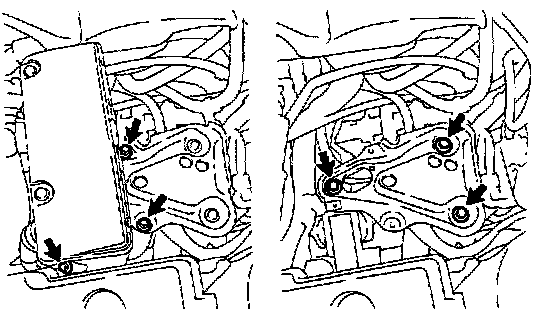

3. REMOVE ECM AND ECM BRACKET
a. Remove the 3 bolts, and move the ECM aside.
b. Disconnect the harness clamp, and remove the bolt, nuts and ECM bracket.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)

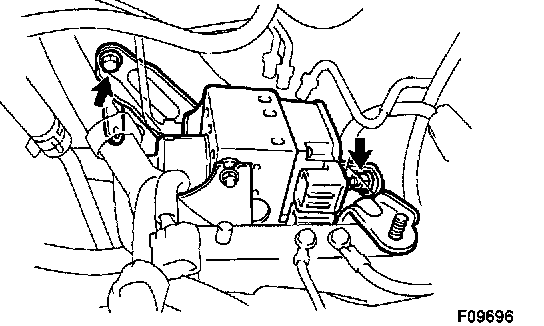

4. DISCONNECT 2 CONNECTORS

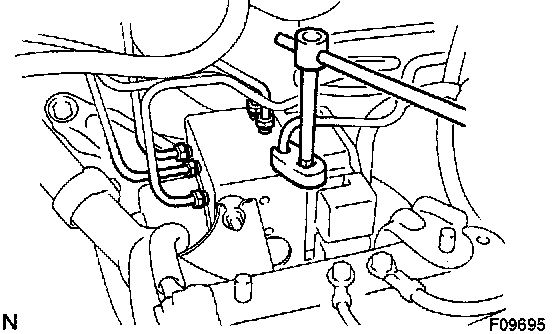

5. DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)





6. REMOVE ABS ACTUATOR
a. Disconnect the hose clamp from the actuator bracket under side.
b. Remove the bolt, nut and ABS actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
c. Remove the 2 nuts and ABS actuator from the actuator bracket.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
d. Remove the 2 holders and 3 cushions from the ABS actuator.

INSTALLATION
Installation is in the reverse order of removal.

HINT:
^ After installation, fill the brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
