ABS Light: Testing and Inspection

CIRCUIT DESCRIPTION
If the ECU detects trouble, it lights the ABS warning light while at the same time prohibiting ABS control. At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

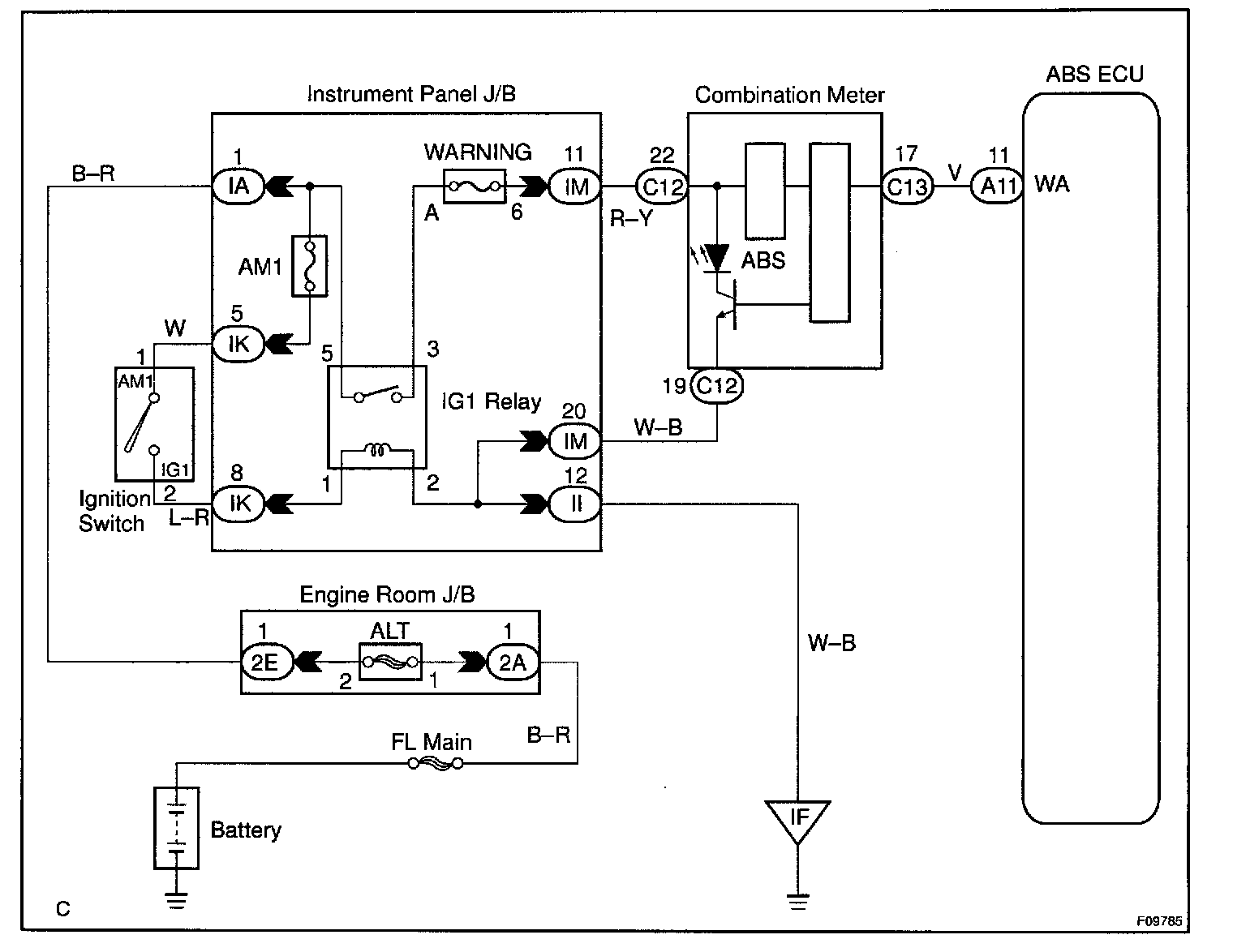

Wiring Diagram:

Steps 1 - 2:

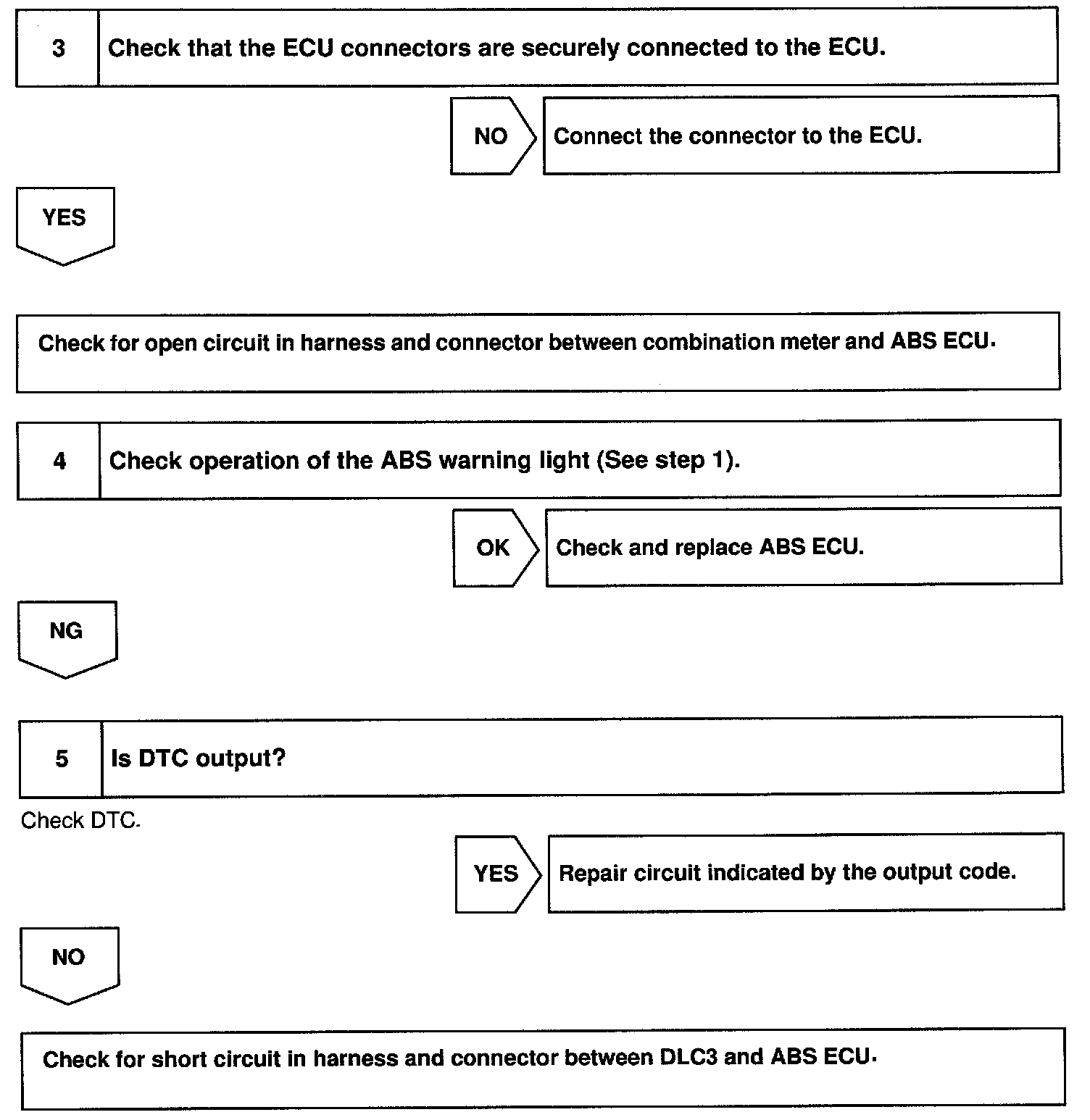

Steps 3 - 5:

INSPECTION PROCEDURE

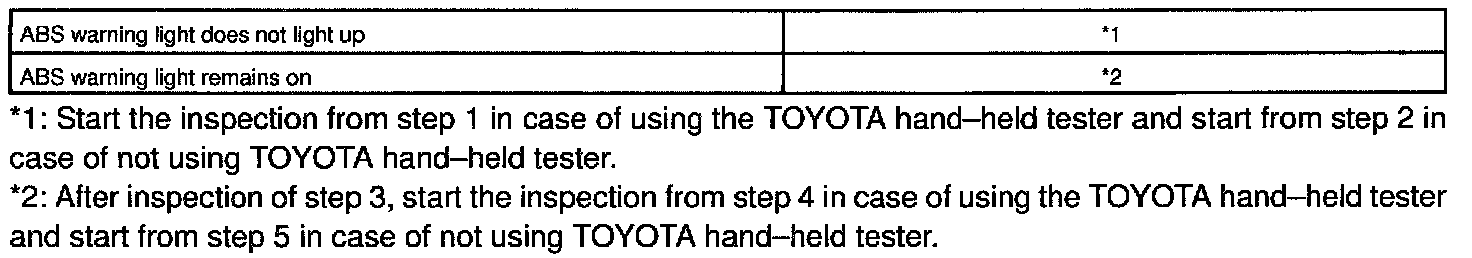

HINT: Troubleshoot in accordance with the chart for each trouble symptom.
