Connector Locations

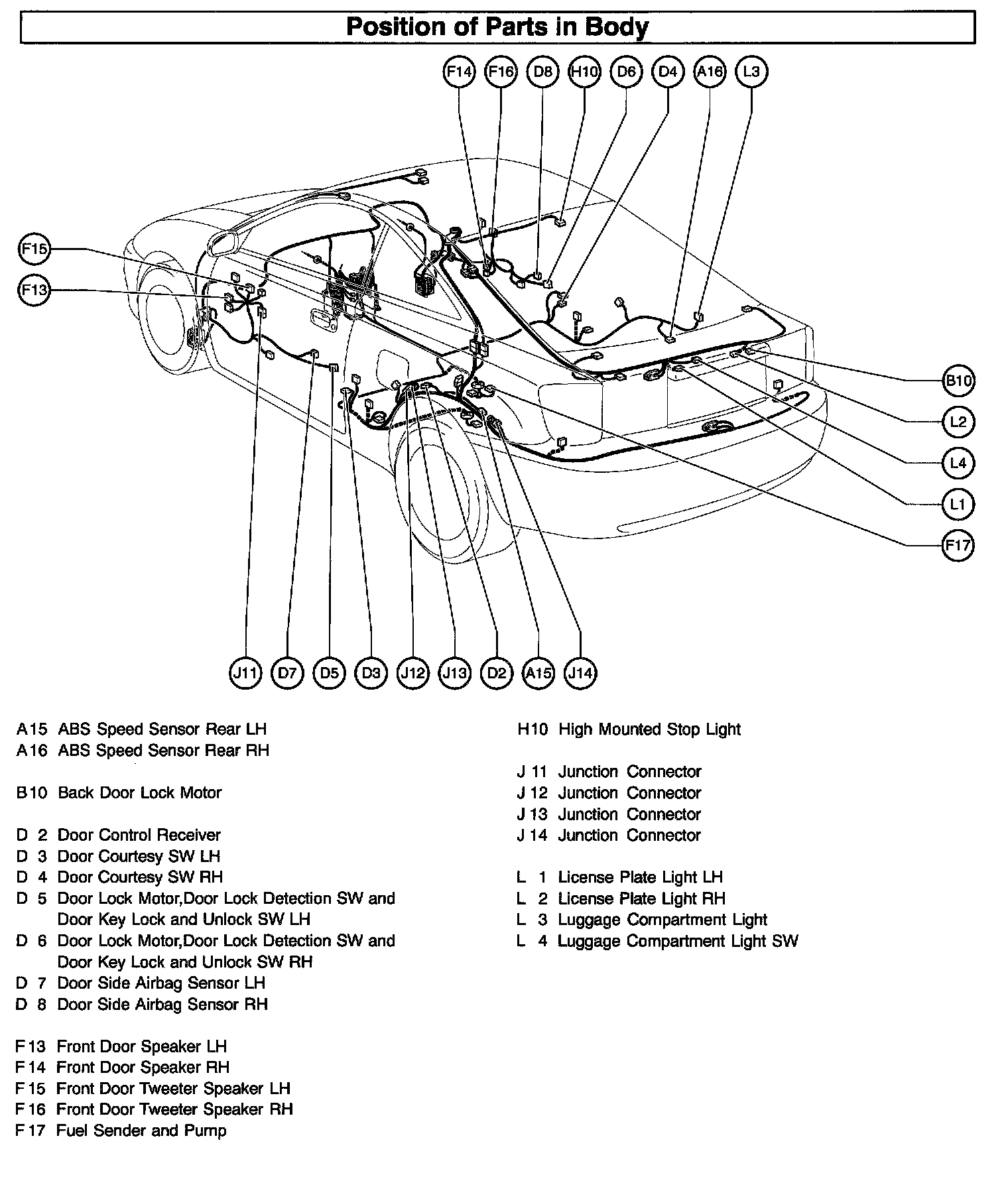

Position Of Parts In Body (Part 1):



Body Ground Points & Harness To Harness Connectors:
