Cruise Control System

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The actuator motor is operated by signals from the ECU. Acceleration and deceleration signals are transmitted according to changes in the Duty Ratio.

Duty Ratio




The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity.

Duty Ratio = A/(A+B) * 100(%)

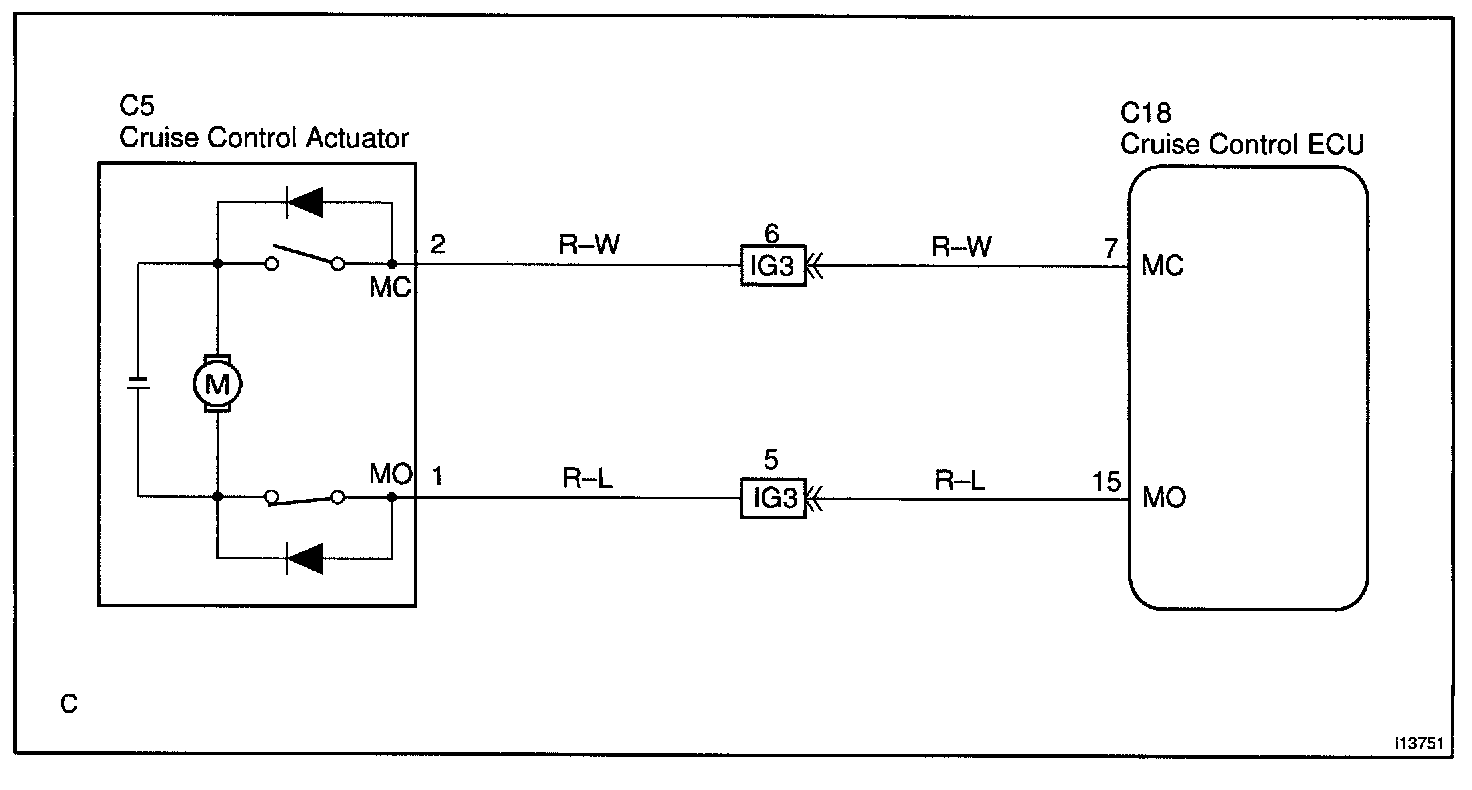

Wiring Diagram:

Steps 1 - 2:

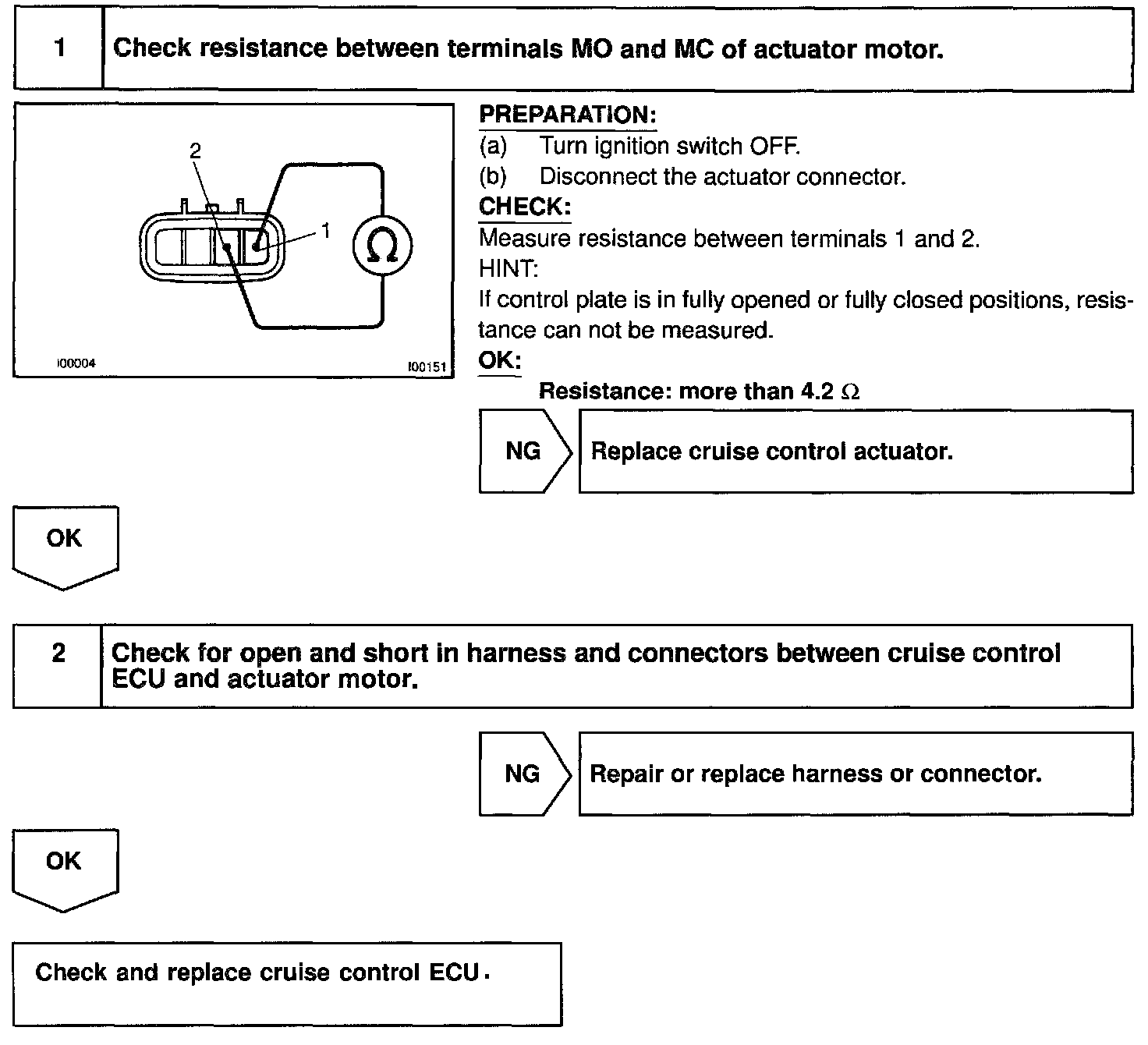

INSPECTION PROCEDURE
