Removal and Installation

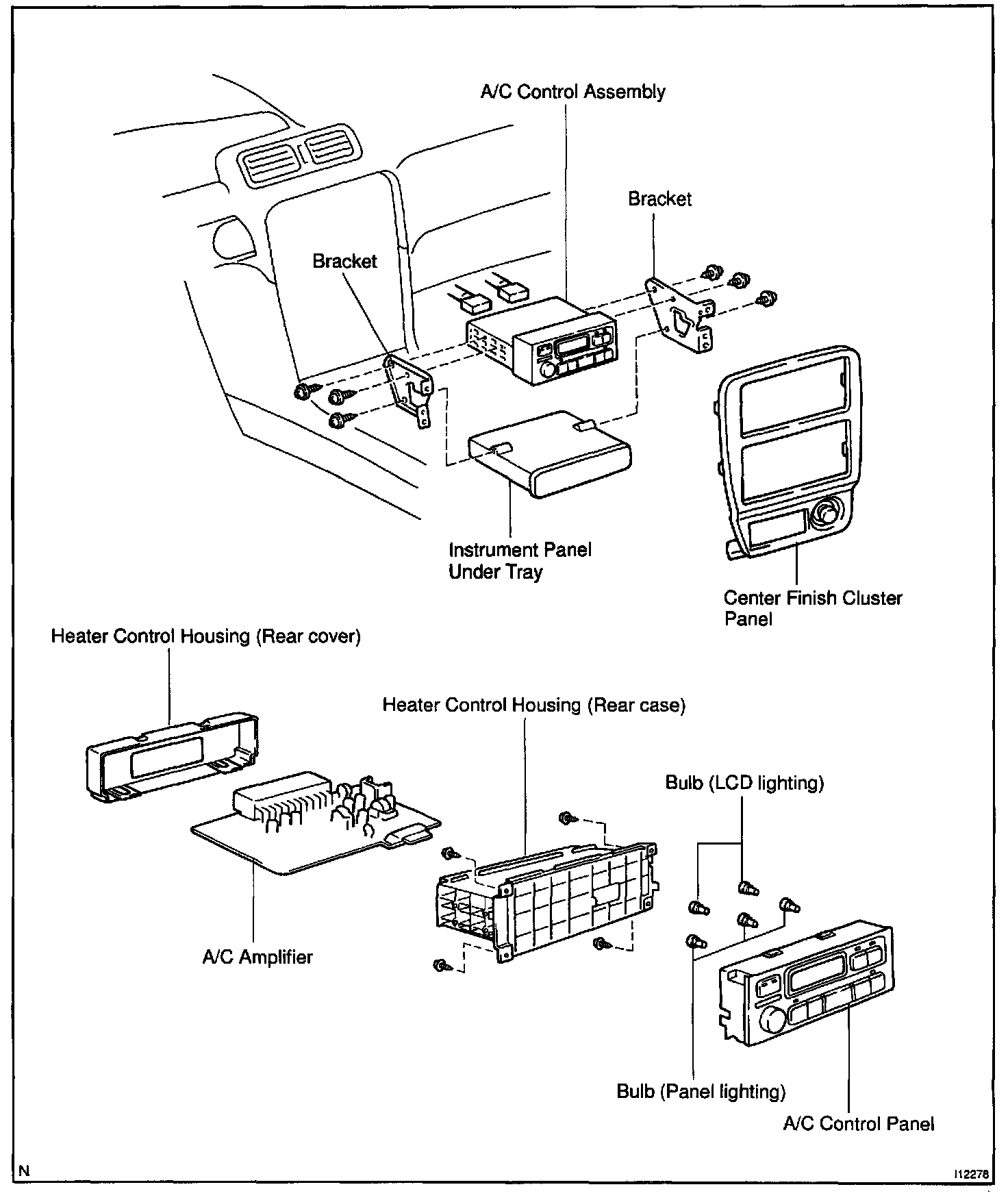

Air Conditioning Control Assembly (Auto A/C):

REMOVAL
1. REMOVE CENTER CLUSTER FINISH PANEL




2. REMOVE A/C CONTROL ASSEMBLY

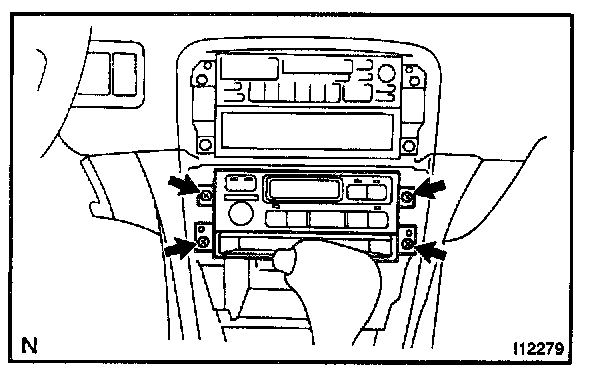

a. Remove the 4 screws and pull out the A/C control assembly with stereo opening cover then disconnect the connectors.

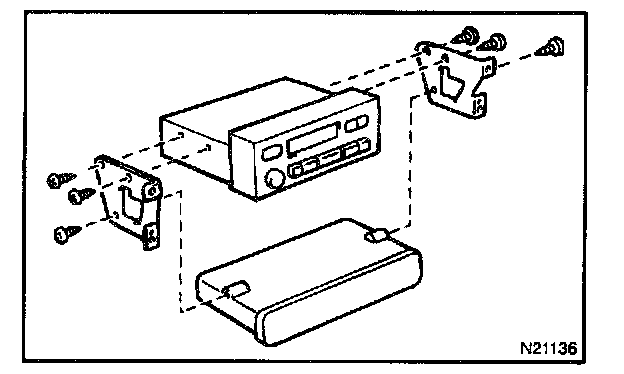

b. Remove the 6 screws and 2 brackets.
c. Separate the A/C control assembly and stereo opening cover.

INSTALLATION
Installation is in the reverse order of removal.
