Home
>>
Toyota
>>
2001
>>
Camry XLE Sedan V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
System Diagram
>>
Body
Body

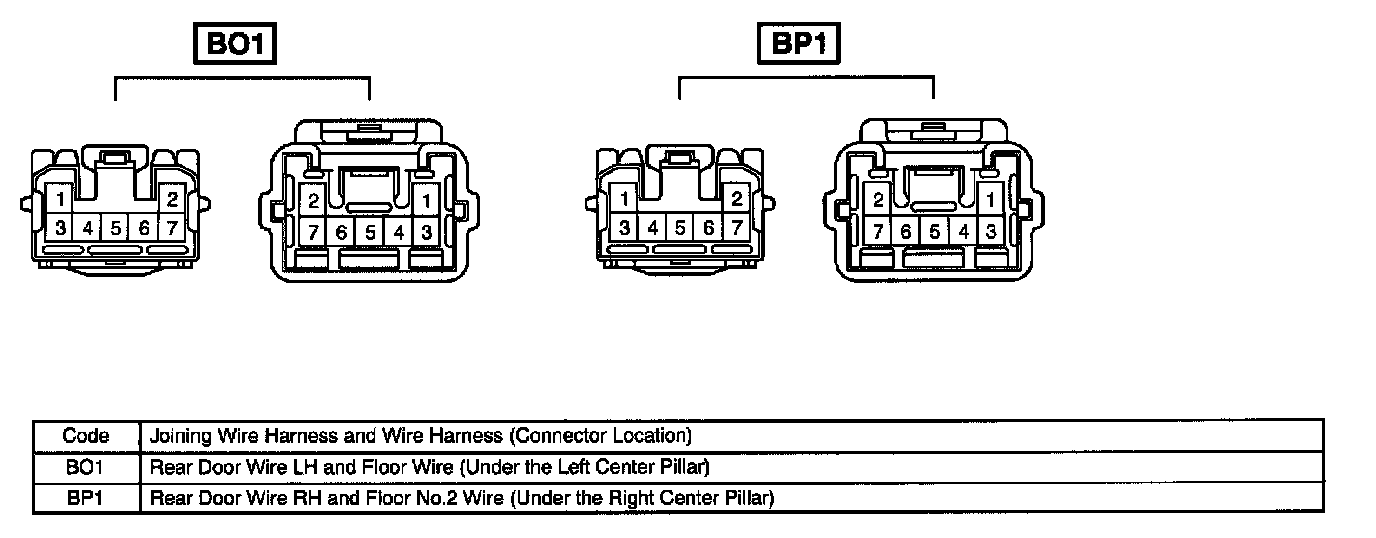

Wire Harness To Wire Harness Connectors (BO1, BP1):
