Tightening Specifications

MANUAL TRANSAXLE UNIT





Part 1 of 2





Part 2 of 2

MANUAL TRANSAXLE ASSEMBLY





Part 1 of 3





Part 2 of 3





Part 3 of 3





OIL PUMP

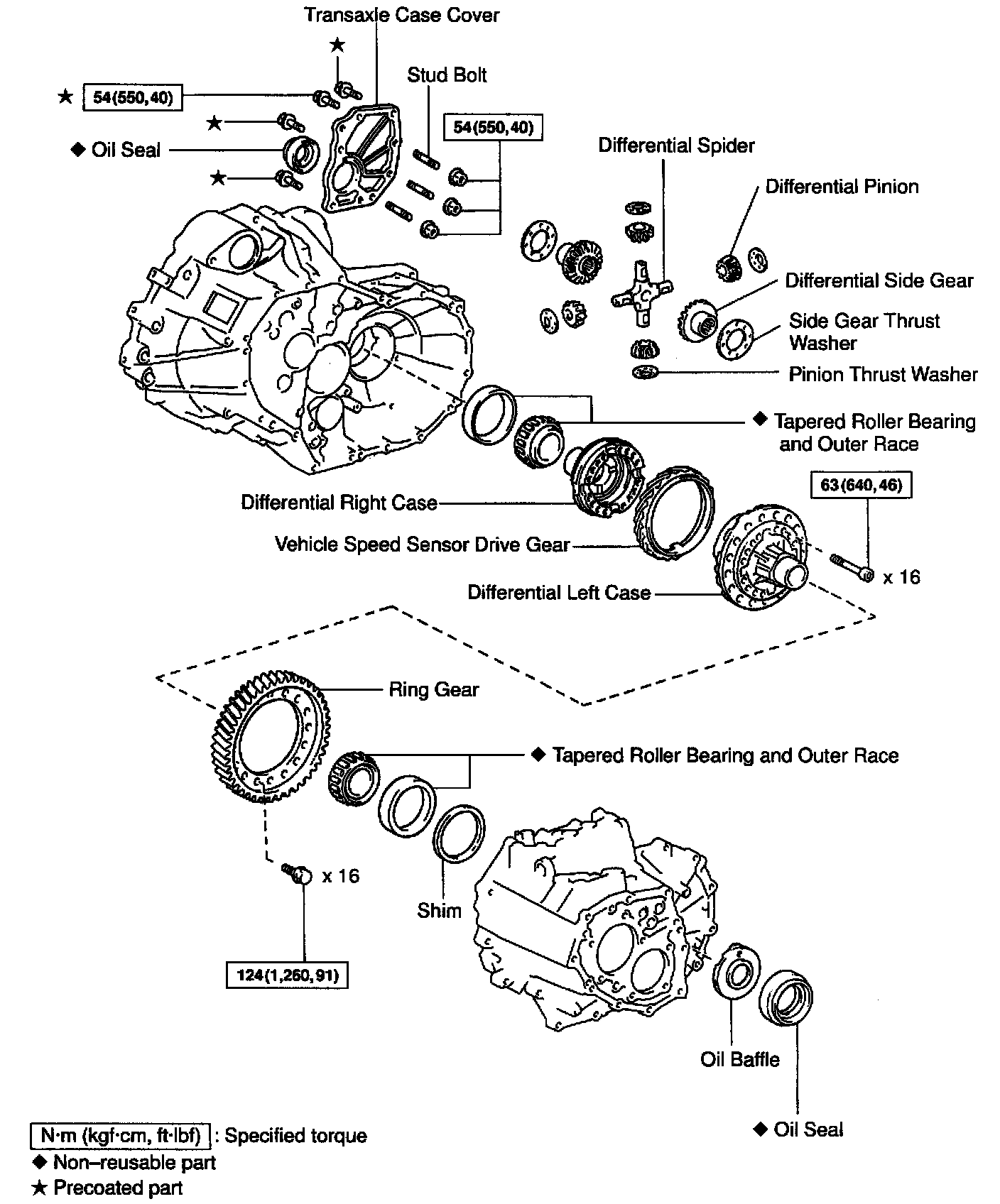

DIFFERENTIAL CASE





SHIFT LEVER AND CONTROL CABLE
