Power Source Current Flow Diagrams

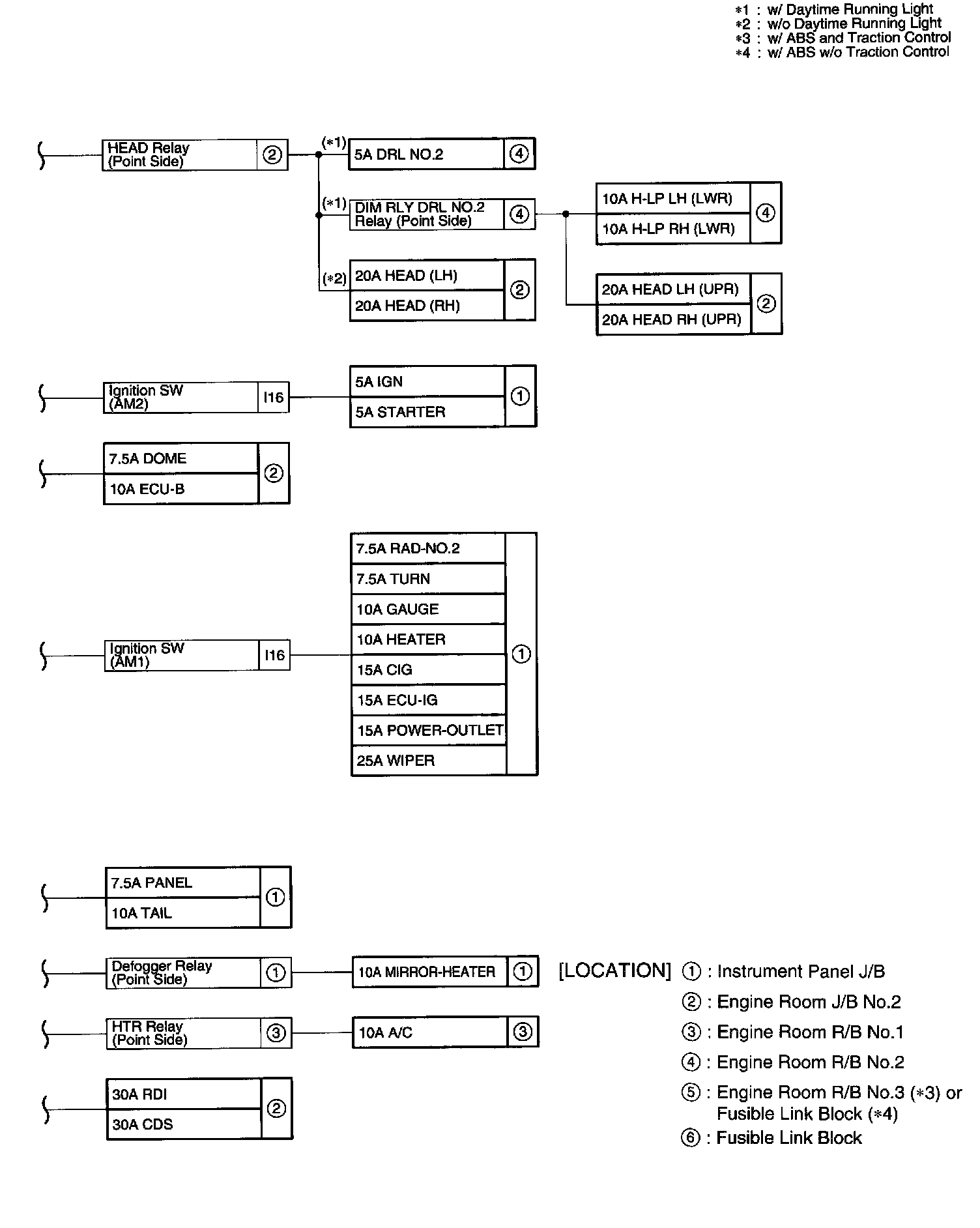

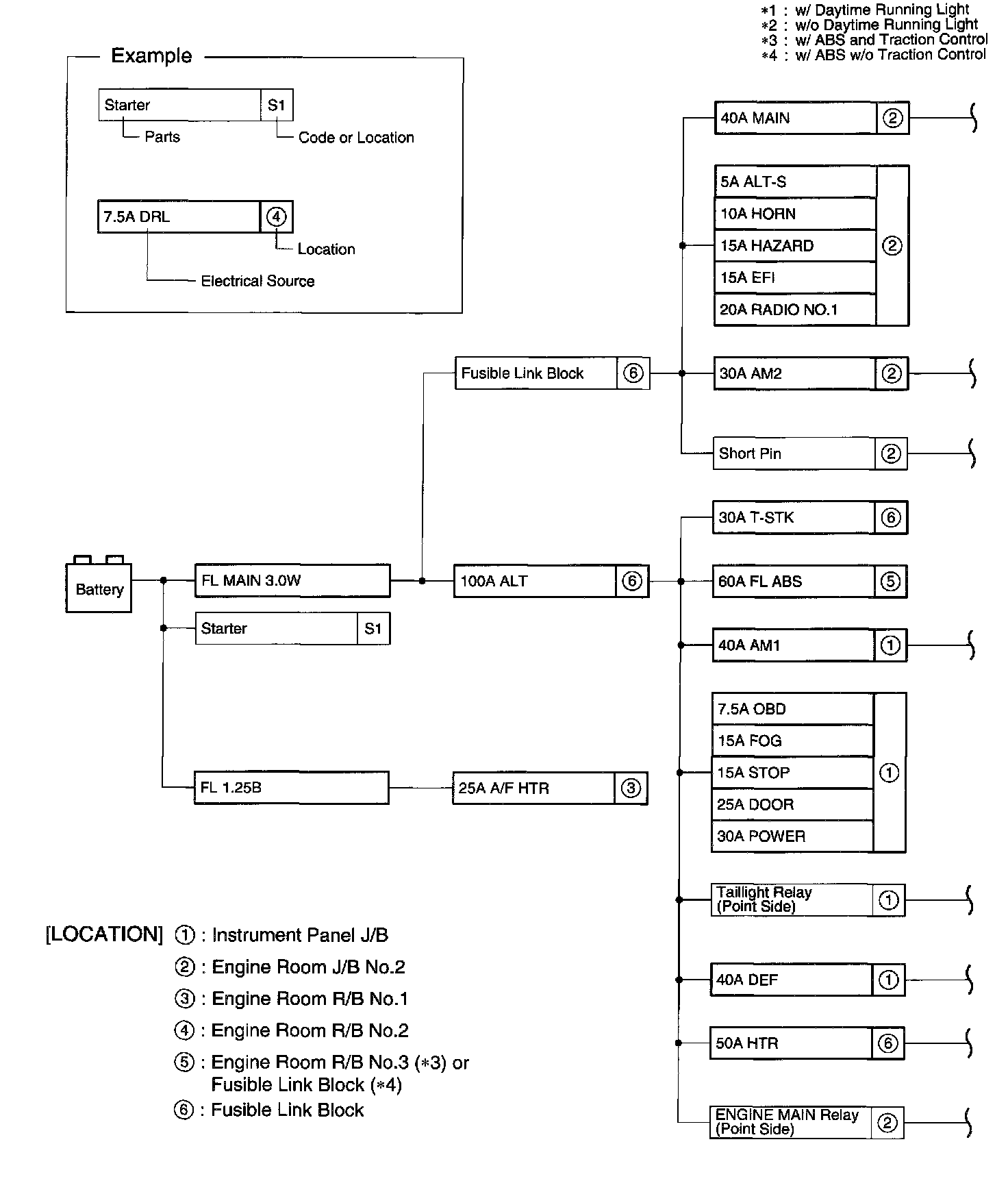

Power Source (Current Flow Chart) (Part 1):

Power Source (Current Flow Chart) (Part 2):

The chart shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other Parts.
