Home >> Toyota >> 2001 >> Camry Solara SLE V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Tightening Specifications >> Installation Torque Specifications

Installation Torque Specifications

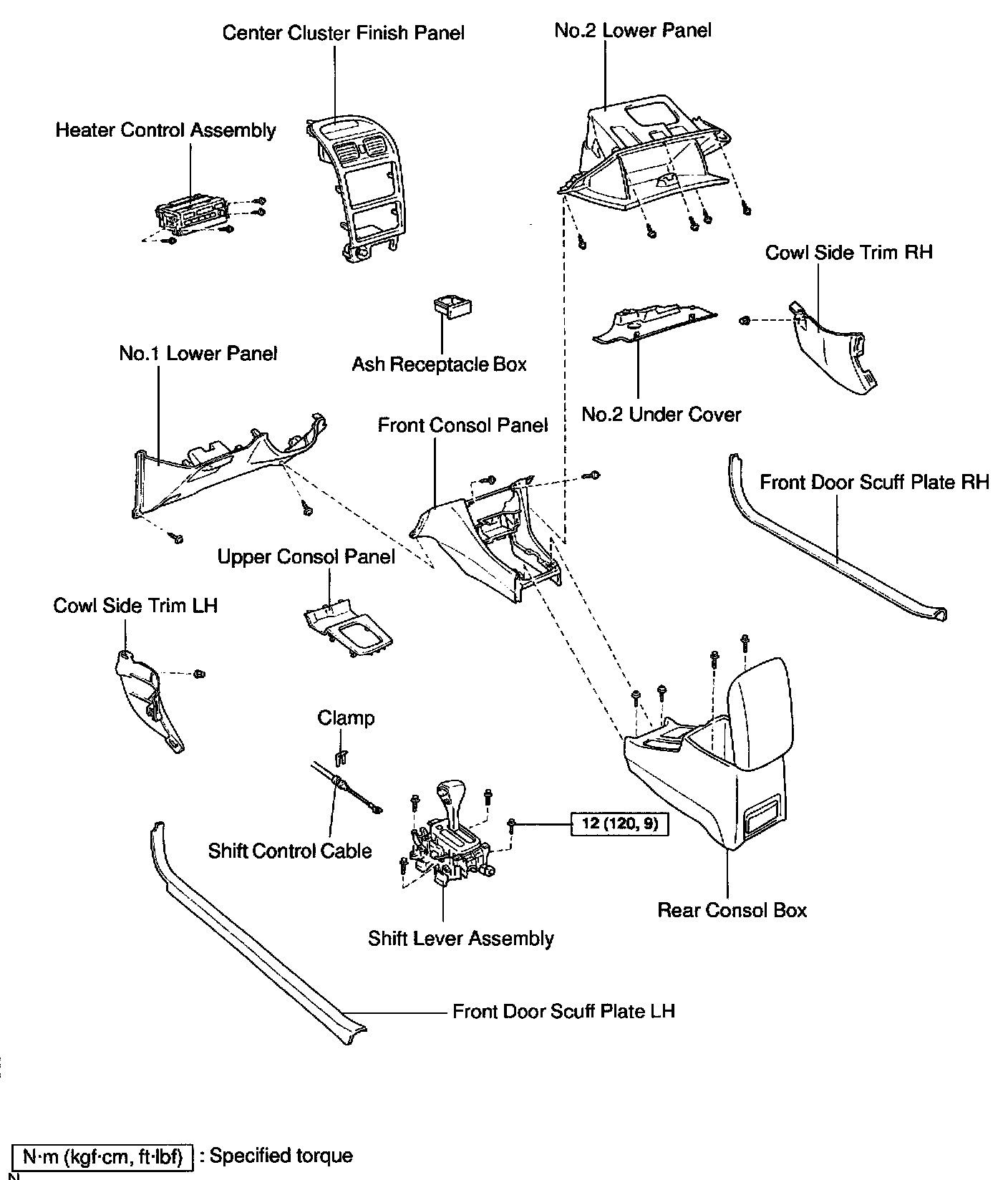

FLOOR SHIFT ASSEMBLY

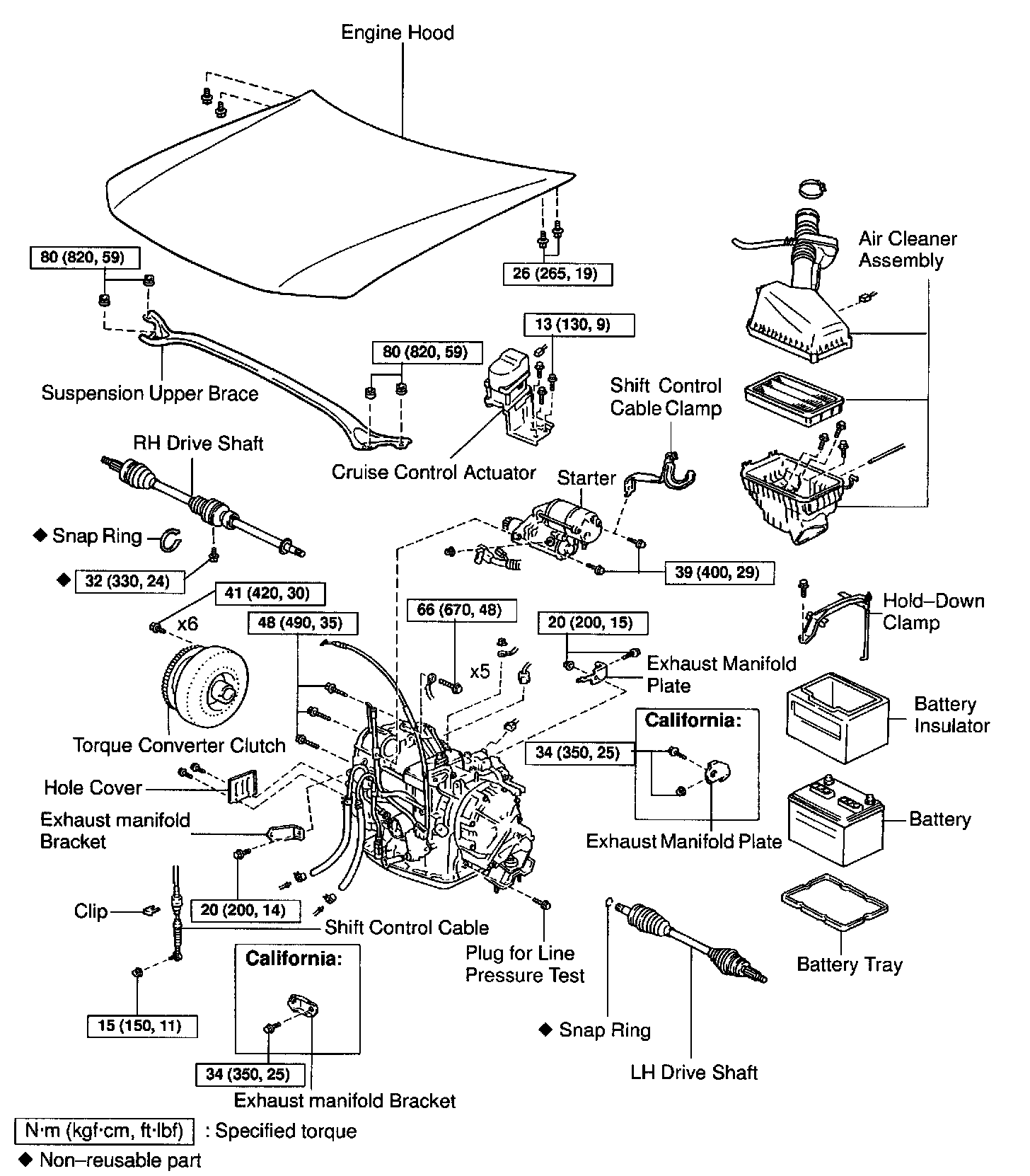

AUTOMATIC TRANSAXLE UNIT





Part 1 of 2





Part 2 of 2
