Camry Solara SLE V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
System Specifications
System Specifications

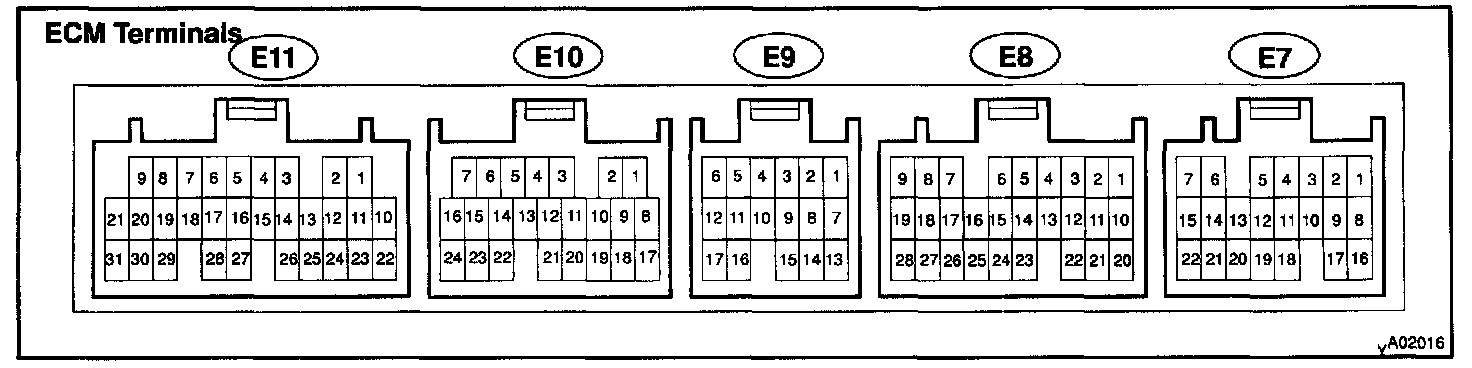

ECM - Connector View:

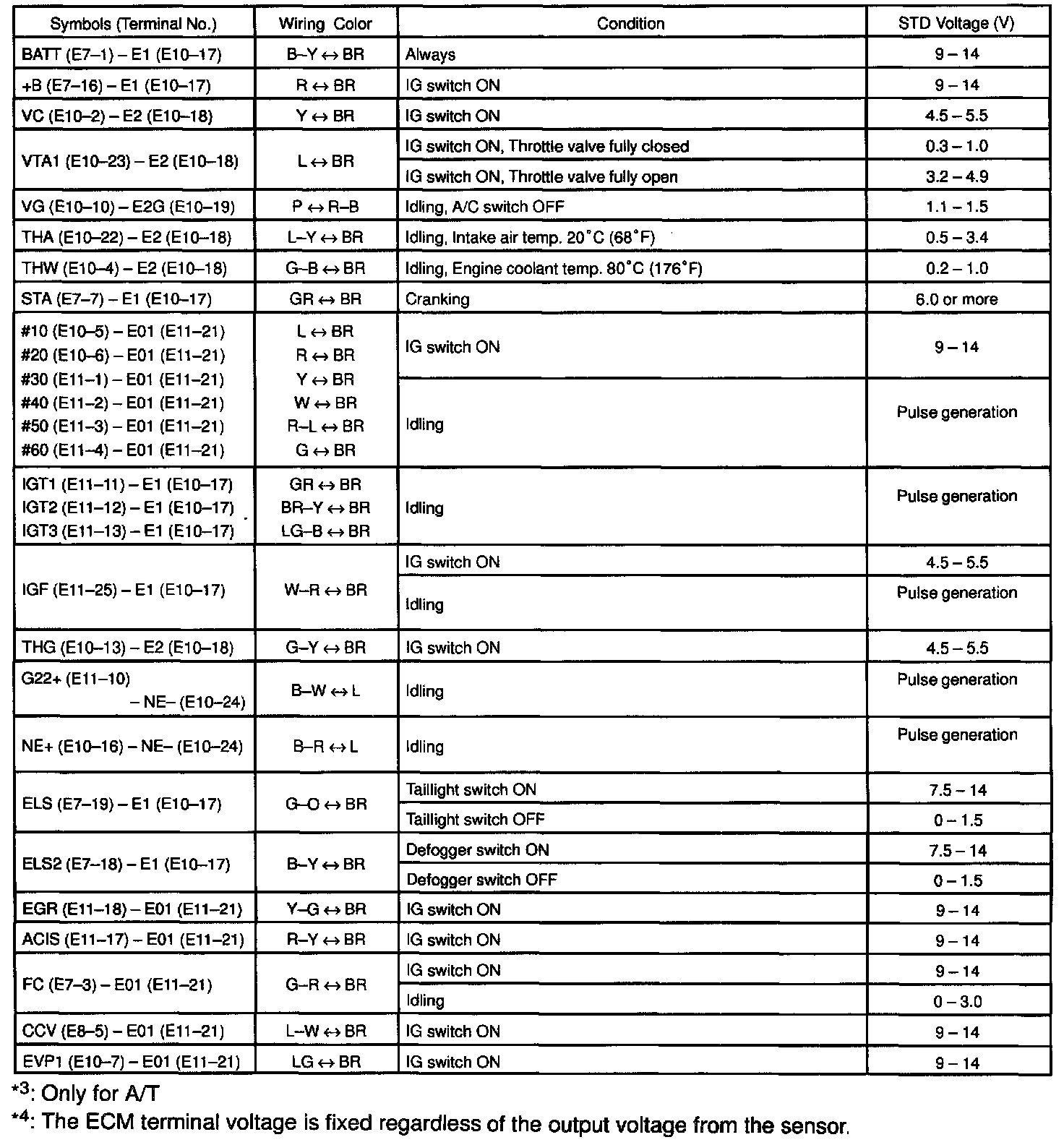

ECM - Pinouts (Part 1):
ECM - Pinouts (Part 2):
