Seat Belt Warning Relay: Testing and Inspection

INSPECT INTEGRATION RELAY OF SEAT BELT WARNING SYSTEM OPERATION

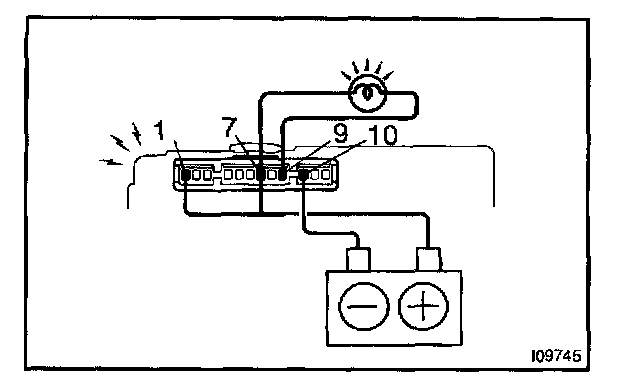

a. Connect the positive (+) lead from the battery to terminals 1 and 7.
b. Connect the terminal 7 to terminal 9 through the 3.4-W test bulb.
c. Connect the negative (-) lead from the battery to terminal 10.
d. Check that the bulb lights and the buzzer sounds for 4 - 8 seconds.
e. Return to step a.and operate the chime again.

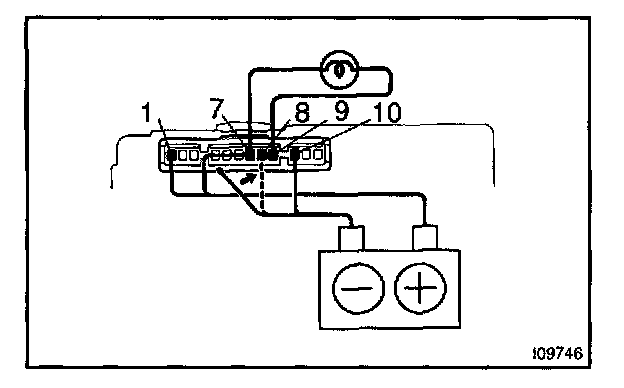

f. Connect the negative (-) lead from the battery to terminal 8.
g. Check that the buzzer stops sounding.

HINT: Check the buzzer within a period of 4 to 8 seconds.
If operation is not as specified, replace the relay
