Camshaft Position Sensor: Service and Repair

REMOVAL




REMOVE CAMSHAFT POSITION SENSOR
a. Disconnect the camshaft position sensor connector.

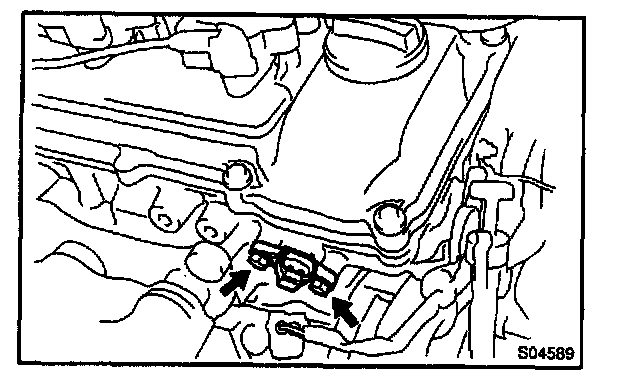

b. Remove the 2 bolts and camshaft position sensor.

Torque: 8 N.m (80 kgf.cm, 69 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
