Variable Induction Control Solenoid: Service and Repair

Acoustic Control Induction System (ACIS)

Acoustic Control Induction System (ACIS):

REMOVAL
1. DISCONNECT ACTUATOR VACUUM HOSE




2. REMOVE INTAKE AIR CONTROL VALVE
a. Remove the 4 nuts and disconnect the ground strap and cable.

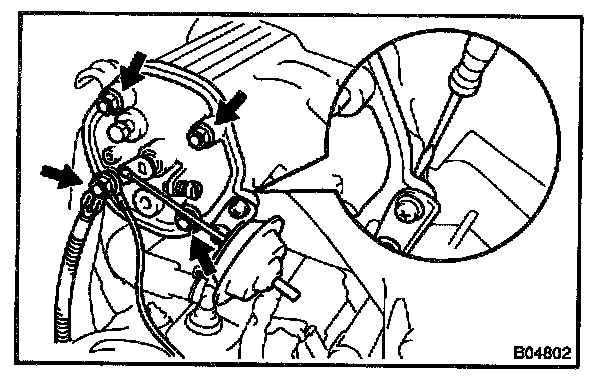

b. Remove the intake air control valve by prying a screwdriver between the intake air control valve and air intake chamber.
c. Remove the gasket.

INSTALLATION



1. INSTALL INTAKE AIR CONTROL VALVE

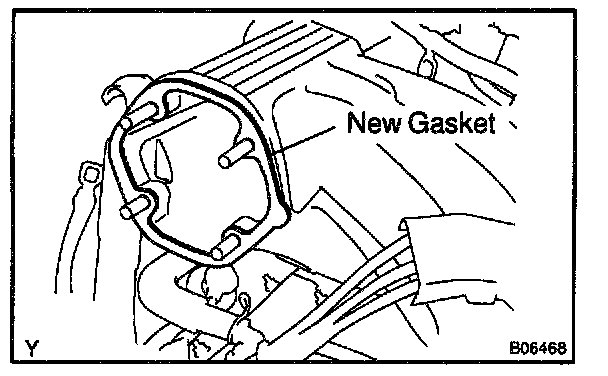

a. Install a new gasket to the air intake chamber.




b. Apply a light coat of engine oil to the rubber portions.

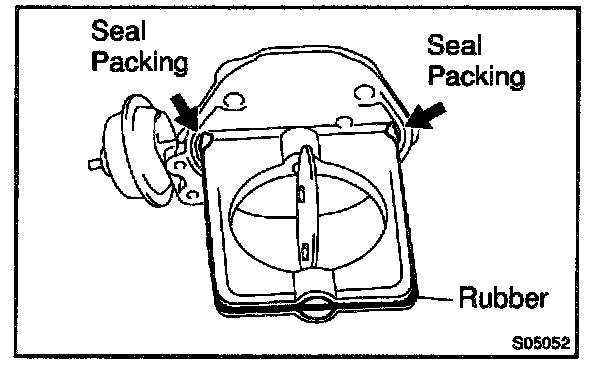

c. Apply seal packing to the positions of the intake air control valve shown in the illustration.
Seal packing: Part No 08826-0080 or equivalent

d. Install the intake air control valve, ground strap and cable with the 4 nuts.

Torque: 14.5 N.m (145 kgf.cm, 10 ft.lbf)

2. CONNECT ACTUATOR VACUUM HOSE
