Evaporative Emission Control Canister: Service and Repair

REMOVE CHARCOAL CANISTER ASSEMBLY
a. Disconnect the VSV connector for pressure switching valve.
b. Disconnect the vapor pressure sensor connector.
c. Disconnect the fuel hose from the vapor pressure sensor.
d. Disconnect the purge line hose, EVAP line hose and air inlet line hose from the charcoal canister.

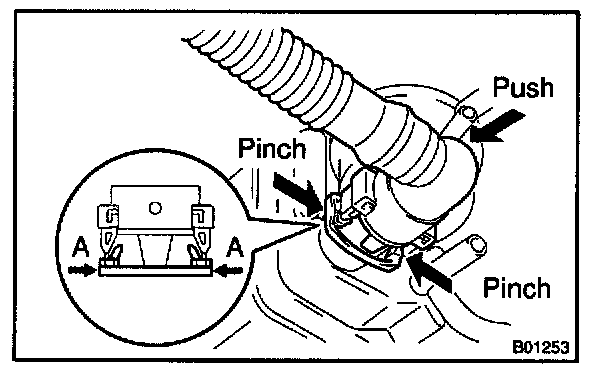

e. Disconnect the vent line hose from the charcoal canister.
1. Push the connector deep inside.
2. Pinch portion A.
3. Pull out the connector.

f. Remove the 2 charcoal canister mounting bolts.
g. Remove the vapor pressure sensor mounting bolt.
h. Remove the charcoal canister assembly.

REINSTALL CHARCOAL CANISTER ASSEMBLY
