Camshaft Position Sensor: Testing and Inspection

INSPECT CAMSHAFT POSITION SENSOR
a. Disconnect the camshaft position sensor connector.

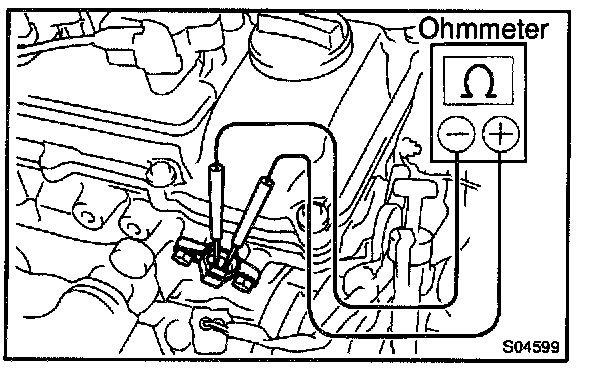

b. Using an ohmmeter, measure the resistance between terminals.
If the resistance is not as specified, replace the camshaft position sensor.
c. Connect the camshaft position sensor connector.
