Instrument Panel

Wire Harness To Wire Harness Connectors (IA1 - IG2):

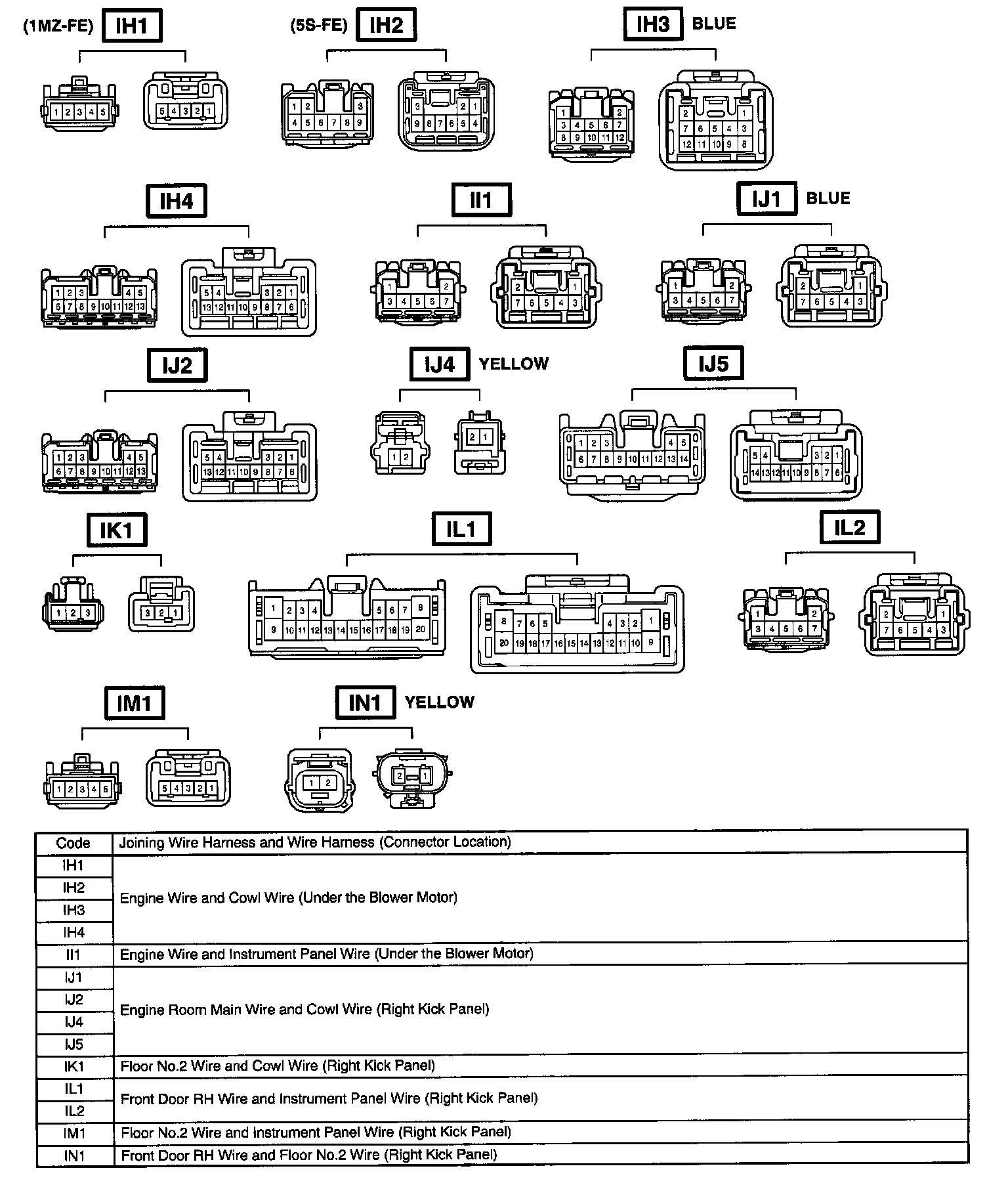

Wire Harness To Wire Harness Connectors (IH1 - IN1):

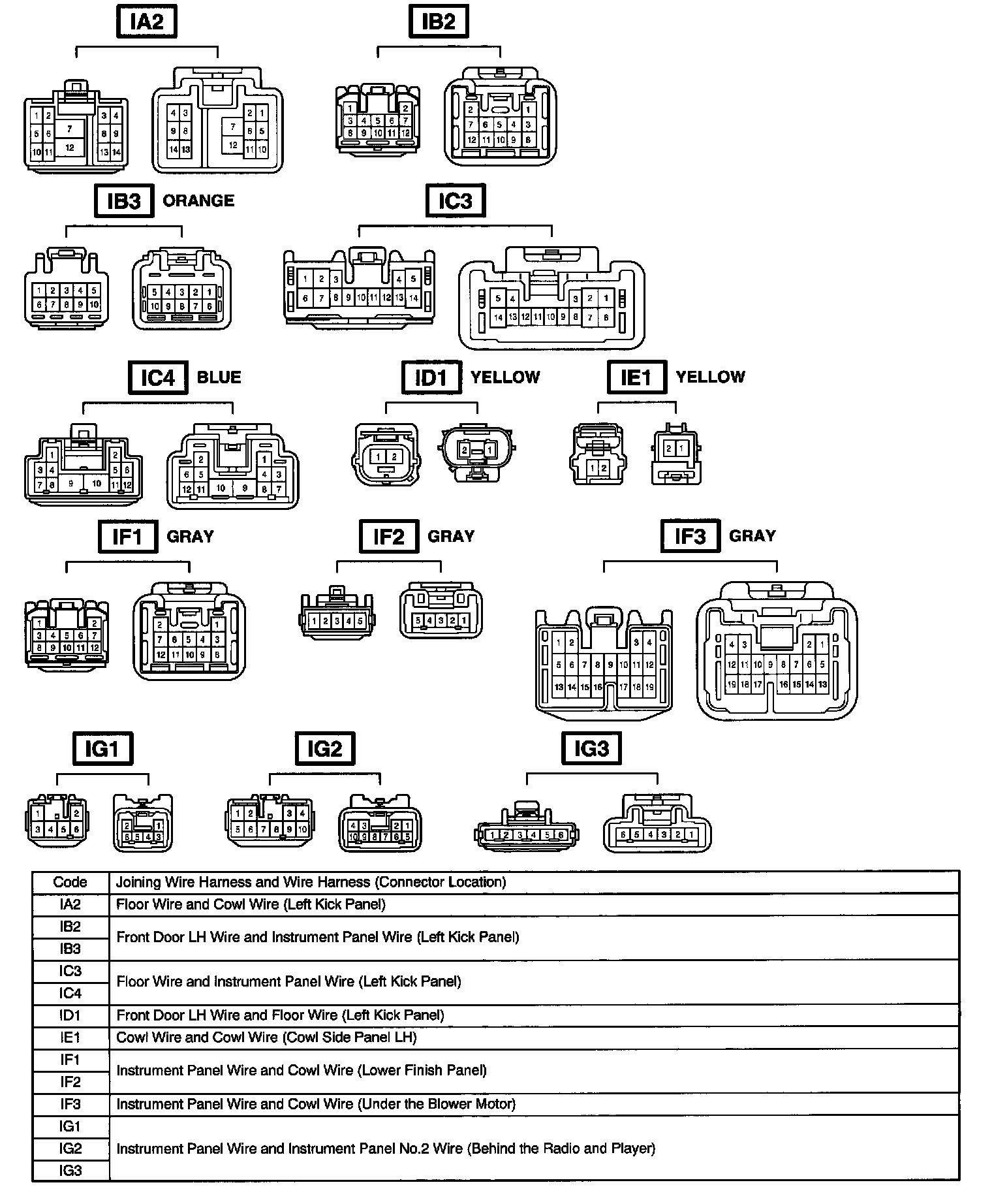

Wire Harness To Wire Harness Connectors (IA2 - IG3):

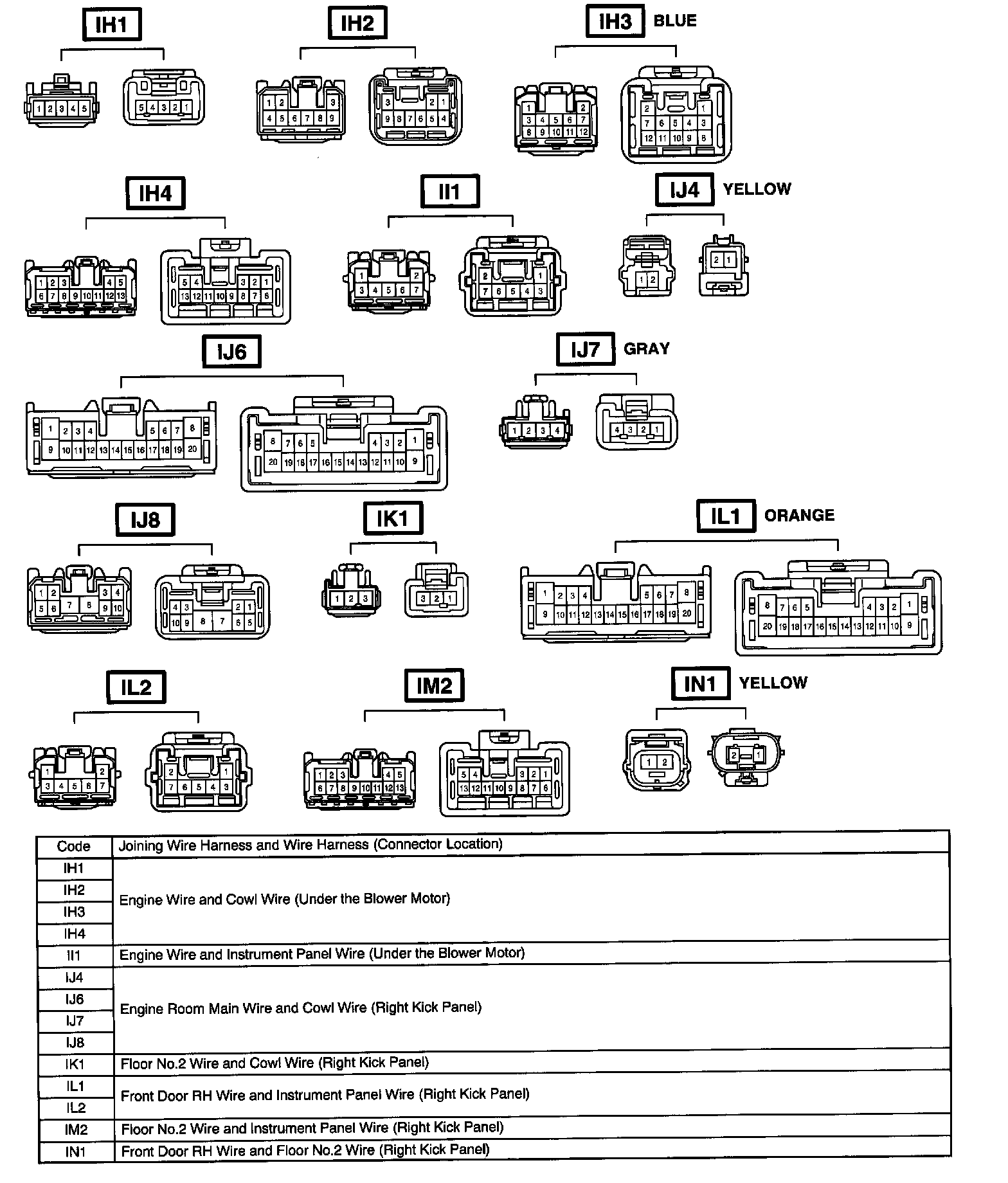

Wire Harness To Wire Harness Connectors (IH1 - IN1):
