Sensor Check (Test Mode)

SPEED SENSOR SIGNAL

In case of using TOYOTA hand-held tester:
Check the speed sensor signal.

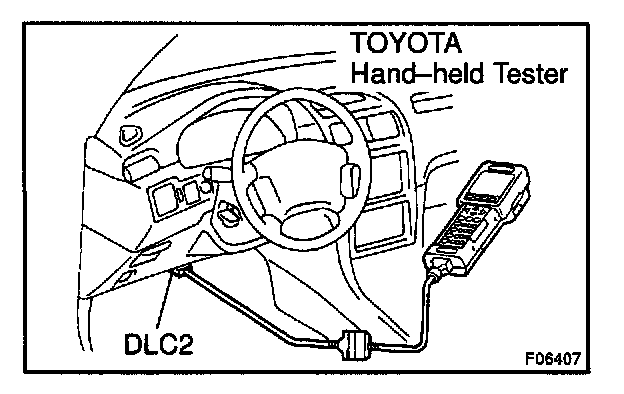

1. Connect the TOYOTA hand-held tester to the DLC2.
2. Start the engine.





3. Check that the ABS warning light blinks.

HINT: If the ABS warning light does not blink, inspect the ABS warning light circuit.

4. Drive the vehicle straight forward.

HINT: Drive the vehicle faster than 45 km/h (28 mph) for several seconds.

5. Stop the vehicle.
6. Read the DTC by following the prompts on the tester screen.
Please refer to the TOYOTA hand-held tester operator's manual for further details.
