Antilock Brake (ABS) System

CIRCUIT DESCRIPTION

If the ECU has detected a trouble, it lights the ABS warning light, prohibits the ABS control simultaneously.

At this time, the ECU records a DTC in the memory.
Connect terminals Tc and E1 of the DLG1 or DLC2 to make the ABS warning light blink and output the DTC.

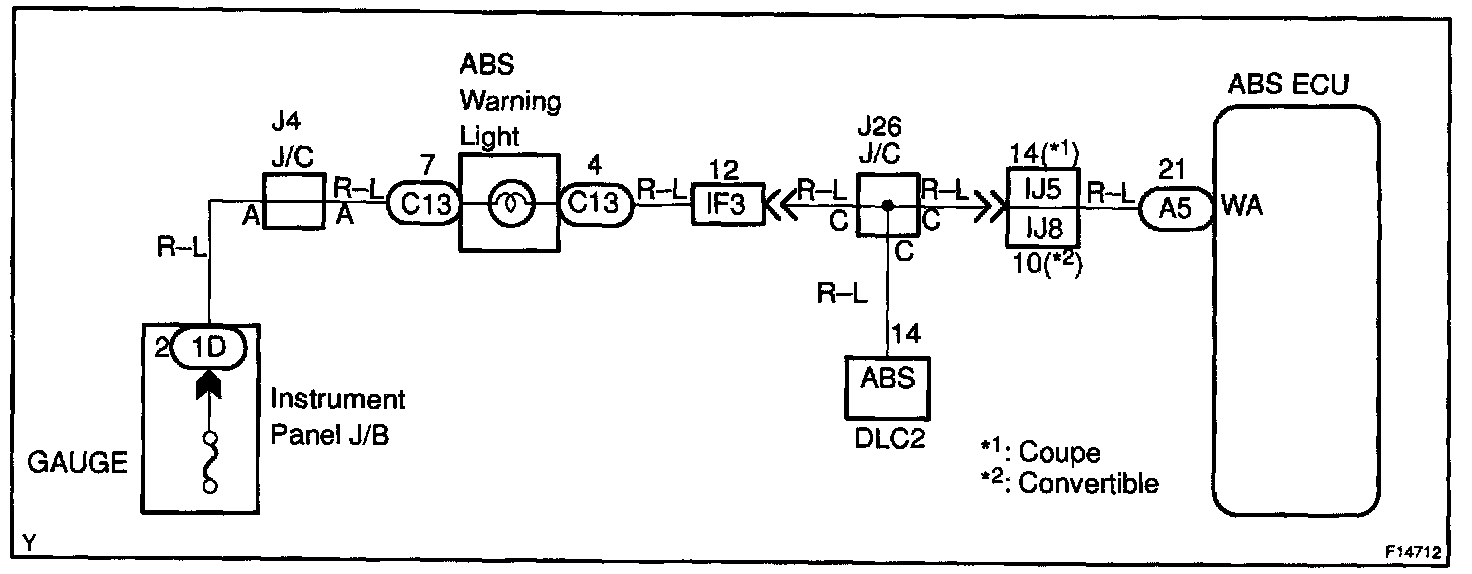

Wiring Diagram:

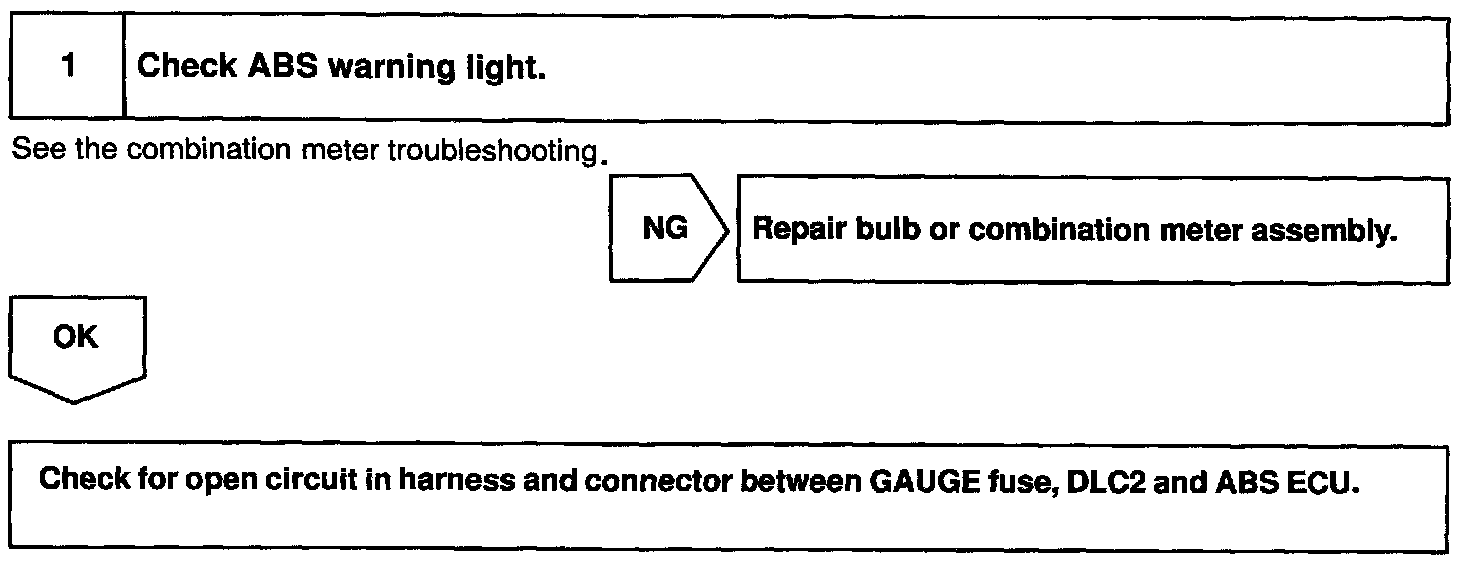

Step 1:

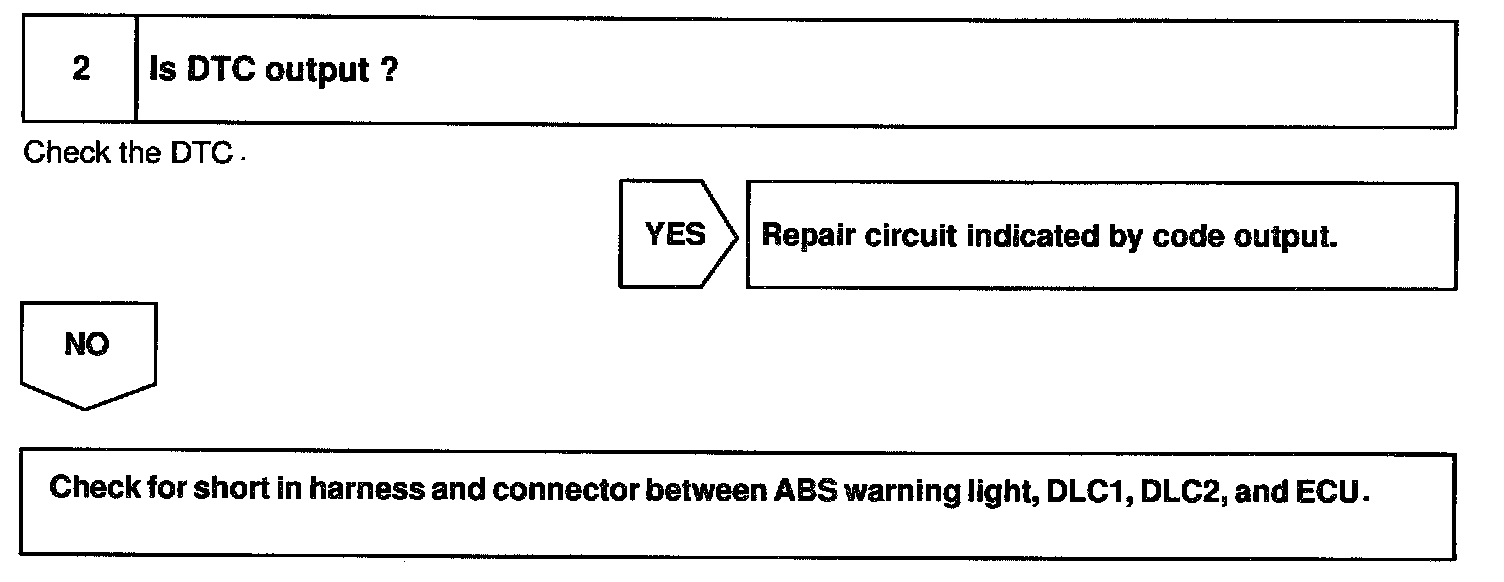

Step 2:

INSPECTION PROCEDURE

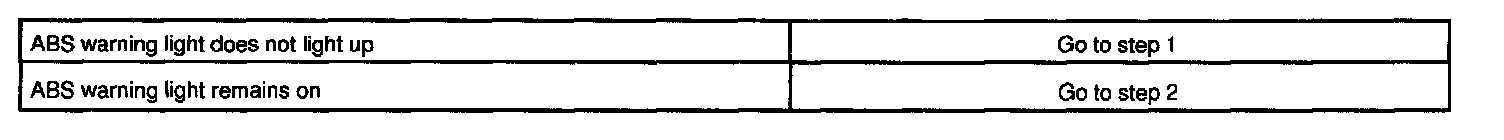

Troubleshoot in accordance with the chart for each trouble symptom.
