Power Seat Switch: Testing and Inspection

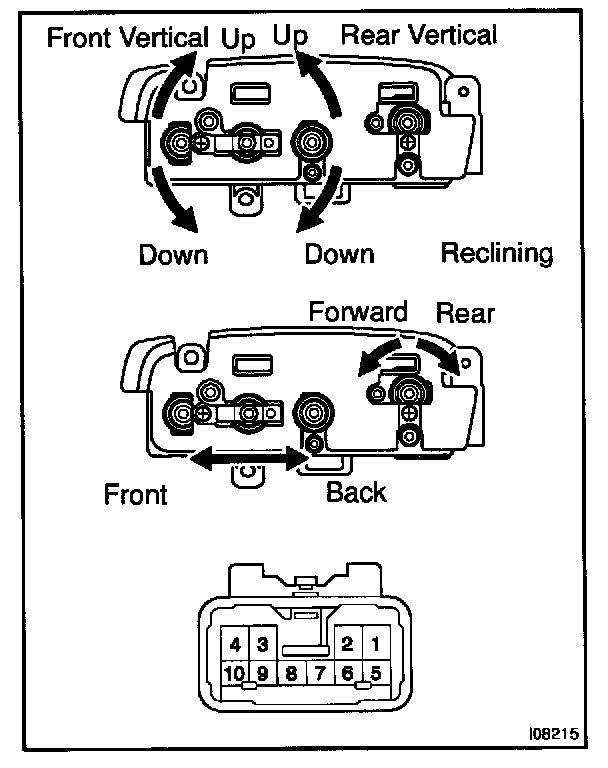

INSPECT DRIVER'S POWER SEAT SWITCH CONTINUITY

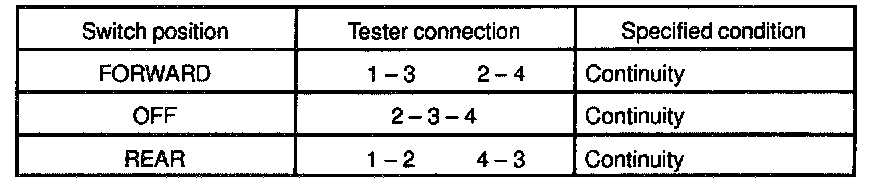

Slide switch:

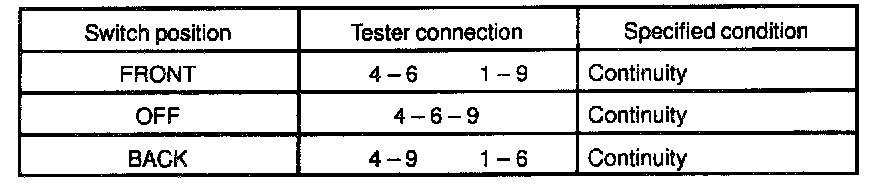

Front vertical switch:

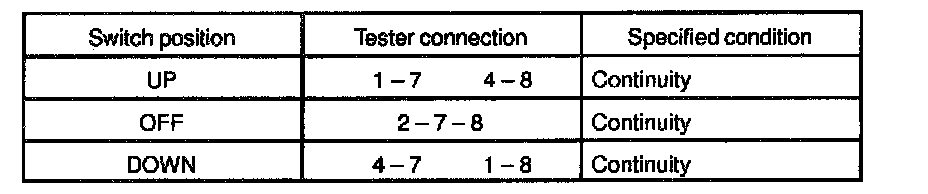

Rear vertical switch:







Reclining switch:
If continuity is not as specified, replace the switch.
